Product Details:
Payment & Shipping Terms:
|

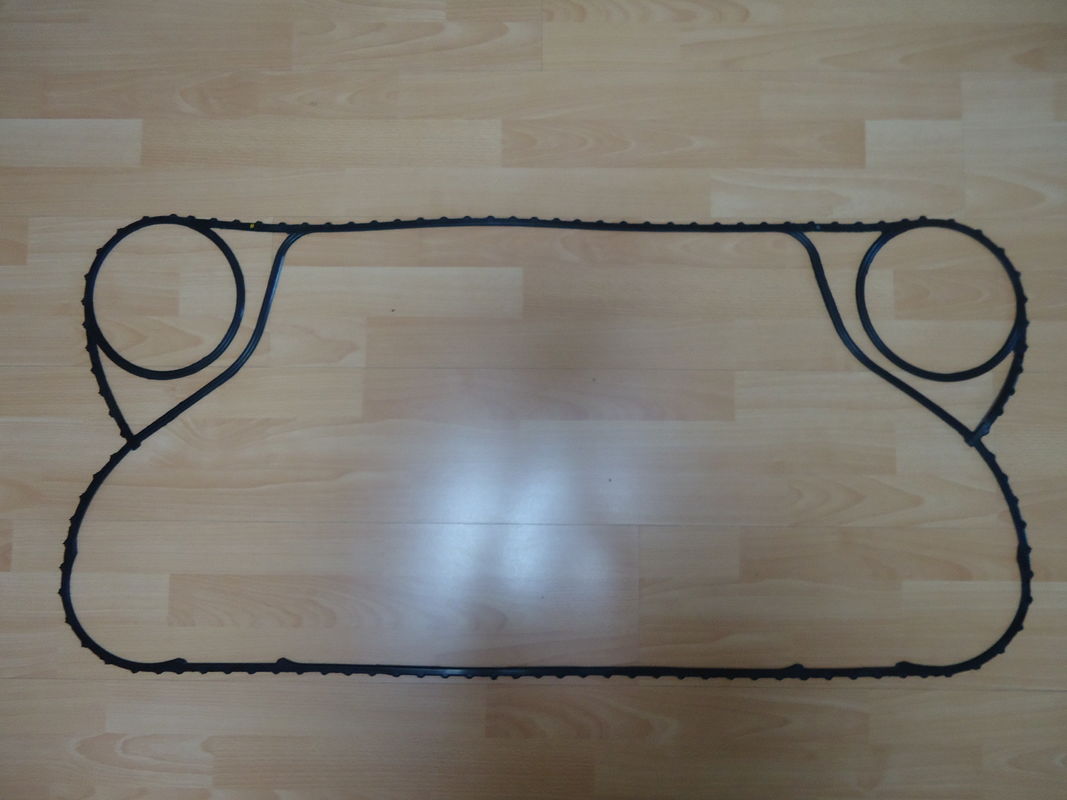

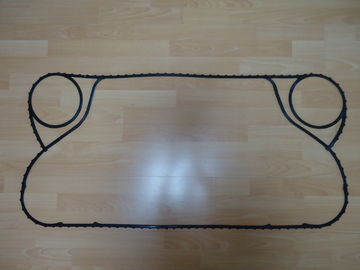

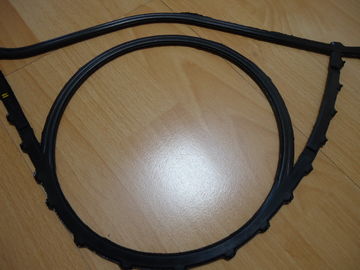

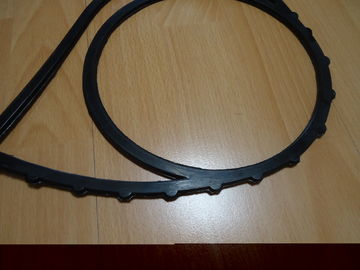

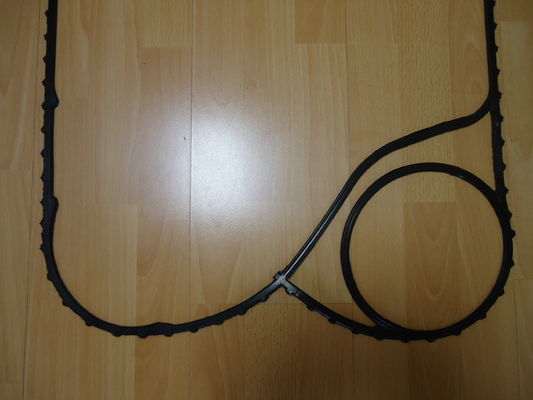

| Product Name: | Heat Exchanger Plate Heat Exchanger Rubber Pad Stainless Steel High Temperature EPDM PAR01 Factory Quality | Plates Material: | EPDM/HEPDM/FKM |
|---|---|---|---|
| Model Number: | AT805 | Structure: | Plate Heat Exchanger |
| Application: | Liquid To Liquid Heat Exchanging | Warranty: | One Year |
| Highlight: | mueller replacement parts,mueller hydrant parts |
||
Product Structure
Plate heat exchanger heat transfer plate is made of corrugated shape, in a certain interval, through the rubber gasket compression of detachable heat exchange equipment. Plate assembly, two sets of interwoven, board with board between the sealed rubber gasket to prevent fluid leakage and narrow net form flow channel formed between the two plate heat exchanger plate pressure into various waveform grain shape, to increase the heat exchange plate area and rigid and enables the fluid kick at low velocity of flow and heat transfer enhancement in order to achieve the effect. Plate of the four corners of the hole, has formed a fluid tube and drainage tube, the distribution of the two kinds of heat transfer medium flowing into separate flow, heat transfer through the plate.
| ITEM 1 | ITEM 2 | ITEM 3 | ITEM 4 |
|
Sigma 13 Sigma 25 Sigma 26 Sigma 35 Sigma 36 Sigma 37 Sigma 56 Sigma 64 Sigma 66 Sigma 76 Sigma 85 Sigma 96 Sigma 106 Sigma 114 Sigma 149 Sigma 156 Sigma M13 Sigma M26 Sigma M36 Sigma M56 Sigma M66 Sigma M76 Sigma M96 Sigma Star 45 Sigma 35 X Sigma X49 |
V2 V4 V8 V10 V13 V20 V28 V45 V60 V85 V100 V110 V130 V170
|
FP04 FP08 FP10 FP14 FP16 FP19 FP20 FP22 FP31 FP40 FP41 FP50 FP60 FP80 FP205
|
TL90PP TL90SS TL150PP TL150SS TL250PP TL250SS TL400PP TL400SS TL500PP TL500SS TL650PP TL650SS TL850PP TL850SS
|
Applications
Packaging Logistics
If you have any other questions,Please feel free to contact us!
