Product Details:
Payment & Shipping Terms:
|

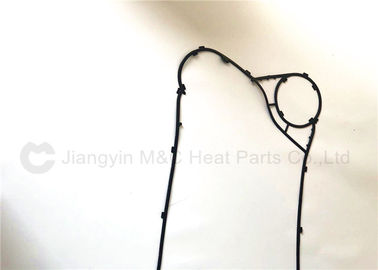

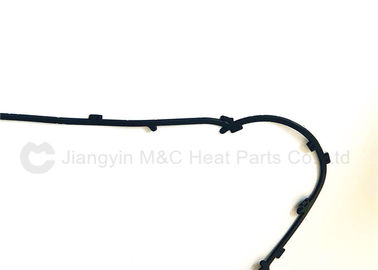

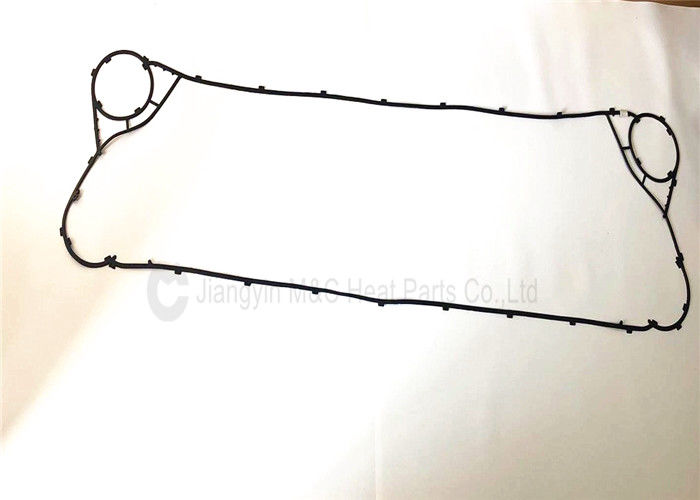

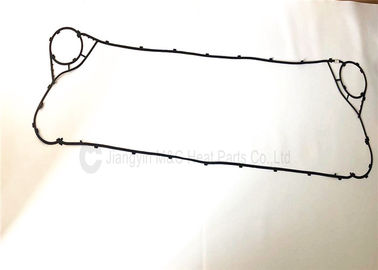

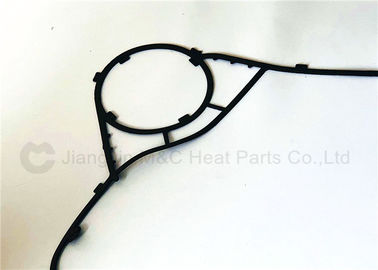

| Product Name: | Heat Exchanger Plate & Gaskets | Gaskets Material: | EPDM/HNBR/HEPDM/VITON/FKM |
|---|---|---|---|
| Application: | Heater Parts PHE Gasket | Warranty: | One Year |
| Plate Material: | Stainless Steel 316L/ 304, Titanium, SMO254, Nickel, Hastelloy | Available Fluid: | Water,Acid,Steam,High-temperature Mineral Water Etc |
| High Light: | neoprene gasket,phe gasket |
||
PHE Principle
Flat plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids.This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. This high heat transfer efficiency for such a small physical size has increased the domestic hot water(DHW) flow rate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water.Larger commercial versions use gaskets between the plates.
Inspection
| Gasket Material | Temperature(℃) | Fluid |
| Viton/FKM | -5 ---------+180 | Acid,Alkali Fluid |
| HNBR | -15--------+160 | High-temperature mineral water/oil, High-temprature water |
| NBR | -15--------+110 | Water,Sea water, Mineral smoke water |
| EPDM | -25-------- +170 | Hot water, steam,Acid, Alkali |
Our Service
1. Inquiry and consulting support.
2. Sample testing support.
3. Visit our Factory.
After-sales Service
1. Training how to install the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
Payment and Shipping
Payment
Standard payment terms: 100% in advance.
Pay 30% deposit in advance, 70% balance before shipment.
More payment terms could be provided (T/T, WESTERN UNION)
Shipping
Delivery time: 5-8 working days after payment receipt confirmed (based on actual quantity)
Packing: standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
