| Product Name: | Heat Exchanger Plate & Gaskets | Gaskets Material: | NBR, HNBR,EPDM,VITON |
|---|---|---|---|
| Type: | Plate Heat Exchanger With Gaskets | Application: | Heater Parts |
| Packing: | Wooden Case Or According To Your Request | Size: | 426*1279mm |
| Centre To Centre Dimension: | 261*1113mm | Gasket Thickness: | 3.45mm |
| High Light: | high temperature gasket,rubber gasket sheet |
||

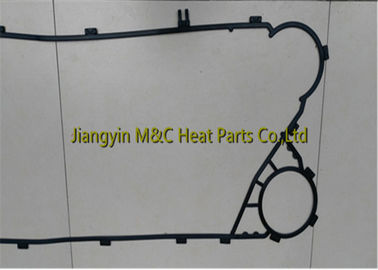

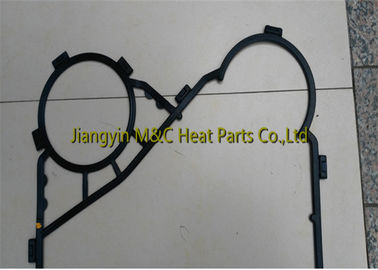

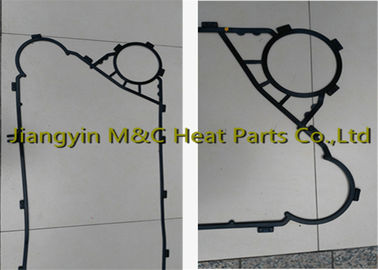

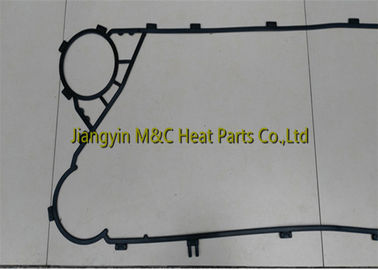

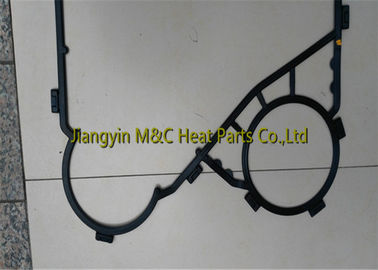

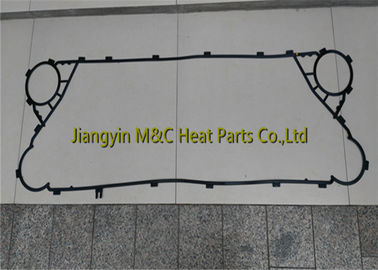

NT100M Heat Exchanger Gaskets outside size 426*1279mm for lubricating oil cooler
NT100M Product Description
Flat plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. The high heat transfer efficiency for such a small physical size has increased the domestic hot water (DHW) flow rate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water. Larger commercial versions use gaskets between the plates.
| Plate Material | SS304 316L SMO254 Titanium |
| Gasket Material | NBR:(applicable temp -15~+120℃) |
| HNBR:(applicable temp -15~+140℃) | |
| EPDM:(applicable temp -25~+150℃) | |
| HEPDM:(applicable temp -25~+170℃) | |
| Viton/FPM:(applicable temp -5~+180℃) | |
| NEOPREKE:(applicable temp -5~+130℃) | |
| VNQ:(applicable temp -65~+250℃) | |
| Thickness of plate | 0.5mm/0.6mm |
