Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Plate & Gaskets | Gaskets Material: | NBR, HNBR,EPDM,VITON |
|---|---|---|---|
| Type: | Plate Heat Exchanger With Gaskets | Application: | Heater Parts |
| Certification: | ISO9001:2008 | After-sales: | Engineer Service At Any Time |
| Highlight: | gasket replacement,rubber gasket sheet |
||

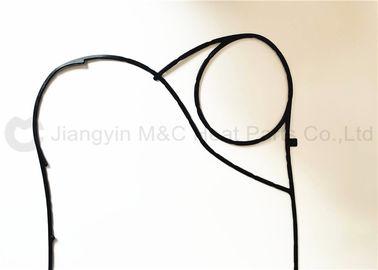

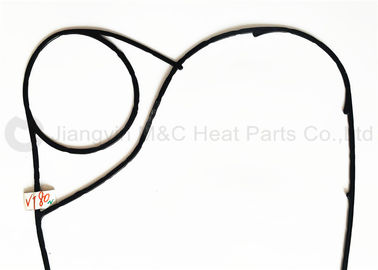

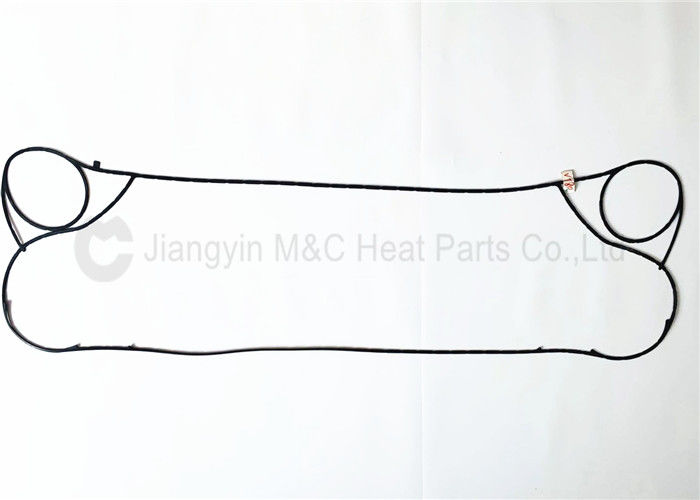

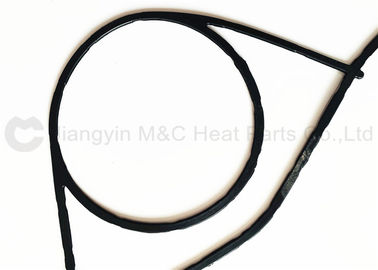

Flexible Plate Heat Exchanger Parts 1.6-2.5Mpa Design Pressure VT80
Product Description
| Plate Material | Suitable for fluid |
| 304 or 316L | Clean water, river water, edible oil, mineral oil |
| Ti, Ti-Pd | Sea water, salt water, salt |
| 20Cr, 18Ni, 6Mo (254SM0) | Dilute sulfuric acid, sparse salt solution, inorganic solution |
| Ni | High temperature, high concentration caustic soda |
| C276, D205, B2G | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Graphite | Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid |
.
| Seal Material | Temperature | Suitable for fluid |
| NBR | -15C°to +110C° | Water, seawater, mineral oil brine |
| EPDM | -25C°to +140C° | Hot water, steam, acid, alkali |
| HNBR | -15C°to +160C° | High temperature mineral oil, high temperature water |
| Viton/FKM | -5C°to +200C° | Acid, alkali, fluid |
Technical Parameters
Design pressure: 1.6-2.5Mpa
Design temperature: -20C°-200C°
The material of the plate and the material of the gasket are flexibly selected according to the process conditions used
Application Industry
Delivery
Packing Details : Each wrapped in plastic wrap and then packed in a wooden box. (Plate heat exchanger & gasket)
Delivery Details : Normally 7-15 days, it depends on actual quantity and the sizes of the order.
