Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Gaskets | Material: | NBR/EPDM/SILICONE/VITON |
|---|---|---|---|
| Application: | PHE Parts | Shape: | Flat Gasket |
| Dimension: | Centre To Centre: 620mm*150mm | Transfer Area: | 0.12㎡ |
| Highlight: | plate heat exchanger parts,plate heat exchanger gasket replacement |
||
Flat Heat Exchanger Gaskets , Plate Heat Exchanger Parts H12 Cost Efffective
Product Details

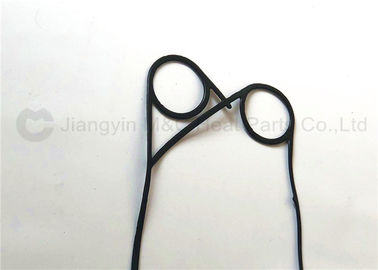

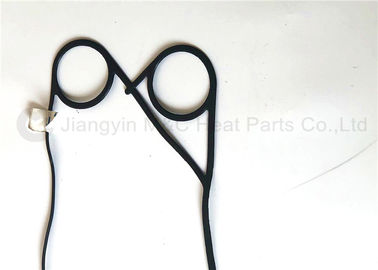

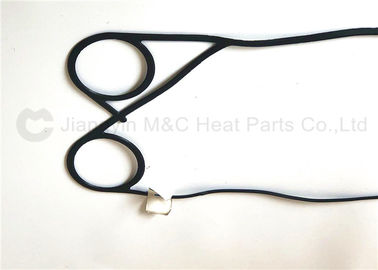

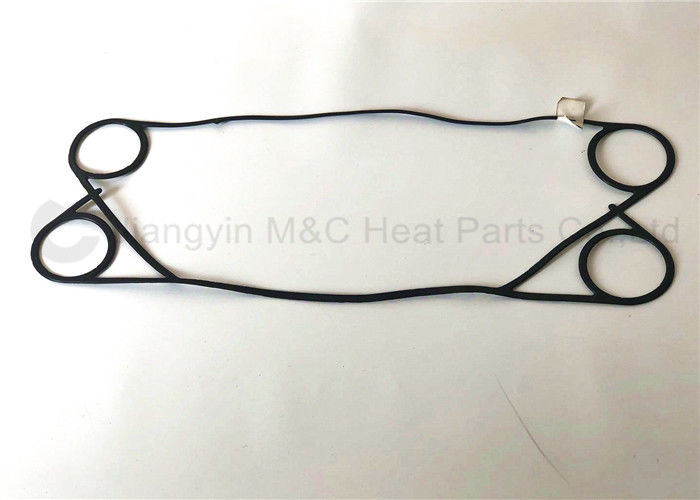

The gasket of the plate heat exchanger mainly serves to seal between the heat exchange plates. The materials are: nitrile rubber, EPDM rubber, fluorine rubber, etc. Different rubbers are used according to different media. The rubber pad is flexible, which is good for sealing and easy to disassemble! Each pad is designed according to the shape of each heat exchanger plate, which has a very good sealing!
We could supply you PHE and Spare Parts with high quality and super-low price!
Company Feature
1. focus on plate heat exchanger
2. pay attention to client's require
3. reply massage at the first time
4. delivery in time
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Material & Application
| Plate Material | Suited Liquid Kinds |
| Stainless Steel(AISI304,AISI314) | Pure water,Normal water,Edible Oil,Mineral Oil |
| Ti/Ti-pd | Sea water,Saline water,Mineral water |
| Hastelloy alloy | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid |
| Nickel | High-temp and concentration caustic Soda |
| SMO254 | Acid,Dilute Sulphuric |
| Gasket material | Operating Temperature | Suited Liquid Kinds |
| NBR | -15--- +120℃ | Water,Sea water,Mineral Oil,Salty Water |
| EPDM | -25--- +140℃ | Hot water,Steam,Acid,Caustic |
| Fuorine Rubber | -5--- +200℃ | Ammonia,Mineral Oil,and Lubricant |
| Silicon Rubber | -65--- +180℃ | Food,Oil,Adipose alcohol |
| Frame Material | Standard | Special purpose |
| Carbon steel | Stainless steel | |
| Interface | Q235/304/316L | Hastelloy alloy/Ti |
