Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Plate | Material: | NBR/EPDM/SILICONE/VITON |
|---|---|---|---|
| Application: | PHE Parts | Packing: | Standard Export Carton |
| Warranty: | 1 Year | Color: | Black |
| High Light: | APV Heat Exchanger Parts,plate heat exchanger gasket replacement |
||
Plate Heat Exchanger Description
Plate heat exchanger is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt,nut,lock washer and frame foot. It is device for liquid of two different’s temperture that is going to heat transfer. It is suitable for all industry, such as chemical engineering,chemical fertilizer,meicine,metallurgy,machinery,mine,printing and dyeing and so on.
Production introduction
Basic information

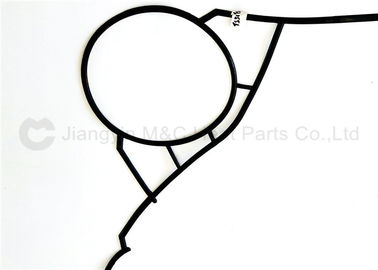

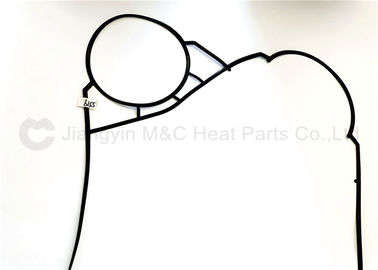

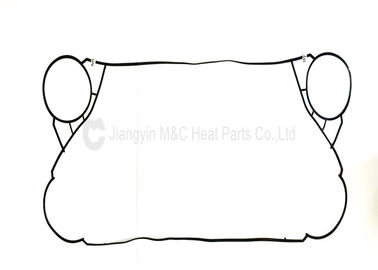

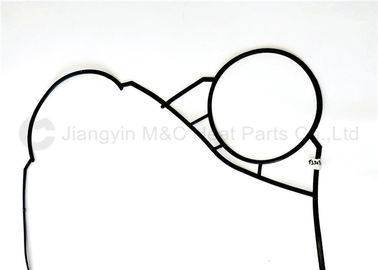

Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Sealing principle
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Gasket Feature
Simple style and good sealing
Widely used and adaptable
Resistant to corrosion and high temperature
Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
