Jacked Type Heat Exchange System ,RX10A Heat Exchange Unit Enhances Effect

China Jiangyin M&C Heat Parts Co.,Ltd certification
I'm Online Chat Now

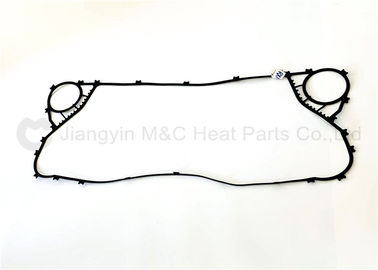

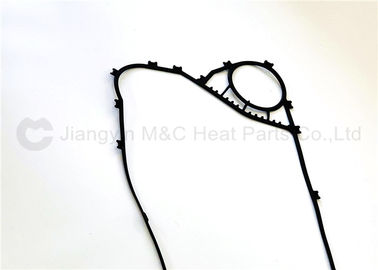

Jacked Type Heat Exchange System ,RX10A Heat Exchange Unit Enhances Effect

Jacked Type Heat Exchange System ,RX10A  Heat Exchange Unit Enhances Effect
Jacked Type Heat Exchange System ,RX10A  Heat Exchange Unit Enhances Effect Jacked Type Heat Exchange System ,RX10A  Heat Exchange Unit Enhances Effect

Large Image :  Jacked Type Heat Exchange System ,RX10A Heat Exchange Unit Enhances Effect

Product Details:
Place of Origin: Jiangsu China (mainland)
Brand Name: M&C
Certification: SGS FDA ISO
Model Number: RX10A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export carton /wooden case
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000Pcs/Month
Detailed Product Description
Product Name: Plate Heat Exchanger Parts Material: NBR/SILICONE/VITON/EPDM
Application: PHE Parts Shape: Flat Gasket
Size: Standard Or Customized
High Light:

plate heat exchanger gaskets

,

mercruiser heat exchanger gasket

Jacked Type Heat Exchange System ,RX10A Heat Exchange Unit Enhances Effect



Basic information of gasket



Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.

M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.

The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).

Sealing principle:

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.



Product information



Brand name: M&C

Material: NBR,EPDM

Advantage: produce plastic deformation and have certain strength.



Feature



A: Simple style and good sealing

B: Widely used and adaptable

C: Resistant to corrosion and high temperature

D: Easy to disassemble and maintain

Jacked Type Heat Exchange System ,RX10A  Heat Exchange Unit Enhances Effect 0



Parameters



Gasket Material Temperature Range(℃) Hardness Available Fluid
NBR -20 to 110 -75+/-3 Water,Oil,Acid etc
EPDM -30 to 150 80+/-5 Steam,Ammonia,Acid etc
NBR-HT -30 to 160 85+/-5 Mineral Oil,Thermal Oil
EPDM-HT -30 to 180 85+/-5 High-Temperature Water
TFEP -20 to 180 80+/-5 Acid,Glycol,Chloride
FPM -55 to 220 80+/-5 Acid,Glycol,Chloride



Application



Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration

Jacked Type Heat Exchange System ,RX10A  Heat Exchange Unit Enhances Effect 1



Company Profile



M&C, is the Booster and leader of effective heat exchange technology in all industries.

M&C can be able to offer a full range of heat exchange design calculation in full working condition. We have accumulated rich experience in heating, cooling and waste heat recovery for complex process mediums. M&C never views separately in the selection of heat exchange equipment applications, but put it in the whole process production line, Therefore, we find the best balance to consider the whole initial investment in equipment and long-term operating costs. We optimize manufacturing processes of our clients and reduce the use of fresh energy to provide our customers maximum value when we find reasonable main points in high heat transfer efficiency and pressure loss.

M&C enterprises, has always been insisting this operation principle: Opening-up and cooperation, mutual improvement with cooperative partner and growing together with employees from the date of birth, to promote the progress of industry and business.

The leading heat transfer technology of M&C, always from in the forefront of the heat exchange field all over the world, it is our belief that common sense is not constrained by experience, having the courage to take risks and depending on the talent as the most fundamental wealth.



Why choose us ?



1. We always think from the perspective of customers, solve problems and bring higher value to customers

2. More than 15 years of professional experience and expert team

3. Professional production r&d team to improve heat exchange efficiency and reduce operating costs

4. The technical scheme of guaranteed commitment

5. Whole process service from pre-sale to after-sale

6. Help customers reduce risks and save costs to maximize customer benefits
