Product Details:
Payment & Shipping Terms:
|
| Product Name: | Glued Plate Heat Exchanger Gaskets | Material: | NBR/SILICONE/VITON |
|---|---|---|---|
| Application: | PHE Parts | Shape: | Flat Gasket |
| Type: | Hang-on | ||
| High Light: | basco heat exchanger gaskets,custom rubber gasket |
||
Technical Specification
| Design Code | ASME,PED |
| Plate Material |
SS304,SS316,904L,254SMO,C276 Titanium,Nickel,Incoloy825 |
| Plate Thickness | 0.5mm,0.6mm,0.8mm,1mm |
| Gasket Material | NBR,HNBR,EPDM,HEPDM,FKM(Viton),CR |
| Gasket assembly | Clip on,Lock in,Snap on,Glued |
| Frame material |
Carbon steel,Stainless steel Stainless steel coat |
| Nozzle |
Flange,Rubber insert,Thread Material insert,Clamp |
| Connection size | DN15-DN500 |
| Connection standard | Customized |
| Color | Customized |
| Application | HVAC,Power,Sugar,Marine,Chemical |
Gasket Selection
| Gasket Material | Max. Temp | Application |
| NBR Standard | 100℃/212℉ | Remarkable resistance to oils,solvents and grease. |
| NBR-HT | 130℃/266℉ | |
| HNBR | 160℃/320℉ | |
| EPDM | 150℃/302℉ |
Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). Sensitive to ultraviolet radiation and light. Good chemical resistance to ketones,alcohols,and diluted bases together with certain lubricants. Very low resistance to hydrocarbon solvents and oils. |
| EPDM-HT | 160℃/320℉ | |
| FPM-A | 180℃/356℉ | Resistance to most fluids for industrial use |
| FPM-G | 220℃/428℉ |
High resistance to extreme temperature : -50℃to+220℃. Optimum resistance to chemical product. |
Gasket Information

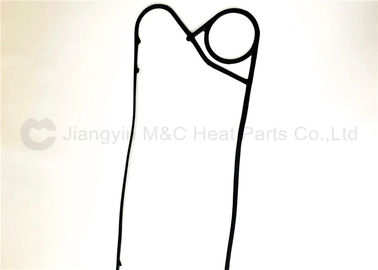

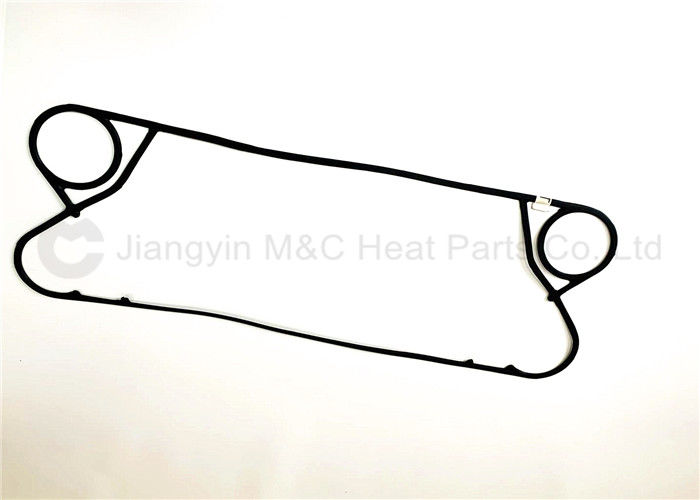

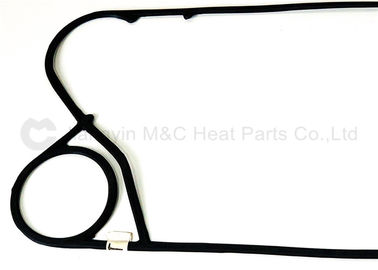

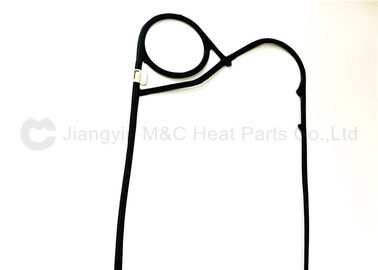

Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
Company Information
M&C, composed of several domestic enterprises, has always been insisting this business philosophy: opening-up and cooperation, mutual improvement with the cooperative partner and growing together with employees.
“Trust us, we can do more” is our enterprise tenet. We devote to provide a heat transfer solution for civil and industrial users in heating, cooling, waste heat recovery. Products we supplied include plate heat exchangers, plate type condensers, air coolers, wide gap plate heat exchangers, welded plate heat exchangers, heat-exchange units, water cooling equipment, waste heat recovery integration device, etc. The application scope covers HVAC, chemical, food and beverage, sugar, metallurgy, power, paper, textiles, shipping, and refrigeration, etc.
The superiority of M&C’s hot and cold exchanging technology comes from its consist high attention to talent cultivation and product research. M&C values group building and team building pays attention to product performance & quality.
