Product Details:
Payment & Shipping Terms:
|
| Structure: | Plate Heat Exchanger | Material: | Ti/Hastelloy/254SMO |
|---|---|---|---|
| Weight: | 1-50kg | Plate Tickness: | 0.5/0.6/0.8/1mm |
| Application: | PHE Parts | Liquid Flow Rate: | 2.5m/s |
| High Light: | heat exchanger replacement,plate type heat exchanger parts |
||
AN25L1 Plate heat exchanger Plates Gaskets Specification in Heat Exchanger Gaskets
| Material of Plate | Suited liquid Kinds | |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc | |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc | |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc | |
| Ni | High-temp and concentration caustic soda | |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid | |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm | |
| Plate Shape Size | ||
| Plate Center Size | ||
| Corrugation Depth | ||
| Angle Hole Diameter | ||
| Corrugated Angle | 46° /90 °/180 °/0 ° | |
| Working Pressure | <= 25 bar | |
| Plate Theta | Low Theta and High Theta | |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes | |
AN25L1 Product Description

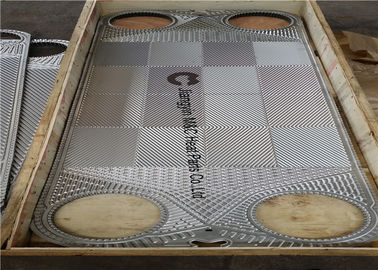

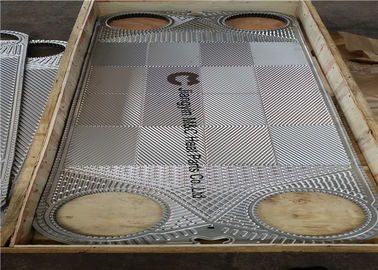

AN25L1 Plate Information&Related Products
The heat transfer plate is the heat exchange element that plays a major role in the heat exchanger .Generally, the corrugation is made into a herringbone shape (of course,some manufacturers have studied their own type),and according to the field medium,the material of the heat transfer plate is also not the same,mostly made of stainless steel and titanium.Usually, the plate is pressed into various groove type or corrugated type by using a mold,which can increase the rigidity of the plate,prevent deformation of the plate when it is under pressure, enhance the turbulence of the fluid, and enhance the heat exchange effect.

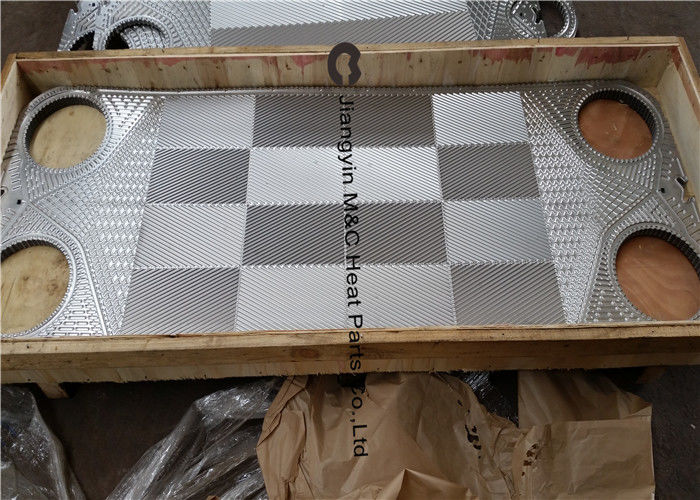

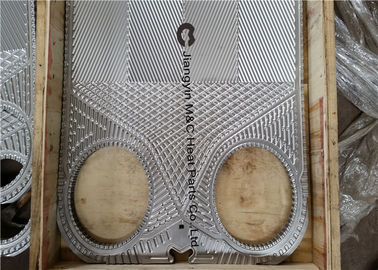

AN25L1 Packing & Shipping
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
