Product Details:
Payment & Shipping Terms:
|
| Structure: | Plate Heat Exchanger | Plate Tickness: | 0.5/0.6/0.8/1mm |
|---|---|---|---|
| Application: | PHE Parts | Power(W): | 7.5-110kw |
| Plate Material: | 316L,Titanium,SS304,254SMO,Nickel | Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan |
| Color: | Black,customized | Condition: | New |
| High Light: | cooling plate,brazed plate |
||

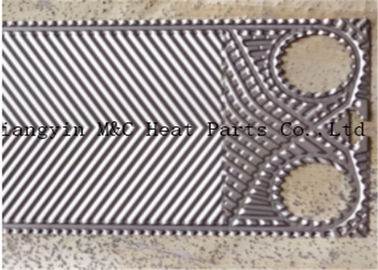

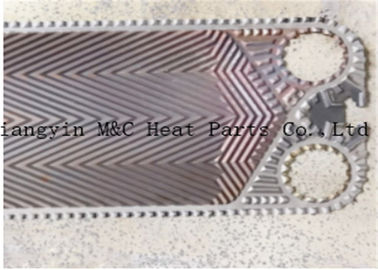

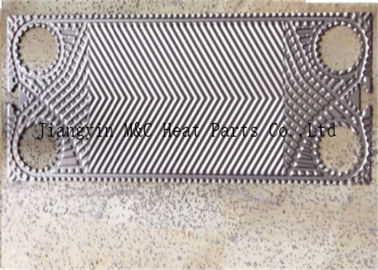

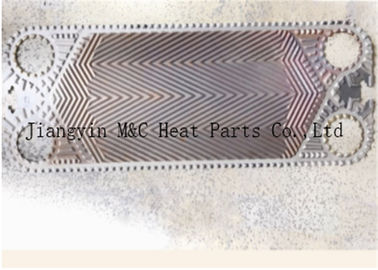

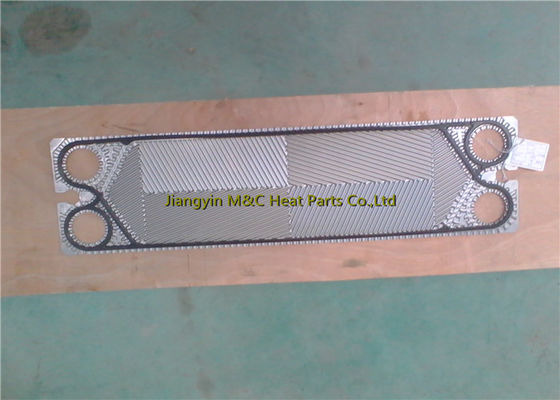

GX18 Diverse Plate Models
GX18 Parameter
| Material of Plate | Suited liquid Kinds |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc |
| Ni | High-temp and concentration caustic soda |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid |
|
Technical Advancement of plate &Gaset. Very high heat transfer rates due to thermodynamically optimized design. Corrugation fields with “off-set”embossing allow for symmetrical and asymmetrical flow gaps. Specially embossed entry fields for anoptimum distribution of media. Gaskets fastened by”Clip-system”for easy maintenance. Gaskets have a special ribbed surface,enabling more exact centering and stabilization of the entire plate pack. Double gasket with leakage groove between two medias,preventing mixing of the media. Special plate profile at the edges,reinforcing the plate pack and ensuring high pressure resistance of the gasket during operation. |
|
GX18 Channel Arrangement
Professional thermal software ensures the optimal performance according to different requirement.
High theta channel arrangement(H+H):for higher thermal performance and allowable pressure drop requirement applications.
Low theta channel arrangement(L+L):for lower allowable pressure drop requirement application.
Mixed channel arrangement(H+L/H+M/M+L):optional arrangement to gain the optimized performance.
Our Advantage
EXCELLENT QUALITY LONG-TERM TECHNICAL SUPPORT
We supply service from PHE assembling to technical consultation.We have built a long service relationship with customers since the order confirmed.
GX18 After-sales service
1, M&C has experienced emergency repair team which enables us to provide on-time maintenances.
2, Within warranty period,M&C will provide free maintenance for any break up due to importer wrong operation or natural damage.Materials and parts for maintenance are charged only with lowest cost.
3, We will trace the operation of our product and record the feedback from our customs.
4, Adhere to the principle of “Customer Supreme, Quality First”,our technicians learn the maintainance training regularly. We supply free technical support and service in order to make our customers satisfied.
