| Material: | SS316/SS304/Ti/254SMO | Structure: | Plate Heat Exchanger |
|---|---|---|---|
| Plate Tickness: | 0.5/0.6/0.8/1mm | Packing: | Standard Exporting Polywood |
| Max Working: | 3.0Mpa | Application: | Heater Parts,Refrigeration Parts,Heat Exchange |
| After-sales Service Provided: | Online Support,Video Technical Support,Field Maintenance And Repair Service | Color: | Silver /Black |
| Highlight: | heating plate,brazed plate |
||

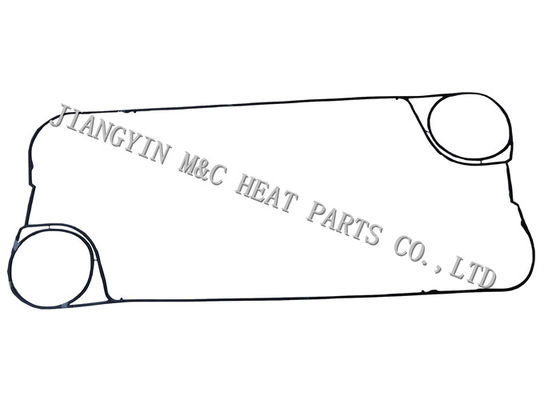

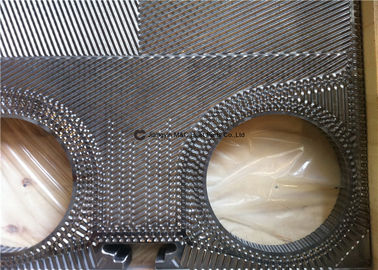

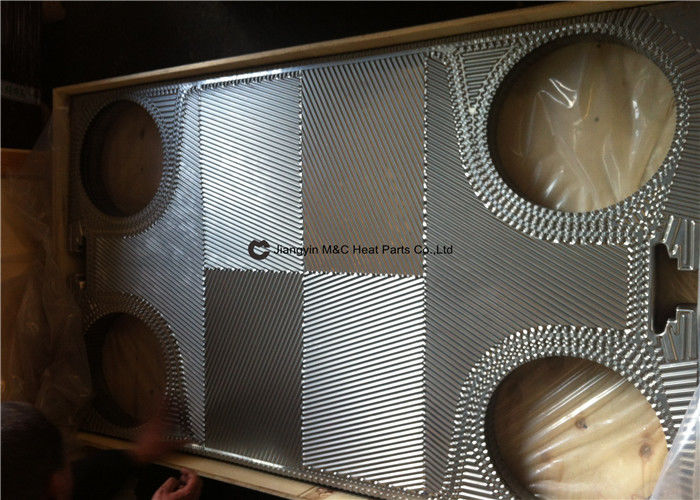

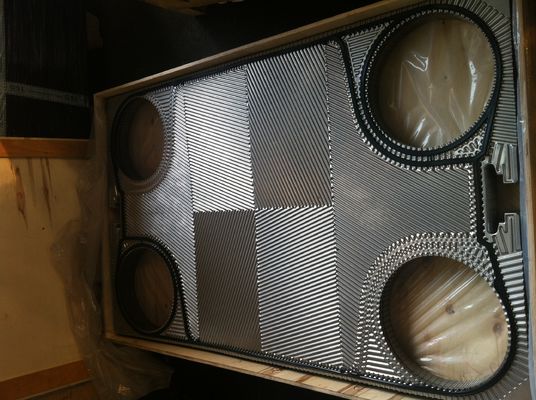

GX85 Plate heat exchanger and spare parts (plate and gasket)
We mainly manufacture plate heat exchanger and spare parts (plate and gasket),we can provide many brands of plates and gasketed plate heat exchanger with competitive price and high quality,Most importantly we provide free sample if you are interested.
By keeping most often used plates in stock at all times, we have the ability to offer immediate shipment on most requests. Our turn around time and price is unmatched in the industry.
We guarantee every plate sold with equal or longer warranty periods compared to the original manufacturer. The models we provide can replace the world famous manufacturers.
GX85 Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| Viton/FKM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
GX85 Plate heat exchanger Plates Gaskets Specification in Heat Exchanger Gaskets
| Material of Plate | Suited liquid Kinds | |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc | |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc | |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc | |
| Ni | High-temp and concentration caustic soda | |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid | |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm | |

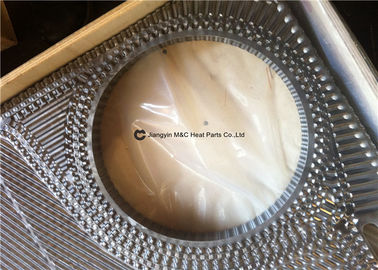

| Angle Hole Diameter | Φ290mm | |
| Corrugated Angle | 46° /90 °/180 °/0 ° | |
| Working Pressure | <= 25 bar | |
| Plate Theta | Low Theta and High Theta | |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes | |
GX85 Plate heat exchanger advantage
Plate heat exchanger main components
After-sales service
1, M&C has experienced emergency repair team which enables us to provide on-time maintenances.
2, Within warranty period,M&C will provide free maintenance for any break up due to importer wrong operation or natural damage.Materials and parts for maintenance are charged only with lowest cost.
3, We will trace the operation of our product and record the feedback from our customs.
4, Adhere to the principle of “Customer Supreme, Quality First”,our technicians learn the maintainance training regularly. We supply free technical support and service in order to make our customers satisfied.
Package:standard export carton, plywood case
