Product Details:
Payment & Shipping Terms:
|

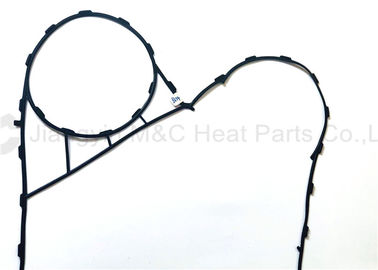

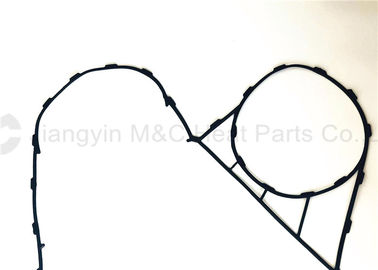

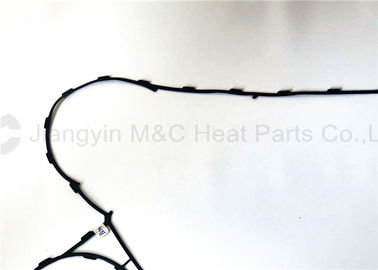

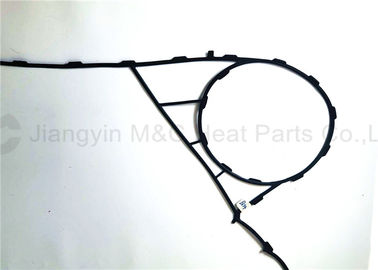

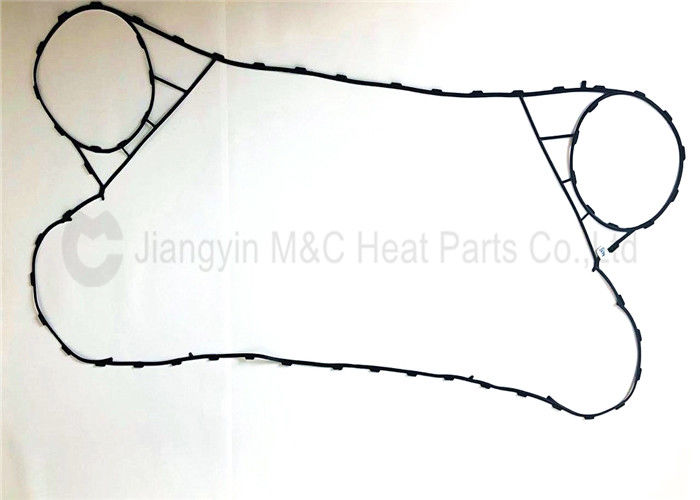

| Product Name: | Plate Heat Exchanger Gaskets | Material: | SILICONE |
|---|---|---|---|
| Application: | PHE Parts | Size: | Centre To Centre: 2000mm*310mm |
| Transfer Area: | 1.0㎡ | ||
| High Light: | heat exchanger components,custom rubber gasket |
||
Product Description
Plate heat exchanger is consist of corrugate heat transfer plate,according to a certain interval,composed of gasket pressed removable heat transfer equipment. When plate assembly,the two groups alternately arranged between the plate with a sealing pad to prevent fluid leakage and the formation of narrow network between the two channels. Why the plate has a variety of corrugated? It is to increase the heat transfer plate area and rigidity,and can make the fluid flow at low turbulence,in order to achieve the effect of enhanced heat transfer.The four hole corners of the plate,forming a fluid distribution pipe and drain pipe,two kinds of heat transfer medium flow into the respective flow through the plate for heat transfer.
| Plate Material | Suitable for fluid |
| Stainless steel (Alloy304, Alloy 316, etc.) | Clean water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt |
| 20Cr, 18Ni, 6Mo (254SM0) | Dilute sulfuric acid, sparse salt solution, inorganic solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Graphite | Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid |
| Seal Material | Temperature | Suitable for fluid |
| NBR | -15C°to +130C° | Water, seawater, mineral oil brine |
| NHNBR | -15C°to +160C° | High temperature mineral oil, high temperature water |
| EPDM | -25C°to +180C° | Hot water, steam, acid, alkali |
| Viton/FKM | -5C°to +180C° | Acid, alkali, fluid |
The same type of plate, the corrugation has different size of the channel and the angle, according to different system conditions, different plate combinations can be used to achieve the best performance.
Company profile
M&C Heat Parts Co.,Ltd is founded in Wuxi,Jiangsu.We specialize in R&D and production of plate heat exchangers.M&C has Gasketed Plate Heat Exchangers,Brazed Plate Heat Exchangers,Plate Heat Exchanger Gaskets and Plate Heat Exchanger Plates,these products are widely used in HVAC,Air conditioning,Automotive,Beverage,Food,Chemicals,Oil,Power,Paper,Transportation and other fields. M&C has a professional technical team and good quality sales team.Reliable product quality,technology leader and passionate service to make M&C has been a leading plate heat exchanger designer and manufacturer in China.We can according customers requirements to provide design,manufacturing and other services and consulting.
Product Advantage
1,Compact design and high thermal efficiency.
2,De-mountable for cleaning and maintenance,strong flexibility.
3,A quality product ,low maintenance costs with long service life.
4,High operational safety,widely used application possbilities.
