Product Details:
Payment & Shipping Terms:
|
| Plate Material: | Titanium | Gasket Material: | NBR |
|---|---|---|---|
| Application: | Vessel/Marine/Ship/Boat Sea Water | Plate Thickness: | 0.5mm |
| Plate Shape Size: | 744*270mm | Corrugation Normal Pitch: | 11.1 |
| Plate Transfer Area: | 0.13㎡ | Corrugation Depth: | 4/3.5mm |
| Warranty: | 12 Months | Plate Hole: | Channel Plate With 4 Holes, End Plate Without Holes |
| Plate Center Size: | 620*150mm | ||
| High Light: | M15B Heat Exchanger Gaskets,Plate And Frame Heat Exchanger Parts |
||
Vessel Evaporative Water Generator Spare Parts Titanium 0.5mm Thickness Plate Heat Exchanger Gaskets and Plates SFD13
SFD13 Fresh Water Generator
Fresh water generator, one of the important machinery on board a ship, is something that cannot be done without. Fresh water produced from fresh water generator is used for drinking, cooking, washing and even running other important machinery which use fresg water as a cooling medium.
Fresh water is generally produced on board using the evaporation method. There are two things that are available in plenty on ship to produce fresh water- Seawater and heat. Thus fresh water is produced by evaporationg sea water using heat fromany of the heat source. The evaporated sea water is then again cooled by the sea water and the cycle repeats.
SFD13 Plate Heat Exchanger Gaskets/Plates Specifications in Evaporative Water Generator Sysytem
| Plate Material | SS304/SS316L/ Titanium / SMO254/ Nickel / Hastelly C276 |
| Gasket Material | EPDM/NBR/ HNBR/HTNBR/HEPDM/FKM/VITON A/VITON G |
| Plate Thickness | 0.5mm-0.6mm |
| Plate Shape Size | 744*270mm |
| Plate Center Size | 620*150mm |
| Corrugation Normal Pitch | 11.1mm |
| Corrugation Depth | 4/3.5mm |
| Plate Equivalent Diameter | 7mm |
| Angle Hole Diameter | Φ74 |
| Plate Transfer Area | 0.13㎡ |
| Model Type | SFD13 Old Type / SFD13 New Type |

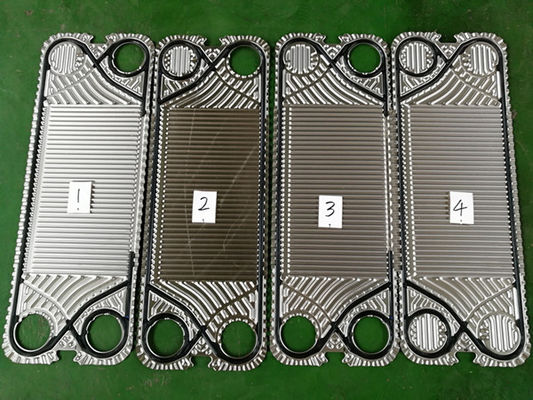

| Plate Type | Plate 1 / Plate 2 / Plate 3 / Plate 4 |
| Gasket Type | Glue Type |
| Corrugated Angle | 0° / 180° |
| Working Pressure | <= 25 bar |

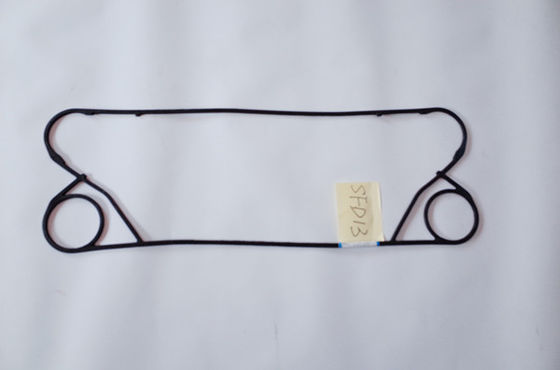

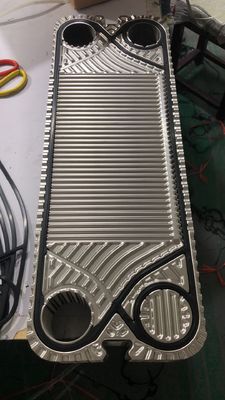

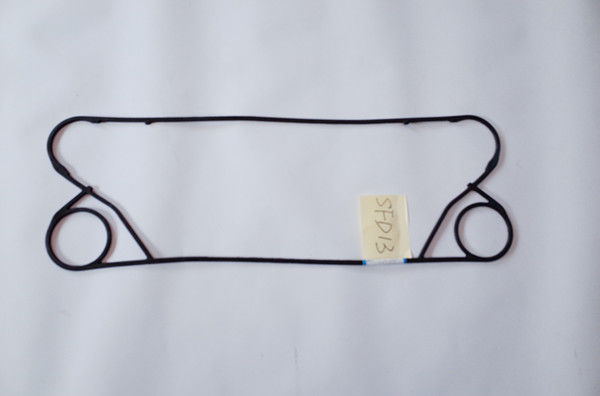

SFD13 Product Picture
SFD13 Old Type and New Type Adjustment
About MC
Jiangyin M&C Heat Parts Co.,Ltd is located in Wuxi, which major in the heat exchanger industry, provide many brands of plate heat exchanger plates and gaskets to many customers from the world.
From now on, MC owns more than 600pcs gasket models and 200pcs plate models. Daily output more than 5000pcs per day. Products be sold to Europe, South America, North America, Africa, Middle East and Asia.
MC has gasketed plate heat exchangers (GPHE), brazed plate heat exchanger (BPHE), plate heat exchanger gaskets (PHE Gaskets) and plate heat exchanger plates (PHE Plates).
These products are widely used in HVAC, Air Conditioning, Automotive, Beverage, Food, Chemicals, Oil, Power, Paper, Transportationand other fields. MC has a professional technical team and good quality sales team. Reliable product quality, technology leader and passionate service. We can according customers requirements to provide design,consult, maintance and other service.
