FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON

China Jiangyin M&C Heat Parts Co.,Ltd certification
I'm Online Chat Now

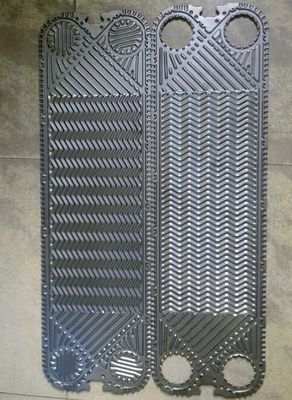

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON

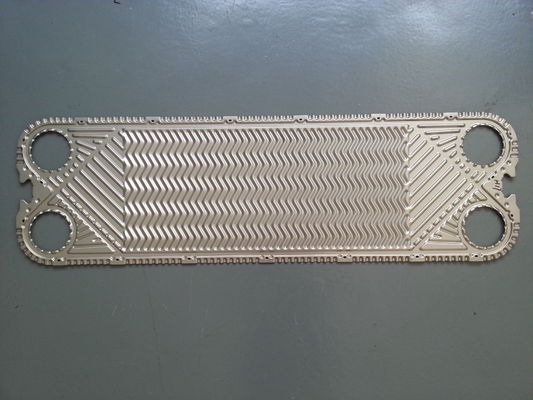

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON

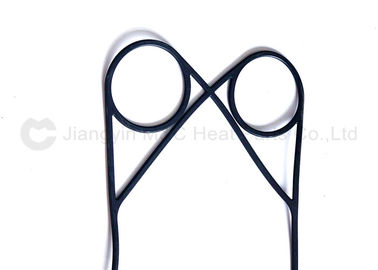

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON
video play

Large Image :  FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON

Product Details:
Place of Origin: Jiangsu,China
Brand Name: MC
Certification: SGS ISO FDA
Model Number: H17
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: standard export carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pc/month
Detailed Product Description
Gasket Material: EPDM/NBR/HNBR/VITON/FPM Plate Material: AISI 304/ AISI 316L/ Titanium/ TiPA/SMO254/ Alloy 904/ Nickel
Plate Thickness: 0.5/0.6mm Plate Theta: High Theta/Low Theta
Plate Shape Dimension: 920*271mm Transfer Area: 0.17㎡
Plate Center Dimension: Centre To Centre: 800mm*150mm Hole Diameter: 74mm
Plate Corruagted Depth: 3mm Temperature Range: 0-220 ℃
Highlight:

EPDM Heat Exchanger Gaskets

,

heat exchanger gaskets

LT FRESH WATER COOLER Heat exchanger, common used in oil industry, SS316 0.5mm NBR Plate heat exchanger H17



H17 Operating Principle





The plate heat exchanger consists of a number of thin corrugated metal plates. The plate corrugations form flow channels for the heat exchanging fluids and provide strength to the compressed plate pack. The plates contain ports for fluid inlets, outlets and interconnect passages as required. Gaskets are attached to the plates, forming a seal between the heat exchanging fluids and the surroundings. In the example shown here, the cold fluid enters at the bottom and the hot fluid at the top.



Frame



The plates are clamped together to a predetermined dimension by the tie bars between two thick metal slabs: a stationary slab (head) and a moveable slab (follower). Connections for the fluid inlets and outlets can be made on either slab. The plates are hung on the top bar and guided by the bottom bar. An end column supports the top and bottom bar ends.



Sanitary plate heat exchangers



Frames used for sanitary or hygienic duties are fabricated in solid stainless steel or carbon steel with stainless steel covering. Standard connections are usually sanitary tube fittings. Industrial fittings may be supplied when required. Plates may be either parallel flow or diagonal flow.



H17 Gasket Parameter





Rubber Type NBR EPDM VITON/FKM HNBR
Application Temperature -20°C- +130°C -50°C-+150°C -30°C-+251°C -15°C- +160°C
Fluid Media

Water

Sea water

Mineral oil

Salt brine

Hot water

Steam

Acid

Alkali

High temperature resistance

Strong oxidants

Oil

Acid and alkali

High temperature mineral oil and water
Feature Easier to replace than the traditional gasket, high pressure, high temperature, longer life, should not be leaked



Material of Gasket Operating Temperature(℃) Suited Liquid kinds
NBR -15 to +135 Water,sea water etc
EPDM -25 to +180 Hot water,steam etc
FPM/VITON -55 to +230 Acid,Caustic,Fluid
HNBR 0 to +160 Concentrated acid etc




MC Plate Heat Exchanger Main Components



FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON 0



1. Head for connections and clamping the plate pack

2. Follower for clamping the plate pack

3. End support for supporting the top and bottom bars

4. Top bar for carrying and guiding the follower and plate pack

5. Bottom bar for guiding the follower and plate pack

6. Tie bars for clamping the plate pack between head and follower

7. Flow plate (Figure 1)

8. Flow gasket (Figure 1)

9. Nut for tie bar

10. Adjustable or fixed legs

11. Connector grid for additional fluid connector bosses

12. Connector bosses



H17 Plate Heat Exchanger Advantages



Compact design High thermal efficiency
De-mountable for cleaning and maintenance Can have additional heat transfer plates added if required
Suitable for hygienic and industrial applications Suitable for use with steam
Food-safe material CIP system-adaptable
Simple cleaning A quality product
Low maintenance costs Long service life
Profile variations for highly effective flow relationships Special plates for steam condensation
Advantageous price/Performance ratio Friendly service
High operational safety Compactness
High effectiveness Wide-ranging application possibilities



Goods Pictures

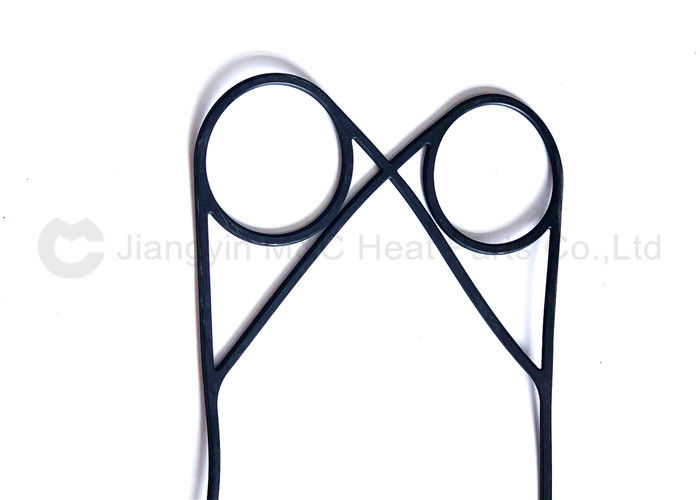

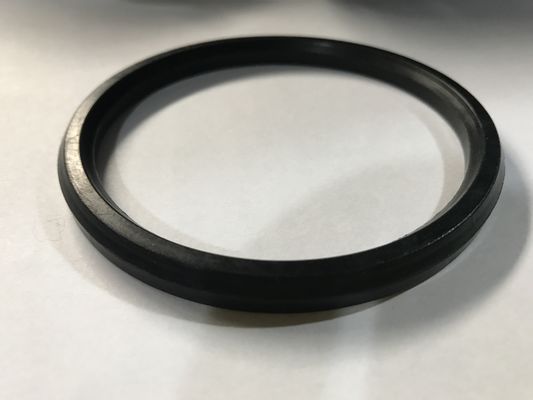

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON 1

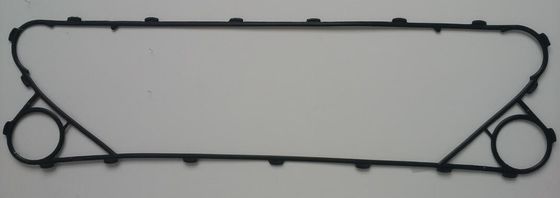

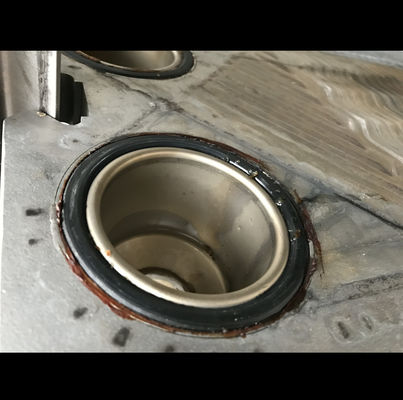

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON 2

FRESH WATER PROCESSOR OIL COOLER heat exchanger H17 EPDM NBR VITON 3
