| Product Name: | RX50 Plate Heat Exchanger Plates Gaskets | Gasket Material: | EPDM, NBR, HEPDM, HNBR, HTNBR, FPM, Viton |
|---|---|---|---|
| Capability Range: | 0.1 M³/h To 5000 M³/h | Operating Pressure: | 4.0 MPaG Max |
| Operating Temperature: | 180 ℃ Max | Surface Area: | 0.18㎡/Unit To 2500 ㎡/Unit |
| Plate Material: | Stainless Steel, Titanium, High Nickel Alloy, Nickel | Connection Material: | Rubber, Stainless Steel |
| Connection Diameter: | 200mm | Gasket Center Size: | 1520*360mm |
| Highlight: | plate heat exchanger gaskets,Heat Exchanger Gasket Replacement |
||

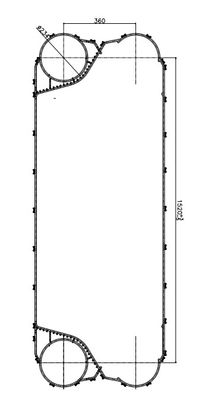

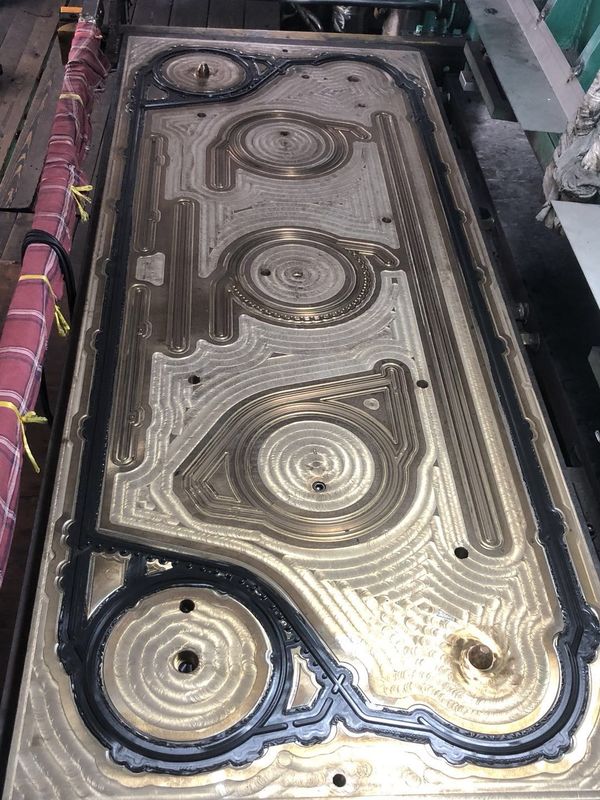

Length/Width Dimension size 1520*360mm used in Vessel/Marine Industry Plate Heat Exchanger Gasket RX50
RX50 Plate Heat Exchanger Basic Structure
Heat transfer plates are made by pressing thin sheets of corrosion-resistant metal such as stainless steel or titanium, then set them with seal gaskets and hang and pile them on the guide bar. Then, plates are tightened with bolts between the xed frame and the movable frame. Here, there is a certain gap between the heat transfer plates that allows liquid to ow. The liquid inlets and outlets are in the xed frame or the movable frame.
MC Heat Transfer Plate
Each heat transfer plate is corrugated to various patterns to increase its strength and surface area. Furthermore, the corrugation makes high turbulence and thereby achieves high heat transfer coeffcient. Portholes are formed in the plate's four corners. The gasket is set into the groove around the plate edge to seal in the fuid.
RX50 Plate Heat Exchangers Plates/ Gaskets Specification
| Max. Flow Rate/ Unit | 923m³/h |
| Max. Working Pressure | 2.1 MPaG |
| Max. Working Temperature | 180 ℃ |
| Max. Heat Transfer Area/Unit | 500 ㎡ |
| Porthole Dia. | 216mm |
| Connection Dia. | 200A |
MC Gaskets
Gaskets used in plate heat exchangers must have durability in various liquid qualities and temperature / pressure conditions.
MC has prepared the following gasket materials in order to support a wide variety of applications
Standard material: NBR, EPDM, HEPDM, HTNBR
Special material: FPM, Viton-A, Viton-G, PTFE
| Seal Material | Temperature | Suitable for fluid |
| NBR | -15C°to +130C° | Water, seawater, mineral oil brine |
| NHNBR | -15C°to +160C° | High temperature mineral oil, high temperature water |
| EPDM | -25C°to +180C° | Hot water, steam, acid, alkali |
| Viton/FKM | -5C°to +180C° | Acid, alkali, fluid |
MC Plate Heat Exchanger Applications
Chemicals:
Fluids containing solids: Polyvinyl chloride (polymer), various slurry fuids • High viscosity fuids: Rubber latexes, resin latexes
Dyeing:
Fluids containing fibers: Waste fluid from Dyeing machine • High viscosity fluids: Viscose
Food:
Fluids containing solids: Sauce for grilled meat, juice with fiber, factory waste water • Fluids containing fibers: Amazake • High viscosity fluids: Mayonnaise, various sauces, starch saccharification liquid, syrup
Sugar:
Fluids containing solids: Raw juice, sugar making process such as the Steffen process, processed fluids, factory waste water
Pulp and paper:
Fluids containing fibers: Diluted black liquor, white liquor
Other:
Plating fluid containing sludge, quenching oil • High concentration sodium hypochlorite, sodium aluminate • Heat transfer for significantly different flow rates on the hot / cold sides plant • Snow melting plant
