Product Details:
Payment & Shipping Terms:
|
| Product Name: | Compact Plate Heat Exchanger | Material: | SS304/Ti |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Plate Tickness: | 0.5/0.6/0.8 |
| Application: | PHE Parts | Dimension: | Centre To Centre: 565mm*125mm |
| Packing: | Best Suitable Packing Way | Color: | Silver /Black |
| High Light: | heating plate,cooling plate |
||
TL90PP Plate Frame Heat Exchanger SS304 SS316 Gasketed Heat Exchanger

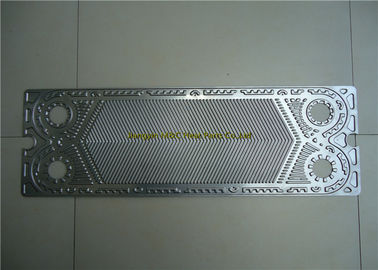

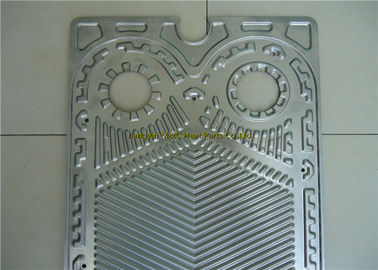

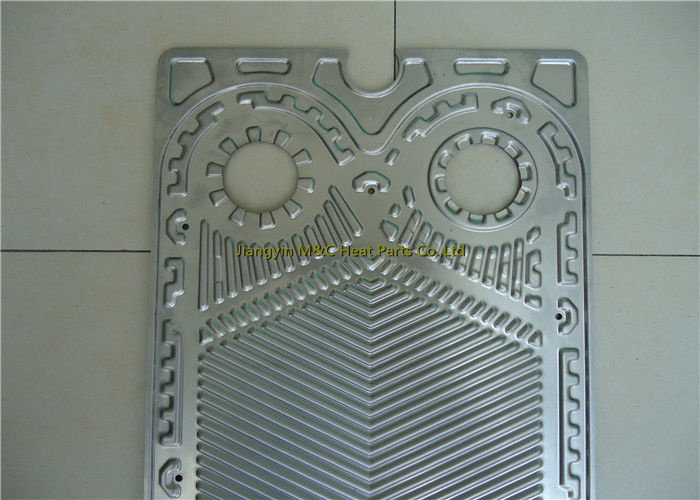

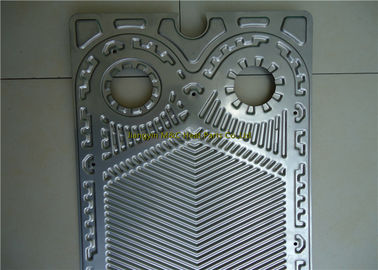

TL90PP Basic information of PHE plate
Metal plate:It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.
TL90PP Parameters
| Plate Material | Available Medium |
| AISI304, AISI316L | Pure Water, Fresh Water, Mineral Water |
| Titanium | Sea Water, Mineral Oil, Vegetable Water |
| 254SMO | Dulute Sulphuric Acid etc. |
| Ni | Caustic Soda with high temperature and concentraction |
| Hastelloy | Concentration Sulphuric Acid etc. |
Feature
1.Advanced plate design to improve heat transfer efficiency.
2.Uniform distribution of fluid, accurate positioning.
3.Common types of plate heat exchanger plates at home and abroad.
4.Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5.The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6.Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7.Single plate, simplified maintenance.
PHE Principle
Flat plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids.This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. This high heat transfer efficiency for such a small physical size has increased the domestic hot water(DHW) flow rate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water.Larger commercial versions use gaskets between the plates.
Packing & Delivery
Packing Details : Standard Export Plywood & Carton.
Delivery Details : 3-30 days after order of Solid bicycle tire tubes.
