Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Plate And Frame Heat Exchanger | Material: | SS316/Ti/Hastelloy |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Plate Tickness: | 0.5/0.6/0.7 |
| Application: | PHE Parts | Shape: | Flat Plate |
| Highlight: | heating plate,cooling plate |
||

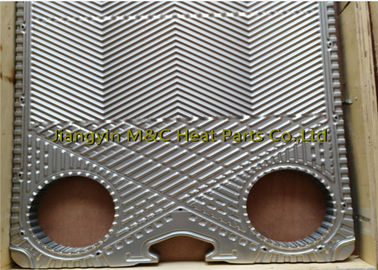

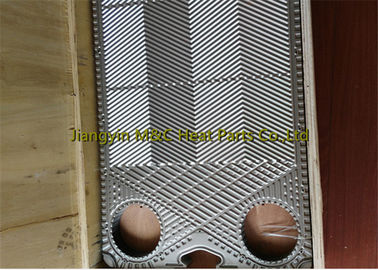

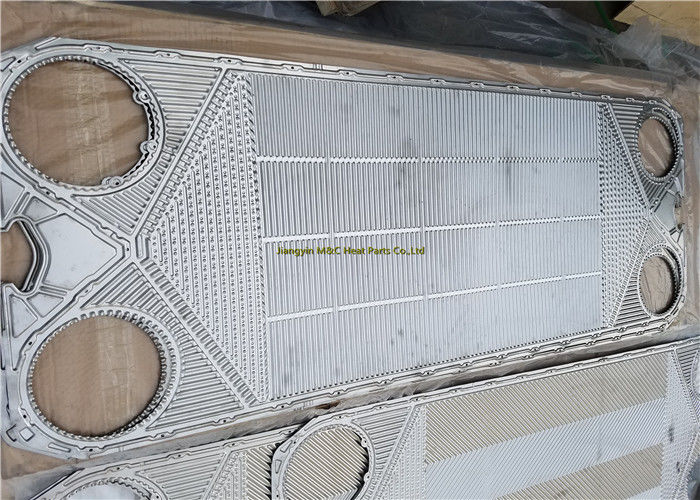

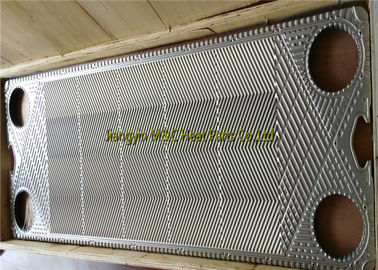

TR9GN Stainless Steel Plate Heat Exchanger SS304 SS316 TI NI Plate Frame Heat Exchanger
TR9GN Plate Heat Exchanger Description
Plate heat exchanger is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt,nut,lock washer and frame foot. It is device for liquid of two different’s temperture that is going to heat transfer. It is suitable for all industry, such as chemical engineering,chemical fertilizer,meicine,metallurgy,machinery,mine,printing and dyeing and so on.
TR9GN Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
TR9GN Production introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
