| Plate Dimension: | 90*704mm | Plate Material: | AISI 304/316L, Ti, Alloy 904L, SMO254, Nickel |
|---|---|---|---|
| Gasket Material: | Nitrile, EPDM, FKM, Viton And Others | Frame Material: | Carbon Steel, Painted, Stainless Steel |
| Gasket Weight: | 120g | Plate Weight: | 0.8kg |
| Connections: | Standard Studded Bolts | Flanges: | Stainless Steel, Rubber Liner |
| Max Pressure: | 25 Bar | Max Temperature: | 220 ℃ |
| Highlight: | AVC170 PHE Gaskets,AVC170 plate Heat Exchanger Gaskets,TFEP PHE Gaskets |
||
Oil industry used small area easy installation in the limited space plate heat exchanger Sigma 9/ Sigma M9/ Sigma X9
Plate Heat Exchanger Description
MC plate heat exchangers are used throughout the world for heat transfer of liquids and gases in many industrial sectors and application areas. They are used as process chillers in chemical plants, water circulation coolers in power stations, lubricating oil coolers on ships, tempering devices in the clean room areas in the manufacturing of semiconductors, wort coolers in breweries or for soft drink pasteurization. Due to the wide range of plate and gasket types, the variety of materials and design implementations, as well as our specific know how, MC offers individually tailored, highly efficient and cost-effective solutions for various processes.

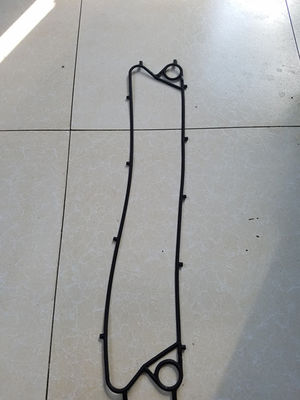

Sigma 9/Sigma M9/ Sigma X9 Gasket Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |

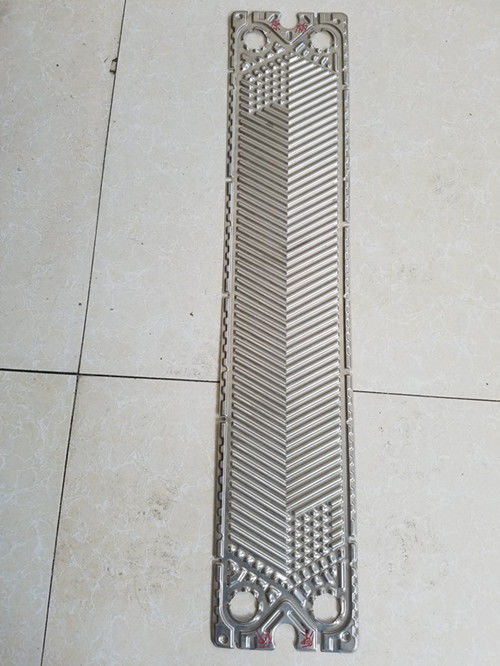

MC Plate Corrugation Patterns
MC Service
There is no room for compromise with respect to the safety of your operation, either in the process of manufacturing of our products, or in the availability and the quality of our spare parts. The use of MC's spare parts guarantees the highest reliability and reduces production downtime. Our central warehouse as well as the stock at our partner’s sites worldwide provides a wide assortment of spare parts which can be delivered to your site as quickly as is necessary.
We pay special attention to the needs of our customers also in our service program. Our engineers and service technicians at MC will work together with you to create individually tailored service concepts which can be adjusted to accommodate your specific needs.
Markets and applications
Our daily challenge and objective is to offer individual custom-tailored solutions with optimal cost-benefit ratio.
Longstanding experience – also in sophisticated applications – and the exceptional specialized knowledge of our engineers in the process engineering field have made a recognized partner in the industry. In our commitment to this entrepreneurship philosophy, our plate heat exchangers offer first-class solutions for the thermal processes in many application areas. Thus they are well suited to practically all markets
in which they perform reliably their day-to-day tasks. The clients use successfully and with great satisfaction the MC plate heat exchangers in the following fields:
