Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plate Heat Exchanger | Gasket Material: | EPDM,FKM,NBR,HNBE,HEPDM |
|---|---|---|---|
| Type: | Plate Heat Exchanger Spare Parts,glue On,shell And Tube | Structure: | Plate Heat Exchanger,Tube Heat Exchanger |
| Shape: | Flat Gasket | Application: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts |
| Temperature Range: | -20+110℃ | Dimension(l*w*h): | Customized,According To The Capacity |
| High Light: | LX50A plate heat exchanger parts,LX50A exchanger gasket,LX50A heat exchanger seals |
||

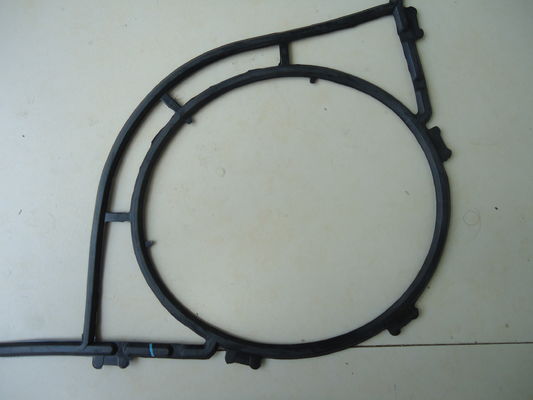

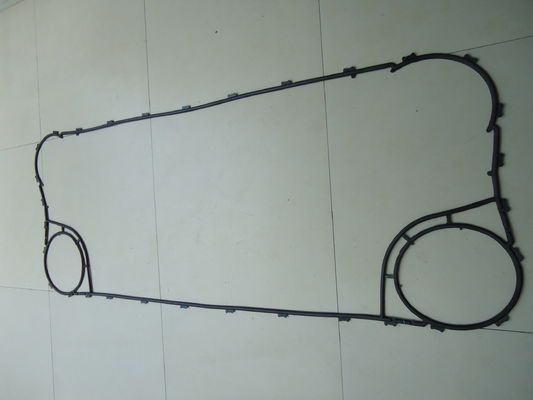

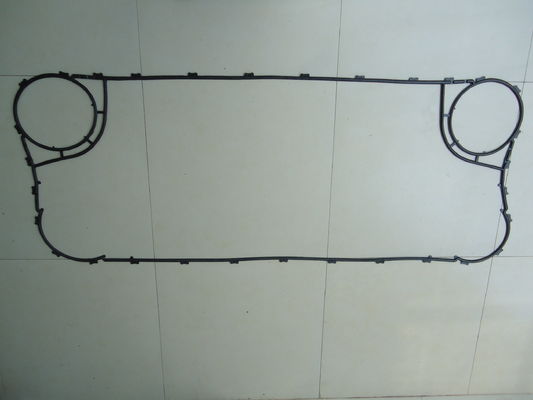

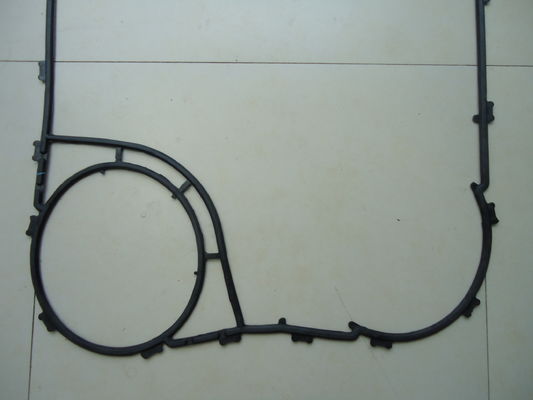

LX50A Plate Heat exchanger gaskets NBR high pressure gasket Temperature Range -20-110℃
LX50A Plate Heat Exchanger Description
The frame type plate heat exchanger is composed of a set of corrugated metal plates, which are made of stainless steel or titanium plates and other special materials. The plates are mounted with rubber pads and supported by the front and rear frames, pull bolts and other accessories. Through high and low temperature conversion and by two or more kinds of medium, the plates to achieve heat transfer, and sterilization effect. Our products are commonly used in shipping, chemical industry, petroleum, food, medicine, central heating and other fields. MC has been constantly exploring and developing breakthroughs in new fields. At present, it has made some progress in waste water recycling.
LX50A Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| Viton/FKM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Production Introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Sealing Principle
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Why Choose Us?
Package:standard export carton, plywood case
