Product Details:
Payment & Shipping Terms:
|
| Transfer Area: | 0.259m² | Dimension: | 980mm*174mm |
|---|---|---|---|
| Material: | HNBR/NBR/EPDM/FKW | Plate Material: | 316L,Titanium,SS304,254SMO,Nickel |
| Liquid Flow Rate: | Customized Made,Adjustable | Type: | Plate Heat Exchanger Spare Parts |
| Product Name: | Plate Heat Exchanger | Condition: | New |
| High Light: | economical Heat Exchanger Gasket,Sigma 26 Heat Exchanger Gasket,Sigma 26 PHE Gasket |
||

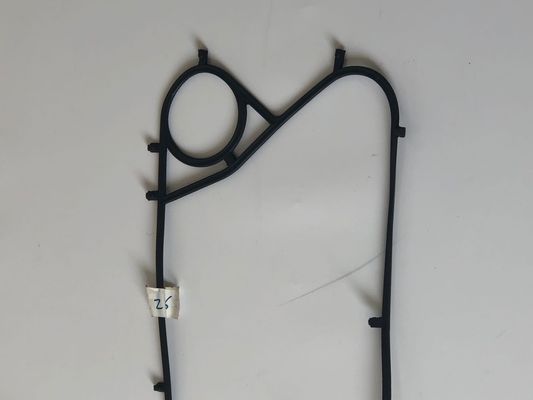

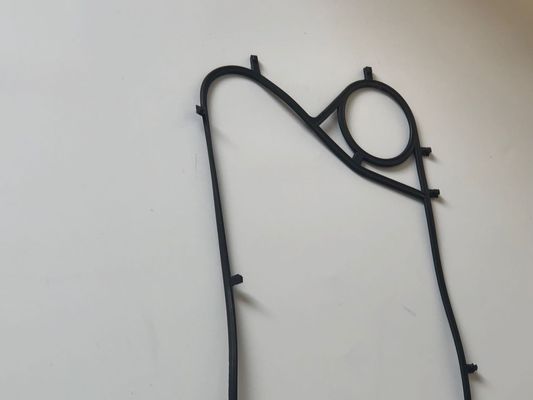

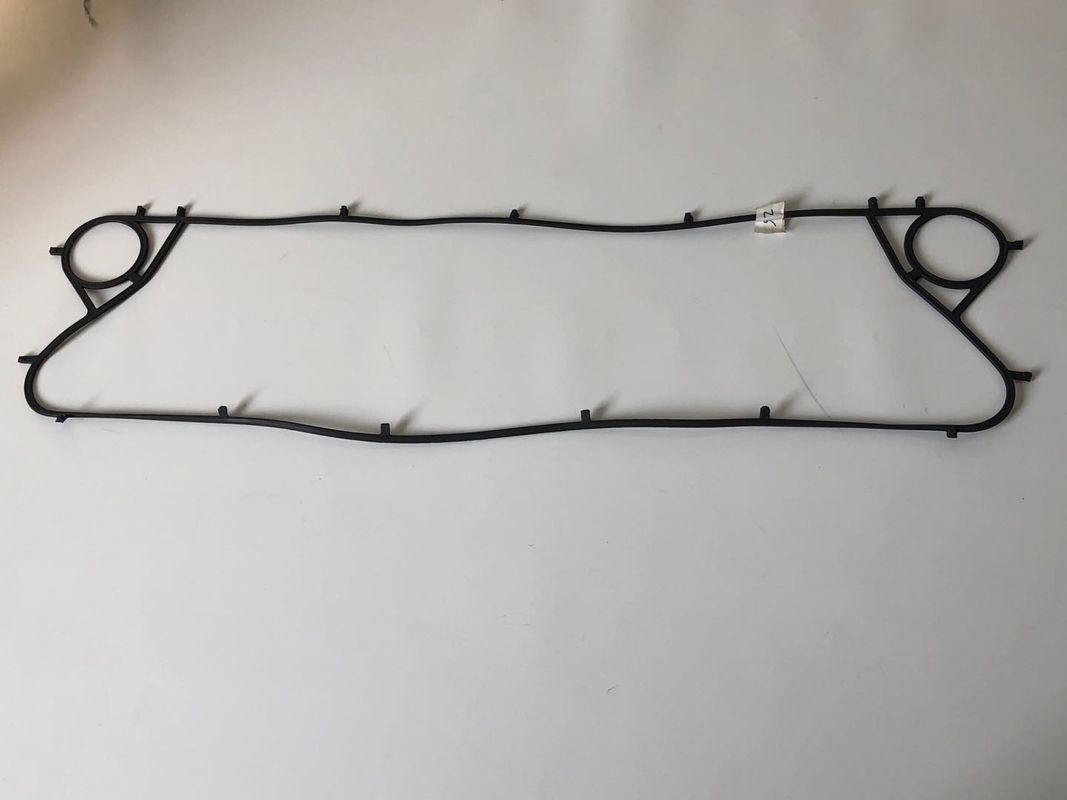

Sigma 26 Product Details
Plate heat exchanger AND Plate with gaskets for sale.
Plate and frame heat exchangers, titanium heat transfer plate, NBR/EPDM gasket.
Sigma 26 Plate Quality
| Material | Fluid Media |
| Stainless steel(Alloy 304,Alloy 316) | Water, river water, edible oil, mineral oil |
| Ti,Ti-Pd | seawater, brine, and chloride |
| 20Cr,18Ni,6Mo(254SMO) |
sulfuric acid, sparse salified aqueous solution, an aqueous solution of an inorganic |
| Ni |
High temperature, high concentration caustic soda |
| HASTELLOY(C276,D205,B2G) | concentrated sulfuric acid, hydrochloric acid,phosphoric acid |
Sigma 26 Gasket Quality
| Rubber Type | NBR | EPDM | VITON/FKM | HNBR |
| Application Temperature | -20°C- +130°C | -50°C-+150°C | -30°C-+251°C | -15°C- +160°C |
| Fluid Media |
Water Sea water Mineral oil Salt brine |
Hot water Steam Acid Alkali |
High temperature resistance Strong oxidants Oil Acid and alkali |
High temperature mineral oil and water |
| Feature | Easier to replace than the traditional gasket, high pressure, high temperature, longer life, should not be leaked |
|||
Sigma 26 Production Introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).

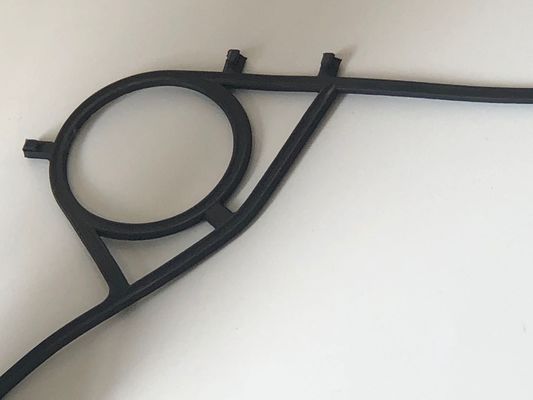

Sealing Principle
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Sigma 26 Gasket Feature
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
Why Choose Us?
Package:standard export carton, plywood case
