1.5MPa N35 Type Apv Heat Exchanger Gaskets For Cooling

APV Plate Heat Exchanger Plates and Gaskets N35 Type for Cooling Applications

N35 Model Plate Heat Exchanger Operation & Configurations

Plate heat exchangers are one of the most versatile and cost-effective methods for the heating and/or cooling of fluids. The basic concept uses a corrugated heat transfer plate to separate the hot fluid from the cold and transfer the heat between the fluids.



The seal between the plates is established by a peripheral gasket which also separates the through ports and flow areas with a double barrier. The gasket either allows the fluid to flow down the plate channel or by-pass it to the adjacent plate channel as depicted in Figure 1.



Plate heat exchangers can be used in a variety of different configurations.



One configuration is closed circuit cooling, where the dirty cooling medium such as sea, river, lake or tower water is isolated at the plate heat exchanger and clean treated water is continually recirculated through the process plant. This configuration, as shown in Figure 2, protects process equipment from the dirty cooling fluid.




N35 Model Plate Heat Exchanger Specification


Surface Area	0.36㎡
Plate Theta Angle	Horizontal 120 ° Vertical 120 °
Connection Diameter	85 mm
Plate Corrugate Thickness	2.8 mm
Plate Centre Length* Width	1069 * 238 mm
Plate Shape Length*Width	1202 * 371 mm



N35 Frame Dimensions



FRAME	Connection Diameter (Inches)	Maximum US GPM	Standard Frame Length (Inches)		Maximum Surface Area (ft²)
			Minimum	Maximum
SR1	1.5	125	17	31	150
SR2	2.0	200	20	59	650
N35	3.0	460	16	98	1900
Q030	4.0	800	40	104	1550
Q055	4.0	800	40	104	2850

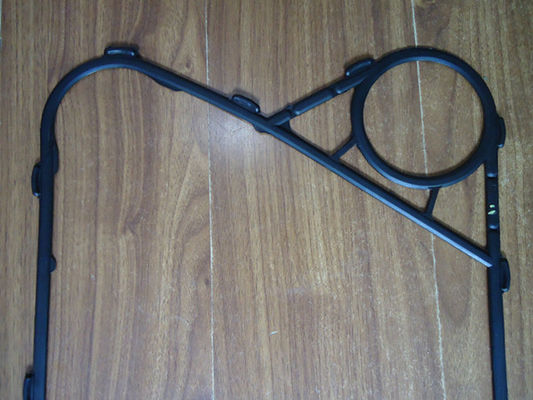

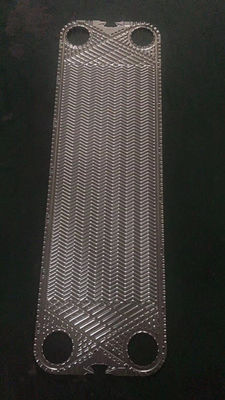

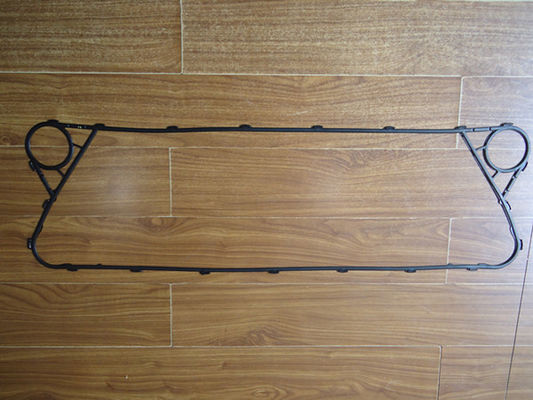

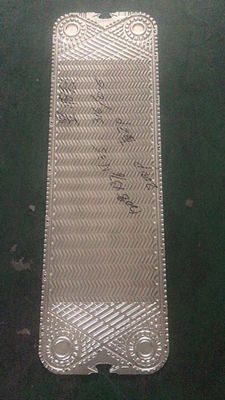

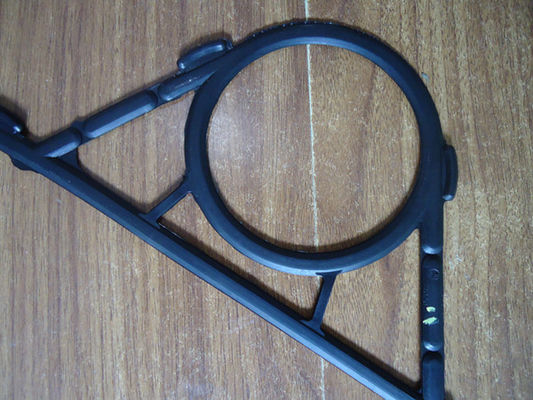

N35 Plate Heat Exchanger Gasket & Plate Picture







N35 Plate Heat Exhcanger Features & Advantages & Benefits



Plate heat exchangers play an important role in maximizing the use of energy in many heating and cooling processes by transfering heat efficiently and recovering heat for reduced energy use and environmental impact.



N35 plate heat exchangers are used for heating, cooling, condensing and evaporation duties for several processes and applications across industries - including oil and gask, marine, chemicals, petrochemicals, power generation, general industries, HVAC applications, and food & beverage industry. With a century of experience and a huge installed base worldwide, M&C Heat Parts are proven designs which make a critical contribution to the performance, efficiency, and reliability of customers' processes year after year.



Features	Advantages	Benefits
Wash board plate design	Promotes turbulence, reduces fouling and optimize CIP flow	Maximised run time Gentle product treatment
ParaClip gasket system	Interlocking gasket support for better sealing integrity	Improved gasket life Reliable operation
Parallel flow pattern	Efficient product dirstribution and even heat treatment Less different plate variants compared to diagonal flow plates	Good heat recovery effect  Reduced spares parts stock required


OEM & ODM PHE Gasket Parameters

Gaskets used in plate heat exchangers must have durability in various liquid qualities and temperature / pressure conditions. M&C has prepared the following gasket materials in order to support a wide variety of applications.


Material	Max Use Temperature	Hardness	Application Media
NBR	120 ℃	76±2	Alkane, alkane and other non-polar media, fuel oil and other mineral oil; Lubricants; Animal and vegetable oils; Hot water, saltwater, etc
NBR-HT	140 ℃	76±2
HNBR	150 ℃	76±2
EPDM	150 ℃	80±2	Water, steam, atmosphericozone, non-petroleum-based; Ketone; Alcohols polar medium etc
HEPDM	170 ℃	80±2
Viton A	180 ℃	80±2	Acid, Alkali, Organic Solvent, Hot oil
Viton A(OIL)
Viton B
Viton G	200 ℃	80±2	Strong Acid, Hot oil saturated steam hot oil
CR	-40~60℃	75±2	Refrigerant


OEM & ODM PHE Plate Parameters



The plates are specially selected from various patterns so as to achieve optimum area and cost effective heat exchanger for each unit. These plates can be classified into three type, H type, L type, Mix type.



Plate Corrugate



Low angle channel arrangement for lower allowable pressure drops requirement applications;



Mixed channel arrangement for optional arrangement to gain the optimized performance;



High angle channels arrangement for higher thermal performance and allowable pressure drops requirement applications



The Standard Materials



304 Stainless Steel



This is the lowest cost heat transfer plate material. It has low corrosion resistance and is usually only available in a thickness of 0.5mm. This type of heat transfer plate is typically used in HVAC applications.



316 Stainless Steel



This is the most common heat transfer plate material and is used in many applications. 316 stainless steel has a high corrosion resistance and is typically available in thickness from 0.5mm to 0.8mm.



Titanium



This type is very resistant to chemical attack, including most acids, chloride, seawater and chlorine chemicals. This thickness of titanium is usually from 0.5mm to 0.6mm.



Hastelloy C276



Other common names: Alloy C276, Hastelloy C, Inconel® C-276, Hastelloy C276.

Hastelloy C276 is a nickel-molybdenum-chromium superalloy with tungsten added for excellent corrosion resistance in a variety of harsh environments. Alloy C-276 is widely used in the harshest environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and acid natural gas recovery. The thickness can range from 0.6mm to 0.8mm.



SMO 254



Sandvik 254 SMO is a high-alloy austenitic stainless steel developed for use in seawater and other aggressive chloride-bearing media. Thickness available from 0.6mm to 0.8mm.



PHE Plate Feature



	FEATURE	ADVANTAGES	WHAT'S IN IT FOR YOU!
A	DISTRIBUTION AREA	Efficient Flow Distribution	Prevents Mal-Distribution
B	CORRUGATED PLATE PATTERN-HEAT TRANSFER AREA	Promotes Turbulence, Minimize Fouling	Excellent heat recovery effect Maximize run time
C	PLATE LOCKING SYSTEMS	"Corner lock" and " bubble lock" concepts ensure a stable and well aligned plate pack when the unit is closed	Safe and economic operation High serviceability Minimum service downtime
D	EASYCLIP GASKET SYSTEM	Bevelled gasket edges easily clip into place using your flingers Stays securely in place and provides high sealing integrity	Reliable operation Easy and quick to replace No special tools needed









PHE Application Areas/Occasions


Chemical	Coustic Soda, Fertilizer, Petrochemical, Oil Refinery, Oil & Fat, Pharmaceutical, Sulfuric Acid Cooling
Food	Milk, Beer, Soft Drink, Sauce, Wine, Skid mounted Sterilizer
HVAC	Air-Conditioning, Top water heating
Steel Mill	Blast Furnace, Continuous Casting, C.O.G, Plating & Galvanizing, Blast furmace cooling
Metal	Plating, Quenching, Anodizing, Painting
Pulp & Paper	Black Liquor, White Liquor, Digester, Heat Recovery
Textile	Synthetic Fiber, Spinning, Dyeing
Central Cooling	Sea Water, River Water, Power Station, Co-generation, Marine and many others.





N35 Plate Heat Exchanger Cooling Applications



• Seal water for steam turbines
• Turbine lubricating oils
• High-quality water used in stator cooling passages
• Gland sealing oils
• Transformer oils
• Spent fuel element pond water
• Neutron shield
• Energy stand by
• Closed loop cooling using sea, river or cooling towers
• Pressure vessel cooling



Plate Heat Exchanger Picture











M&C Heat Parts Company Profile



M&C Heat Parts Co., Ltd is founded in Wuxi, Jiangsu. M&C is specialized in designing and manufacturing high quality heat transfer equipment. The range of products comprises plates & gaskets, plate heat exchangers, gasketed heat exchangers and brazed heat exchangers. Thus, as one of the few producers worldwide, M&C offers solutions with optimum thermodynamic designs for different industries and virtually all applications.

M&C provide you with one-stop accessories service, multuple-brand & multiple model alternatives for your choice. We'll meet all your requirements of plate heat exchanger and keep your machine running contunously through our rich storage and quick response.

Moreover, we have a strict quality control and after-sales service system, from material purchasing to finished product package until the product received in good condition. Our products have been widely used all over the world in various fields.
