Vicarb V20 PHE AISI316L Plates and NBR Gaskets

Vicarb V20 Plate Gasket Spares for Gasketed Plate Heat Exchanger From China



Plate Heat Exchanger General Description- Terminology







Note: Frame SAT provided with straight nozzles (models V28 to V280)

          Frame SAT provided with elbows (90°) (models V2 to V20)



Major Components

• FIXED and MOBILE HEADS are made of thick, rigid, pressure vessel quality steel plates.
• TOP GUIDE BAR, attached to the fixed head and the foot support. It supports the plate pack and mobile head allowing easy disassembly of the exchager for maintenance.
• BOTTOM GUIDE BAR, keeps the plates in position and ensures that they are centered.
• TIE RODS are evenly spaced around the periphery of the exchanger to clamp the plate pack between the fixed and mobile heads. Hydraulic cylinders may be used for tightening and loosening of the plate pack.



Terminology



Connection nozzles are designated by a letter and a number. F is for fixed head, M is for mobile head.

V20 Model Plate Heat Exchanger Specification


Surface Area	0.2㎡
Plate Theta Angle	51° 120 °
Connection Diameter	70 mm
Plate Corrugate Thickness	3.5mm
Plate Centre Length* Width	875 * 130 mm
Plate Shape Length*Width	989 * 241 mm



V20 Plate Heat Exchanger Technical Information



- POSITION OF UPSTREAM FLOW FLUIDS INLET AND OUTLET



• There are 4 possibilities to connect the primary and secondary fluids. Anyway natural flow has to be respected ( for example steam flows from the top to the bottom).
• Inlets and outlets positions are defined on specification sheets.

V2 to V20 INCLUDED
	1 PASS/ 1 PASS		NB OF EVEN PASSES		NB OF ODD PASSES
	INLET	OUTLET	INLET	OUTLET	INLET	OUTLET
1) Circuit 1      Circuit 2	F1 F3	F4 F2	F4 M4	M3 F3	F1 M4	M3 F2
2) Circuit 1     Circuit 2	F2 F4	F3 F1	F3 M3	M4 F4	F2 M3	M4 F1
3) Circuit 1     Circuit 2	F3 F1	F2 F4	M4 F4	F3 M3	M3 F2	F1 M4
4) Circuit 1     Circuit 2	F4 F2	F1 F3	M3 F3	F4 M4	M4 F1	F2 M3

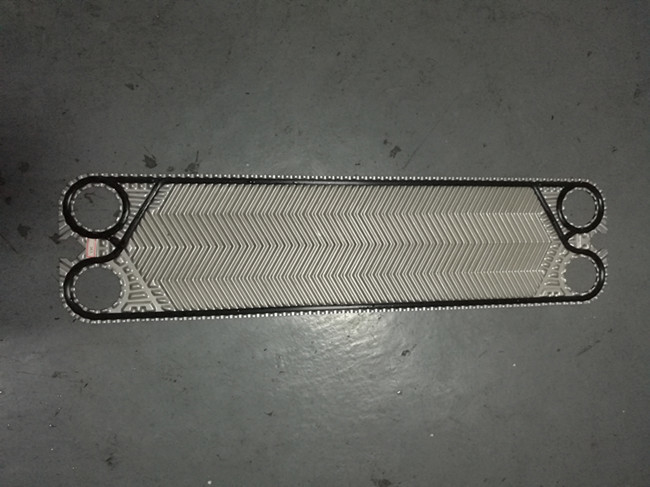

V20 Plate Heat Exchanger Gasket & Plate Pictures







V20 FRAME



• FIXED HEAD - Marking seen by an observer placed in front of the exchanger facing the fixed head;
• MOBILE HEAD - Marking seen by an observer placed behind the exchanger facing the mobile head.
• The plates are mounted with gaskets facing to the fixed head;
• The ends of the plates are labeled N(North) and S(South).
• The plates are numbered from the fixed head to the mobile head, the first plate is assembled with the 4 corners gasket;
• The first plate is usually mounted with North at the top and then South at the top alternatively, etc...

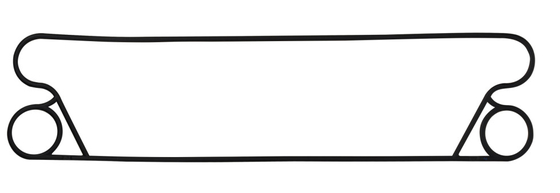

STANDARD GASKETS ORIENTATION FOR V2 TO V20



The gaskets are always fitted on the same side, ports isolated are NE-SE

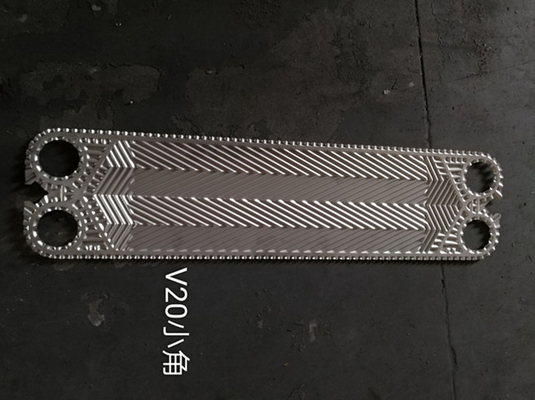

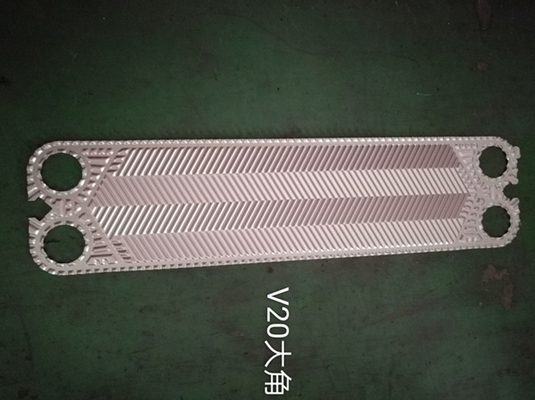

V20 Plate



Ordinary special plates utilisation V2 to V20 for configuration 1 PASS / 1 PASS EVEN/EVEN - ODD/ODD

Plate Heat Exchanger Maintenance



- Manual Cleaning



Loosen the plate pack, take the tie rods off, translate the the mobile head against the foot, and slide the plates apart so that they hang separately to allow cleaning by brush or pressurized water.



When using high pressure water, the plates have to be laid flat to avoid damage.

• Never use metallic brush which might cause beginning of corrosion on the plates.
• Be careful not to damage the tightness gaskets and ensure they are good before tightening the frame.

-Chemical Cleaning



Cleaning the plates without disassembling the exchanger is possible. Connect a cleaning system on the holes of the exchanger, and make the suitable liquid circulate in each circuit. Make sure of the good withstanding of the plate materials, connections and gaskets.



IMPORTANT NOTE! Never use Hydrochloric Acid
