S8 S8A Sondex Danfoss Heat Exchanger Seal For Small Sized Pasteurization

S8/S8A Sondex/Danfoss Plate Heat Exchanger For Small-Sized Pasteurization Used in Food Industry

S8/S8A Plate Heat Exchanger Design Principle




The type S4A and S8A plate range with lengths up to 0.75m (2.5 ft) and a "long" thermal pattern will cover many duties up to 6 m³/h (26 gpm) in a single pass solution, meaning that all the connections are on the head side, This will ensure easy pipe- and service work, and by dismantling the exchanger for service, no pipes need to be removed.



This plate range is designed for a small-sized pasteurization up to 3.000 l/h (depending on the type of product and the temperture profile) and ensures a gentle and soft product treatment.



The heat transfer is obtained, when the warm medium transfers energy through the thin, strong flow plates between the channels and delivers it to the cold opposing medium without mixing the two media. Counter-current flow creats the optimal efficiency. The plate- and inlet design allows effective,easy CIP (Cleaning in Place) of all "flow" surfaces.

S8/S8A Model Plate Heat Exchanger Specification


Surface Area	0.08㎡
Plate Theta Angle	Horizontal 130° Vertical 130°
Connection Diameter	28mm
Plate Corrugate Thickness	2.35 mm
Plate Centre Length* Width	656*70 mm
Plate Shape Length*Width	724*140 mm

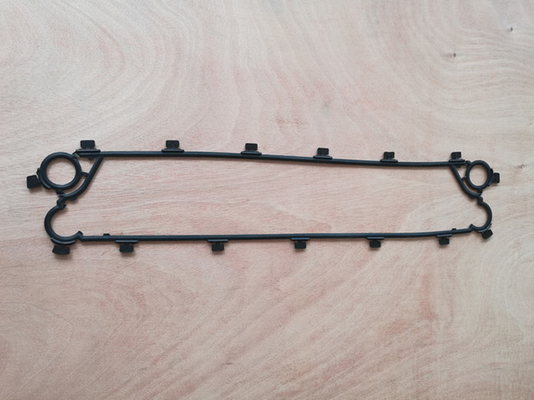

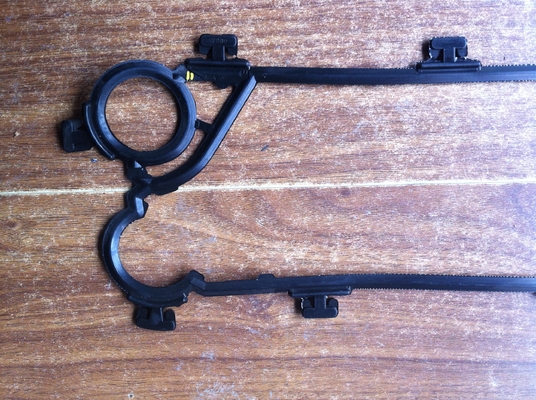

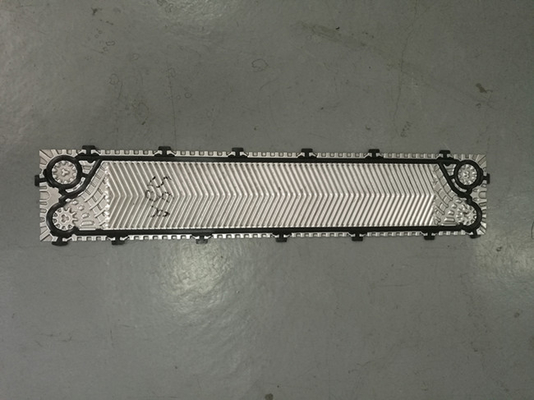

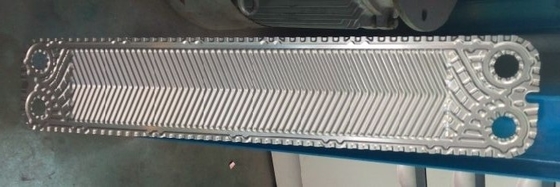

S8/S8A Plate Heat Exchanger Gasket & Plate Pictures









S8/S8A Frames



Number of Plates	L(frame length)(mm)	W(mm)	H(mm)	Weigth max,empty(kg)	Connection type
S8A FG16
7-19	275	200(7.87")	758(29.84")	74	DN25/1" Dairy Union
20-30	325			79
31-53	425			92
54-76	525			105
S8A FS16
7-55	448	200(7.87")	913-943(35.95"-37.13")	77	DN25/1" Dairy Union
56-75	548			83
76-95	648			109
96-124	798			140



S8/S8A Plate Heat Exchanger Technical Data



Type		S1	S4A	S6A	S8A
Max. working pressure	PN (bar)	10.16
Max. operating temperature	°C	Up to 180
Min. operating temperature		-10
Flow medium		Water and different fluids, steam
Volume/channel	I	0.09	0.17	0.13	0.21
Connection size		DN32/1.25"
Connection type		1.25" pipe or threaded pipe in stainless steel or titanium(other materials available on request) DN 25/1" Dairy union (for food/sanitary industry frames only)
Plate material		Stainless steel EN 1.4404(AISI 316L), EN 1.4301(AISI 304), SMO254, Hastelloy  C276, titanium GR.1 Other materials available on request
Plate thickness	mm	0.5  Other materials available on request
Gasket material		NBR, EPDM, FKM  Other materials available on request
Gasket attachment type		Sonder Lock
Liners in connections		Rubber NBR, EPDM, FKM Stainless steel EN 1.4404(AISI 316L), EN 1.4301(AISI 304), SMO254, Hastelloy C276, Titanium Gr.1
Frame		Painted frame, color RAL 5010 (other colors available on request) Stainless steel frame, designed for the sanitary applications (e.g. food and dairy industries)
Frame painting specification		Painting available for corrosion categories C2L, C4M, C5M



PHE Plate Feature



	FEATURE	ADVANTAGES	WHAT'S IN IT FOR YOU!
A	DISTRIBUTION AREA	Efficient Flow Distribution	Prevents Mal-Distribution
B	CORRUGATED PLATE PATTERN-HEAT TRANSFER AREA	Promotes Turbulence, Minimize Fouling	Excellent heat recovery effect Maximize run time
C	PLATE LOCKING SYSTEMS	"Corner lock" and " bubble lock" concepts ensure a stable and well aligned plate pack when the unit is closed	Safe and economic operation High serviceability Minimum service downtime
D	EASYCLIP GASKET SYSTEM	Bevelled gasket edges easily clip into place using your flingers Stays securely in place and provides high sealing integrity	Reliable operation Easy and quick to replace No special tools needed







PHE Gasket Type



Please check their are three common model gasket type are aways used in Sondex brand.





PHE Plate Type



"Start plate with gasket""Left hand flow plate with gasket""Right hand flow plate with gasket" End plate with gasket"



                        Thermal Long Plate                                                  Thermal Short Plate





PHE Problem Solving



If you have problems with your plate type heat exchanger, in most cases these can be solved by your own personnel. Please find below a summary of possible problems as well as possible causes and solutions.



A condition for the continuous proper functioning of your plate type heat exchanger is in strict compliance with the permissible values for pressure and temperature mentioned on the name plate.

Exceeding these values, even as a short-lasting pressure peaks will cause damage to the unit and be the cause of problems.



To avoid costly repairs, we advise you to have the installation work and maintenance carried out by properly trained personnel. You can also contact us.



Problem	Possible Cause	Possible Solution
Leakage	At the connections	Check the rubber liners (if fitted) Check the flange gasket(if fitted) Check the O-ring Fit the pipes tension-free
	Mixing of primary and secondary   circuit	Check the plates for holes and/or cracks
	In plate package	Check the assembly Check the condition of the gaskets Check the proper position of the gasket
	The operating Conditions deviate   from the specification	Adjust the operating conditions
Insufficient   Capacity	Air in the system	De-aerate the pipe system Check the pipe work for possible air traps
	The operating conditions deviate   from the specification	Adjust the operating conditions
	The heat exchanger is dirty	Clean the heat exchanger
	The connections have been   interchanged	Redo the pipe work
Too high   pressure drop	Flow large the design flow	Adjust the flow
	Channels in plate(s) blocked	Flush/clean
	Incorrect measurements	Check the pressure indicator
	Medium deviating from the design	Addition of for instance anti-freeze will increase the pressure drop
	Air in the system	De-aerate the pipe system Check the pipe work for possible air traps



Plate Heat Exchanger Pictures
