DN50 Connection Renewable Heat Exchanger Seals S20 S20A Sondex Gaskets

DN50 Connection Size Renewable Energy Sondex Plate Heat Exchanger S20/S20A Plates And Gaskets

S20/S20A Plate Heat Exchanger Construction


Frame	Plates	Gaskets
The heat exchanger consists of a frame plate(head), a pressure plate(follower), a carrying bar, a lower bar and a column. Tie(clamping) bolts are used to press the plate package together. The size and number is depending on the type of heat exchanger.	The plate package consists of plates with a groove along the rim of the plate and around the ports. The number of plates is, as well as size and dimension, dependant on the thermal output required. Depending on the application stainless steel or titanium plates might be used	The groove provided in the plates holds the special gasket. The purpose of this gasket is to prevent intermixing of the media and leakage to the outside. The gaskets are selected to suit the actual combination of temperature, chemical resistance and possible other conditions to be considered. They can be supplied in Viton, Nitrile or EPDM.

S20/S20A  Model Plate Heat Exchanger Specification


Surface Area	0.2㎡
Plate Theta Angle	55°  125°
Connection Diameter	60mm
Plate Corrugate Thickness	2.6 mm
Plate Centre Length* Width	894*126 mm
Plate Shape Length*Width	998*230 mm



S20/S20A  Plate Heat Exchanger Technical Information





Frame	Painted frame Stainless steel frame, designed for the food and daily industry Both frames comes with clamping bolts placed around the frame edge.
Design Pressure	Painted frames: 1.0/1.5/2.5 Mpa. (145/217/362 PSI) Stainless steel frame: 1.0/1.6 Mpa (145/232 PSI)
Intermediate Frames	Intermediate frames and corner blocks in stainless steel.
Connections	DN150/6" flange in carbon steel, rubberlined or cladded with AISI 316 or titanium DN100/4", DN125/5" and DN150/6" dairy unions According to all known standards.
Plate Material	AISI304/316, 254 SMO and titanium.  Other materials available on request.
Gaskets	The gasket is placed in the closed gasket groove, that is formed by the plates. This design makes the plate suitable for high working pressures. The plates are strongly guided during the assembly of the plate heat exchanger. Materials: NBR, EPDM and Viton. Other materials available on request.
Extra Equipment	Safety cover in stainless steel Insulating jacket Assembling spanner Foundation feet for common frame Instrument flange Thermometer and manometer

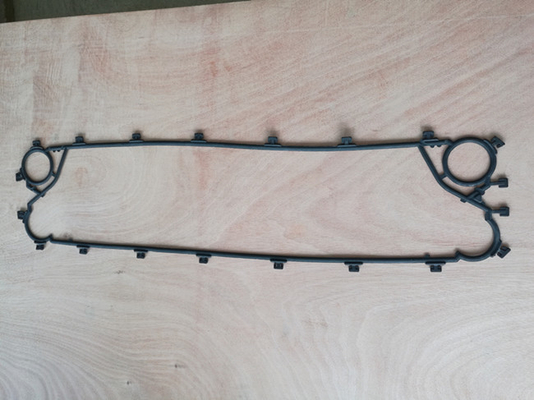

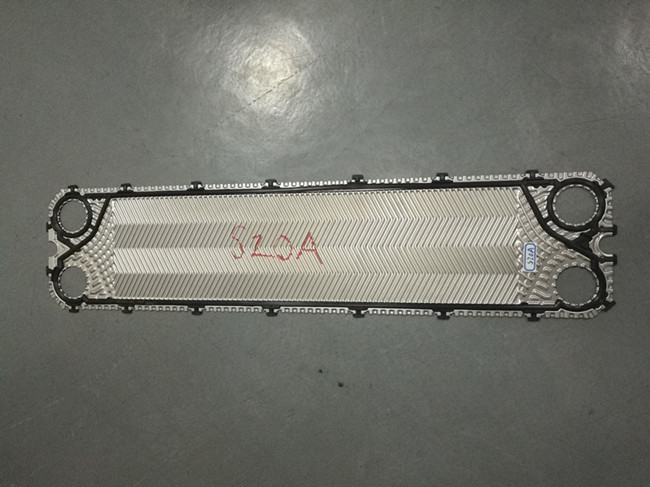

S20/S20A  Plate Heat Exchanger Gasket & Plate Pictures







S20/S20A Frames



Number of Plates	L(frame length)(mm)	W(mm)	H(mm)	Weigth max,empty(kg)	Connection type
S20A IS16
7-39	429	300(11.81")	1244.6(49")	201	DN50 flang or 2" threaded pipe BSP
40-76	629			242
77-150	1029			326
151-206	1329			389
207-243	1529			430
244-336	2029			534
S20A IS25
7-37	434	300(11.81")	1244.6(49")	242	DN50 flang or 2" threaded pipe BSP
38-73	634			296
74-144	1034			404
145-198	1334			485
199-233	1534			539
234-323	2034			675

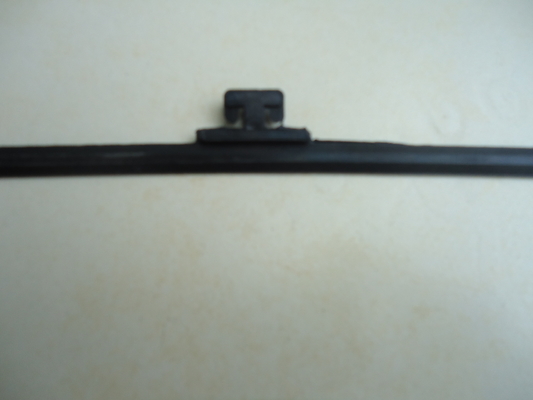

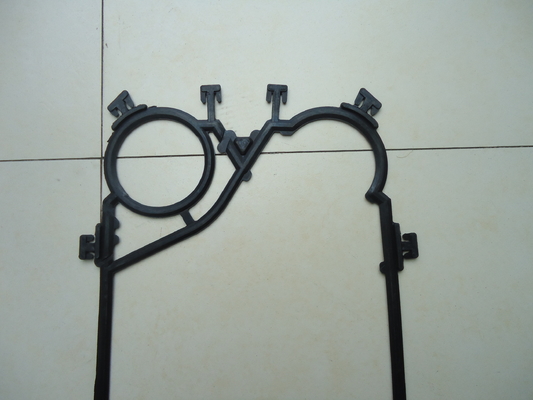

PHE Gasket Type



Please check their are three common model gasket type are aways used in Sondex brand.





PHE Plate Type



"Start plate with gasket""Left hand flow plate with gasket""Right hand flow plate with gasket" End plate with gasket"



                        Thermal Long Plate                                                  Thermal Short Plate







• Hanging System: Plates feature a reinforced hanging system. The hanging system helps the plates withstand the powerful tightening force, and prevents misalignment and corner collapses. This makes plates a solid investment, as the lifetime of the plates is increased and service duration is reduced.
• Distribution area: The distribution area on plates is designed to prevent stagnant zones, and ensures an even distribution of the media across the entire plate. Furthermore, the pressure drop in the distribution area is minimal and used on the heat transmission area instead, which results in better heat transmission efficiency.
• Heat transmission area: With a maximized heat transmission area, we are able to reduce the total number of plates needed for optimal performance. Our plate patterns are fine-tuned for each application and provide the best possible conditions for heat transfer.M&C solutions let you dial up your efficiency and dial down your energy consumption.



M&C Plate Heat Exchanger Service and Maintenance



We can help you avoid problems before they arise with a customized program, ranging from full maintenance support to ad hoc servicing. We will work out the most suitable schedule with you to carry out performance diagnostics, plate cheaning and inspections, fault checking with quick replacements, and repairs as required.



Our skilled technicians will swiftly dismantle your heat exchangers and expertly clean each plate using economic, environmentally - friendly methods. We will have your installation up and running at full capacity again in no time. We are fully equipped to perform CIP(Cleaning in Place) where possible.



If your plate heat exchanger is faulty or under-performing, our repair services will restore your installation to working order in an instant. We substitute defective or worn gaskets, as well as damaged or leaking plates, with originals or high-quality replacements that perfectly match the specifications of your installation.



We can also analyze your current setup to determine if the installation can be optimized, for example by increasing the number of plates in the heat exchanger. This is an upgrade for your entire system, as more efficient heat exchangers improve the overall performance while lowering the energy costs.



Whatever your needs, our dedicated service teams are standing by to help.



Quality Control



Our quality control inspectors meticulously examine the plates for defects. We conduct dye tests to discover potential leaks in the plates, and perform gas tests for ammonia based plate heat exchangers.



Every plate must meet our strict quality demands before being shipped to our customers, to ensure a durable solution with a long lifetime.



We are able to perform diagnostics on-site. If we uncover leaking plates in your current installation, we can replace them with high-performance plates that increase the relability and efficiency of your system.





Plate Heat Exchanger Pictures









M&C Heat Parts Company Profile



M&C Heat Parts Co., Ltd is founded in Wuxi, Jiangsu. M&C is specialized in designing and manufacturing high quality heat transfer equipment. The range of products comprises plates & gaskets, plate heat exchangers, gasketed heat exchangers and brazed heat exchangers. Thus, as one of the few producers worldwide, M&C offers solutions with optimum thermodynamic designs for different industries and virtually all applications.

M&C provide you with one-stop accessories service, multuple-brand & multiple model alternatives for your choice. We'll meet all your requirements of plate heat exchanger and keep your machine running contunously through our rich storage and quick response.

Moreover, we have a strict quality control and after-sales service system, from material purchasing to finished product package until the product received in good condition. Our products have been widely used all over the world in various fields.
