NT150L Kelvion Platten Customized GEA Gasket And Plates

NT150L H/V GEA-Kelvion Platten Customized Plate Heat Exchanger



Plate Heat Exchanger Introduction



No.	Component	No.	Component
1	Top beam	6	HE plates
2	Piping connections	7	Bottom guide beam
3	Fixed plate	8	HE plate gasket
4	Column	9	Nut on tensioning bolt
5	Loose plate	10	Tensioning bolts



NT150L  Model Plate Heat Exchanger Specification


Surface Area	0.85㎡
Plate Theta Angle	Horizontal  120 °   Vertical  120°
Connection Diameter	155 mm
Plate Corrugate Thickness	3.2 mm
Plate Centre Length* Width	1572*314 mm
Plate Shape Length*Width	1804*541 mm



NT150L  Plate Heat Exchanger Technical Information





Model	Connection Size	Dim. A	Dim.B	Dim.C
NT150S	6" nominal (DN150)	26.2" (665mm)	70.1" (1781mm)	Up to 159" (4039mm)
NT150L			89.4" (2271mm)



Heat Transfer Plate	316L Stainless,304 Stainless, Titanium, Hastelloy, 904L, SMO254 and others on request
Gasket	NBR, EPDM, Viton and others on request
Pressure Plate	Carbon Steel, Stainless Steel and others on request
Port Connection	Unlined, Metal Lined (Stainless, Titanium and others on request), Welded Neck Flange, threaded nipple and others on request
Maximum Design Pressure	Maximum design pressure is 300 psig(21 bar). Depending on application.
Maximum Design Temperature	Maximum standard design temperature is 330 °F (170 °C).Higher temperatures are available on request.
Approximate Maximum  Liquid Flow Rate	NT50:175 gpm (40 m³/hour) NT100: 830 gpm (190 m³/hour) NT150:1540 gpm (350 m³/hour) NT250:3960 gpm (900 m³/hour) NT350:8380 gpm (1900 m³/hour) NT500:20,000 gpm (4000 m³/hour)

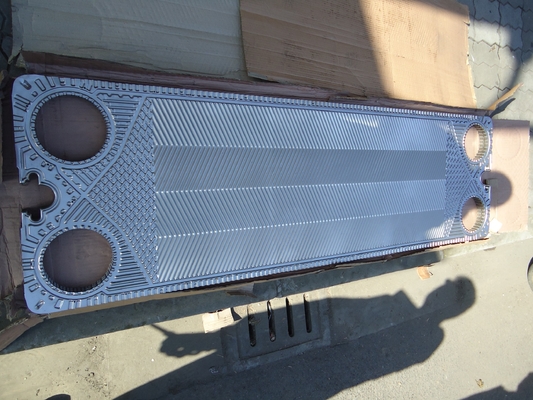

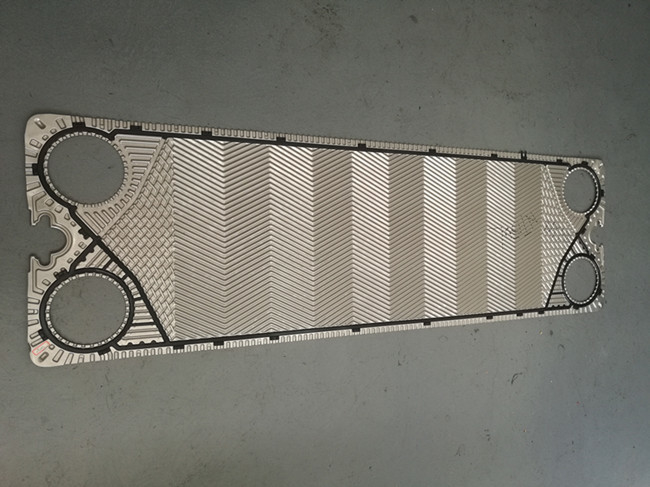

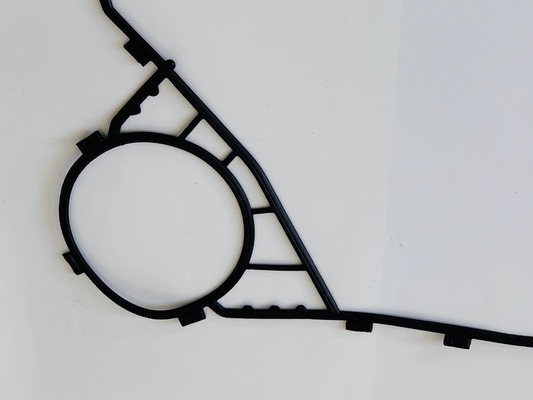

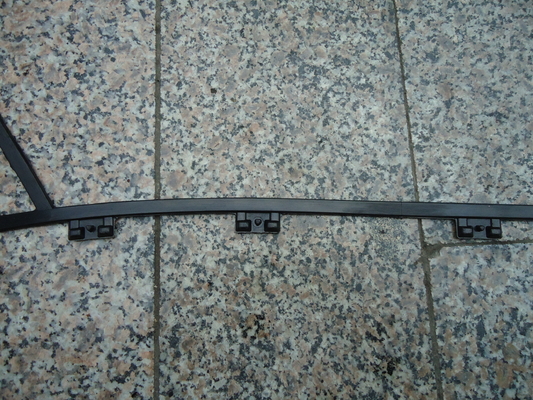

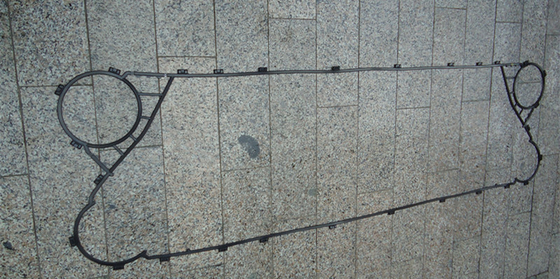

NT150L Plate Heat Exchanger Gasket & Plate Pictures









NT150L Plate Heat Exchangers Application And Benefits



Application:



With M&C Heat Parts product group, the NT series is a gasketed plate heat exchanger for multiple applications. Variety of materials that work across a broad range of liquids, temperatures and pressures. Well-suited for these liquid-to-liquid applications:



HVAC	Chemical	Sugar	Marine
Food	Renewable Energy	Power



Benefits:



Versatility-

• The right design, not a "good enough" design. A wide variety of materials, sizes, and plate configurations combine with sophisticated selection software to ensure a perfect selection, whatever your needs.
• The compact footprint allows you to use it in locations that you wouldn't dream of with a shell and tube heat exchanger.

Higher Performance at a Lower Cost -

• Optiwave plate corrugations distribute the liquid evenly across the entire plate width, maximizing heat transfer and minimizing the number of plates (and cost) required.

Convenient Maintenance-

• PosLoc plate lead-ins cause the plate pack to self-align when re-installing.
• Ecoloc tools-free gaskets make gasket replacement a snap.
• Individual plates mean no heavy lifting tools are needed. Faster more efficient maintenance, with shorter down times.

Long Service Life-

• Careful corrugation design provides the ideal balance of high turbulence and proper fluid distribution, reducing fouling from less than perfect media.



Noted Plate Heat Exchanger Hazards



• The PHE is heavy. If it falls over or falls down during transport, persons may be killed or seriously injured. Transport the PHE to its intended posi- tion with the transport packaging if possible. Use sufficiently dimen- sioned lifting equipment exclusively for handling the PHE at the place of installation. Never stand underneath suspended loads and keep other persons away.
• Upright PHEs have a high center of gravity and may easily tip over. Put up a PHE delivered in a horizontal position only directly before it is installed. Secure the upright PHE against tipping over by bolting it to the ground. If possible, remove the lifting devices used only after the PHE has been fastened to the ground.
• The use of dangerous flow media (explosive, flammable, caustic, toxic) involves danger of chemical burns, fire burns or intoxication. Wear suit- able protective clothing when working on the PHE. Ensure that the PHE is depressurized and empty prior to opening.
• When opening the PHE, sharp-edged HE plates may fall out. Keep HE plates from falling out by having them secured by another person.When processing cold or hot flow media, the surfaces of the PHE may be colder than 0 °C or hotter than 50 °C. This is why PHEs involve the danger of frostbites and burns. Protect persons by a protection against accidental contact and install warning signs relating to frostbites and burns.
• A cutting hazard exists on burrs, threads and the HE plates. Wear protective equipment at all times when working on the PHE.

Plate Heat Exchanger Intended Use



The PHE is a component intended for permanent installation in a plant or a machine. It serves for heat transmission from the heat-releasing flow medium to a heat-accepting flow medium.



We recommend that you put the PHE into operation only after checking if the plant or machine into which the PHE has been integrated meets the appli- cable national regulations, safety rules and standards.



The PHE is a technical equipment and not intended for private use. It is basi- cally designed for mostly stationary use.



The PHE was designed and built specifically for the operating conditions you have specified. The operating conditions are documented in the technical documentation:

• Min./max. allowed pressure
• Min./max. allowed temperature
• Flow rates
• Type and composition of flow media
• Additional loads if allowed
• Deviating from these allowable operating conditions will void the warranty and the operating permit. The same applies to unauthorized essential modifications on the PHE.
• Please contact your Kelvion Sales Office for verifying such requirements and the possibly required modifications.



The intended use also includes:

• Compliance with the present operating instructions and the technical documentation included in the delivery;
• That the plate heat exchanger is in technically flawless condition, i.e. it shows no apparent defects, e.g. loose or missing tensioning bolts, leaks due to defective HE plates and/or frame gaskets.
• Observing the national and international laws, decrees, regulations, guidelines and other rules, e.g. occupational safety and accident preven- tion regulations, applicable at the place of installation even if these are not listed in the present operating instructions.



Plate Heat Exchanger Pictures





M&C Heat Parts Company Profile



M&C Heat Parts Co., Ltd is founded in Wuxi, Jiangsu. M&C is specialized in designing and manufacturing high quality heat transfer equipment. The range of products comprises plates & gaskets, plate heat exchangers, gasketed heat exchangers and brazed heat exchangers. Thus, as one of the few producers worldwide, M&C offers solutions with optimum thermodynamic designs for different industries and virtually all applications.

M&C provide you with one-stop accessories service, multuple-brand & multiple model alternatives for your choice. We'll meet all your requirements of plate heat exchanger and keep your machine running contunously through our rich storage and quick response.

Moreover, we have a strict quality control and after-sales service system, from material purchasing to finished product package until the product received in good condition. Our products have been widely used all over the world in various fields.
