Jiangyin M&C Heat Parts Co.,Ltd
Home ProductsTranter Heat Exchanger Gaskets

Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM

China Jiangyin M&C Heat Parts Co.,Ltd certification
I'm Online Chat Now

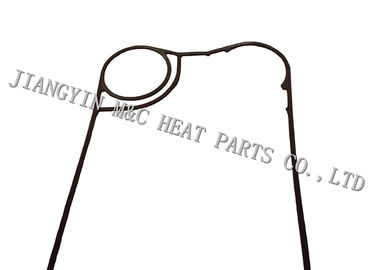

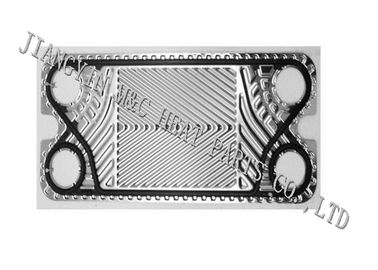

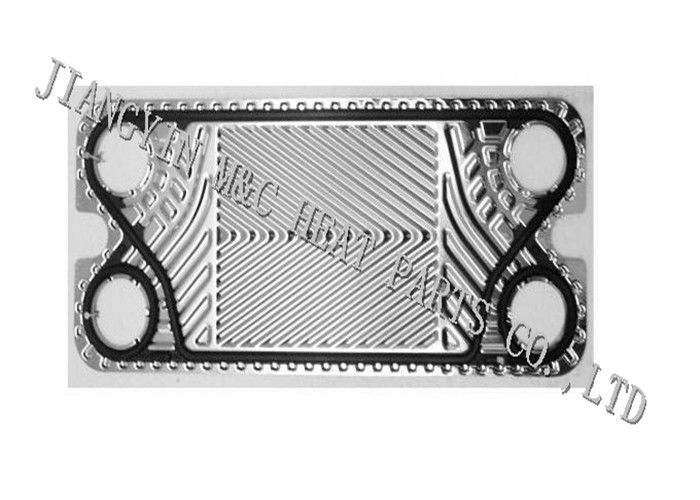

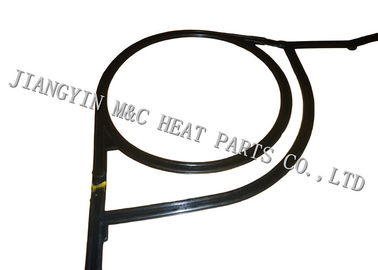

Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM

Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM
Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM

Large Image :  Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: MC
Certification: ISO SGS FDA
Model Number: GX66/GXD66/GXP66
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export Carton,Wooden Case,Plywood
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50000PCS/MONTH
Detailed Product Description
Application: Heater Parts PHE Gasket Plates Material: EPDM/HNBR/HEPDM
Weight: 310g Market: USA/Europe/Asia/South America/North America/Australia/UK Etc.
Temperature Range: -20 To 220 Available Fluid: Water,Acid,Steam,High-temperature Mineral Water Etc
Highlight:

Marine Plate Heat Exchanger Gaskets

,

Heat GXP66 Exchanger Gaskets

,

Durable Tranter Heat Exchanger Gaskets

PHE Gasket And Plate Quality Contrast



High quality rubber gasket: the product surface is smooth, soft, moderate hardness, elasticity, luster appearance is full, telescopic ductility can be good, no flash, no odor or smell partial light, the product can use commonly 3-5 years;



Inferior rubber gasket: product surface is rough, flash trim not neat, after tensile resilience to poor, gloss dark, strong scent and products normally only use a few months to a year, must be replaced!



Quality of plate, plate material containing trace elements, the characteristics of consequence of plate is inconsistent, the same of the same material, but the plate of high and low nickel content will cause the service life of the plate length. Good plate not only depends on the plate of material, design and mold processing, good a shape stamping mold, plate surface is smooth, no cracks;



Inferior plate: the surface of the difference is not obvious, but the service life is short, corrosion resisting compression performance is poorer, it is easy to produce cracks, caused by plate in leak, cannot use, increase the cost.





Structure Principle



Removable plate heat exchanger is made up of many stamping with corrugated sheet in a certain interval, all round through the gasket seal, with overlapping framework and compression screw compression, plate and gasket four Angle hole forming fluid distribution pipe and gathering, reasonably separate hot and cold fluid again at the same time, make its respectively in each panel on both sides of the flow in the flow channel, through the plate heat exchanger.



Marine Plate Tranter Heat Exchanger Gaskets GXP66 Durable HEPDM 0





We make heat exchanger gaskets on stock in order to provide the fastest delivery times in the business. With such a large inventory, we can supply gaskets for highly specialized unit requirements. We manufacture OEM-specified heat exchanger gaskets unlike competitors who are simply resellers.FDA-approved versions of NBR and EPDM are standard for us. We use imported Vtion raw materials to ensure the superior quality. The models we provide can replace the world famous manufacturers.



Gasket Features



Success gaskets can be designed to different assembing type, Such as glue-on,clip-on,snap-on,ball-in etc.



High Quality--- The rubber material are mixed in closed space with controllable pressure and temperature which ensure high production efficiency and excellent quality. Spare parts surface contact with rubber material is polished anti-corrosion.



Reasonable Design--- Parameters of equipment are designed reasonably to distribute material evenly.



Easy To Use--- Adding rubber material from the back door of the equipment, mixing room turns forward by 140°to finish and make the cleaning of room easy.



PLC Controller---PLC controller has perfect controlling function,testing and alarming function and safety secure function,serial interface.



Parameters



Gasket Material Temperature Range ( ℃) Hardness Available Medium
NBR -20 to 110 -75+/-3 Water, Oil, Acid etc
EPDM -30 to 150 80+/-5 Steam, Ammonia, Acid etc
NBR-HT -30 to 160 85+/-5 Mineral Oil, Thermal Oil
EPDM-HT -30 to 180 85+/-5 High temperature water
TFEP -20 to 180 80+/-5 Acid,Glycol,Chloride
FPM -55 to 220 80+/-5 Acid,Glycol,Chloride



FAQ:



  • Can I have your samples?

----- Yes, We can provide samples for you to check our quality.



  • What is your leading time for the products I need?

----- Generally 7 working days. It depends on the quantities you request.



  • Do you have your own factory?

----- Yes, Welcome to visit our factory and check our products.



  • What is the warranty for your products?

----- We provide one year warranty for all the items we sold.



  • What payment terms do you accept?

----- TT/Letter of Credit/Western Union



Any other questions, Feel free to contact us!
