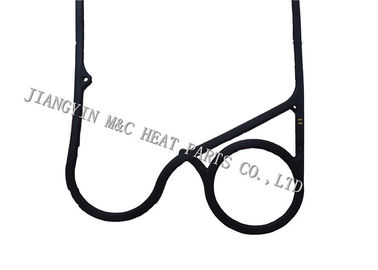

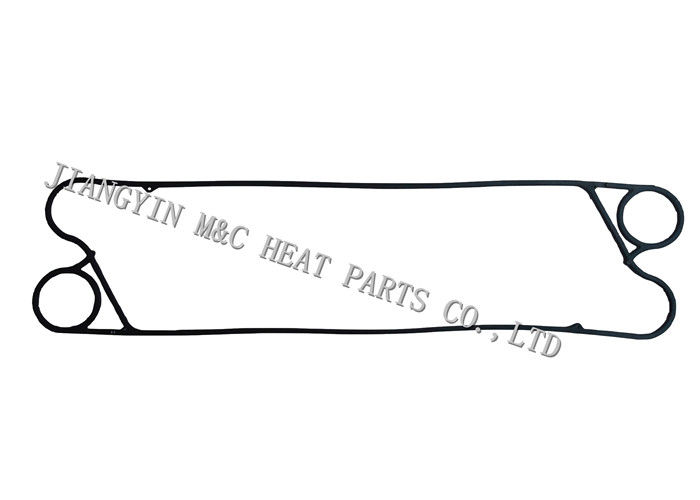

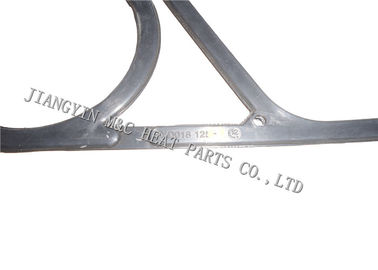

GX18 Heat Exchanger Encapsulated Gaskets Spare Parts Open Mould Design

Plate Heat Exchanger Construction

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.

PHE Gasket And Plate Quality Contrast

High quality rubber gasket: the product surface is smooth, soft, moderate hardness, elasticity, luster appearance is full, telescopic ductility can be good, no flash, no odor or smell partial light, the product can use commonly 3-5 years;

Inferior rubber gasket: product surface is rough, flash trim not neat, after tensile resilience to poor, gloss dark, strong scent and products normally only use a few months to a year, must be replaced!

Quality of plate, plate material containing trace elements, the characteristics of consequence of plate is inconsistent, the same of the same material, but the plate of high and low nickel content will cause the service life of the plate length. Good plate not only depends on the plate of material, design and mold processing, good a shape stamping mold, plate surface is smooth, no cracks;

Inferior plate: the surface of the difference is not obvious, but the service life is short, corrosion resisting compression performance is poorer, it is easy to produce cracks, caused by plate in leak, cannot use, increase the cost.

Our Service

1. Inquiry and consulting support.

2. Sample testing support.

3. Visit our Factory.

After-sales Service

1. Training how to install the machine, training how to use the machine.

2. Engineers available to service machinery overseas.

Factory Workshop

Plate Heat Exchanger Projects
