Product Details:
Payment & Shipping Terms:
|

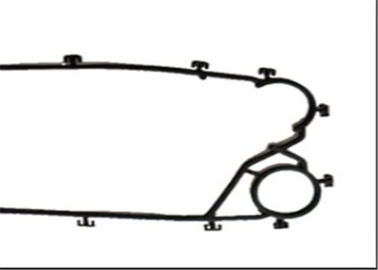

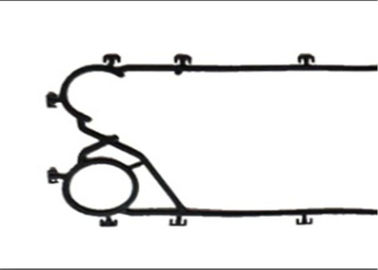

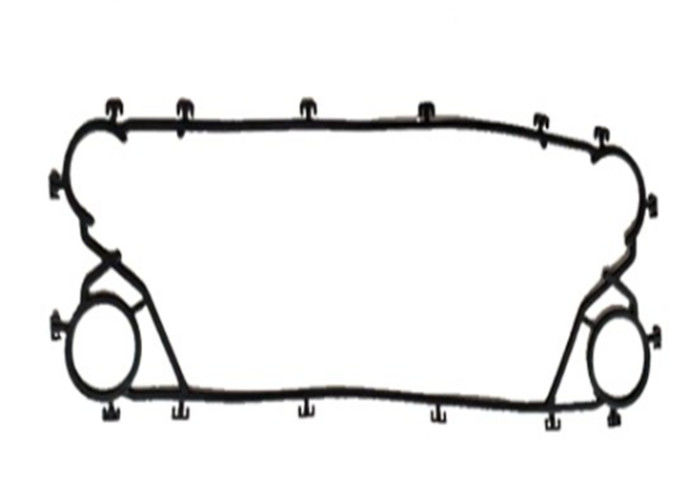

| Product Name: | Heat Exchanger Plate Heat Exchanger Rubber Pad Stainless Steel High Temperature EPDM PAR01 Factory Quality | Plates Material: | EPDM/HEPDM/VITON |
|---|---|---|---|
| Model Number: | AT1309 | Structure: | Plate Heat Exchanger |
| Application: | Liquid To Liquid Heat Exchanging | Warranty: | One Year, One Year |
| Highlight: | mueller replacement parts,mueller hydrant parts |
||
Product Structure
Plate heat exchanger heat transfer plate is made of corrugated shape, in a certain interval, through the rubber gasket compression of detachable heat exchange equipment. Plate assembly, two sets of interwoven, board with board between the sealed rubber gasket to prevent fluid leakage and narrow net form flow channel formed between the two plate heat exchanger plate pressure into various waveform grain shape, to increase the heat exchange plate area and rigid and enables the fluid kick at low velocity of flow and heat transfer enhancement in order to achieve the effect. Plate of the four corners of the hole, has formed a fluid tube and drainage tube, the distribution of the two kinds of heat transfer medium flowing into separate flow, heat transfer through the plate.
Packaging Logistics
Gasket Selection
| Gasket Material | Max. Temp | Application |
| NBR Standard | 100℃/212℉ | Remarkable resistance to oils,solvents and grease. |
| NBR-HT | 130℃/266℉ | |
| HNBR | 160℃/320℉ | |
| EPDM | 150℃/302℉ |
Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). Sensitive to ultraviolet radiation and light. Good chemical resistance to ketones,alcohols,and diluted bases together with certain lubricants. Very low resistance to hydrocarbon solvents and oils. |
| EPDM-HT | 160℃/320℉ | |
| FPM-A | 180℃/356℉ | Resistance to most fluids for industrial use |
| FPM-G | 220℃/428℉ |
High resistance to extreme temperature : -50℃to+220℃. Optimum resistance to chemical product. |
If you have any other questions,Please feel free to contact us!
