Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Plate & Gaskets | Gaskets Material: | NBR, HNBR,EPDM,VITON |
|---|---|---|---|
| Place Of Origin: | Jiangsu China (mainland) | Type: | Plate Heat Exchanger With Gaskets |
| Application: | Heater Parts | ||
| Highlight: | viton gasket,phe gasket |
||
Technical Specification
| Design Code | ASME,PED |
| Plate Material |
SS304,SS316,904L,254SMO,C276 Titanium,Nickel,Incoloy825 |
| Plate Thickness | 0.5mm,0.6mm,0.8mm,1mm |
| Gasket Material | NBR,HNBR,EPDM,HEPDM,FKM(Viton),CR |
| Gasket assembly | Clip on,Lock in,Snap on,Glued |
| Frame material |
Carbon steel,Stainless steel Stainless steel coat |
| Nozzle |
Flange,Rubber insert,Thread Material insert,Clamp |
| Connection size | DN15-DN500 |
| Connection standard | Customized |
| Color | Customized |
| Application | HVAC,Power,Sugar,Marine,Chemical |
Gasket Selection
| Gasket Material | Max. Temp | Application |
| NBR Standard | 100℃/212℉ | Remarkable resistance to oils,solvents and grease. |
| NBR-HT | 130℃/266℉ | |
| HNBR | 160℃/320℉ | |
| EPDM | 150℃/302℉ |
Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). Sensitive to ultraviolet radiation and light. Good chemical resistance to ketones,alcohols,and diluted bases together with certain lubricants. Very low resistance to hydrocarbon solvents and oils. |
| EPDM-HT | 160℃/320℉ | |
| FPM-A | 180℃/356℉ | Resistance to most fluids for industrial use |
| FPM-G | 220℃/428℉ |
High resistance to extreme temperature : -50℃to+220℃. Optimum resistance to chemical product. |

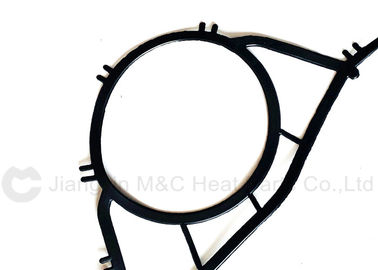

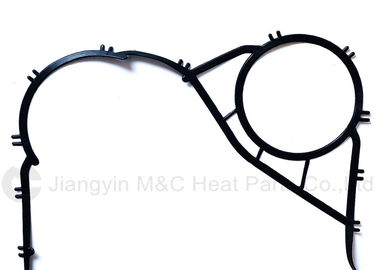

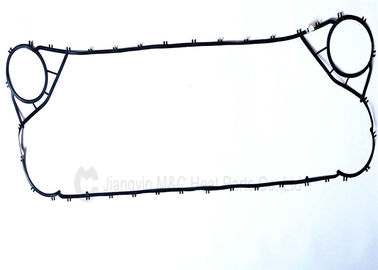

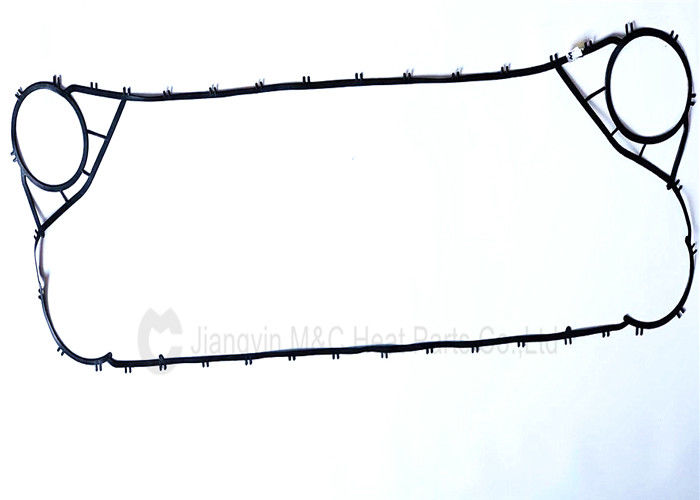

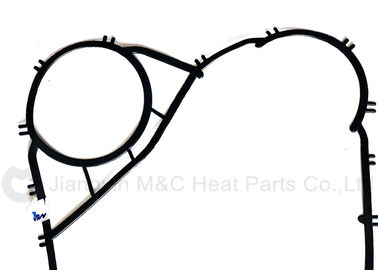

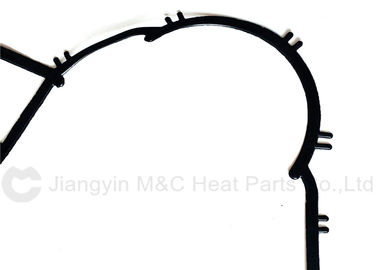

Detailed Image
Packing and Shipping
Contact Person: Mrs. Li.C
Tel: 86-150-6175-1483
Fax: 86-510-8631-0566
