| Material: | SS316/254SMO | Structure: | Plate Heat Exchanger |
|---|---|---|---|
| Plate Tickness: | 0.5/0.6/0.8/1mm | Application: | PHE Parts |
| Liquid Flow Rate: | 2.5m/s | ||
| Highlight: | heat exchanger replacement,plate heat exchanger gasket replacement |
||

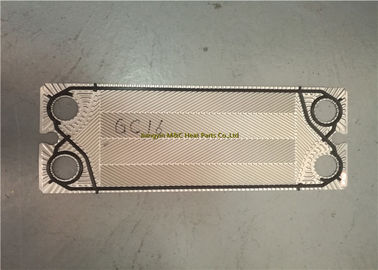

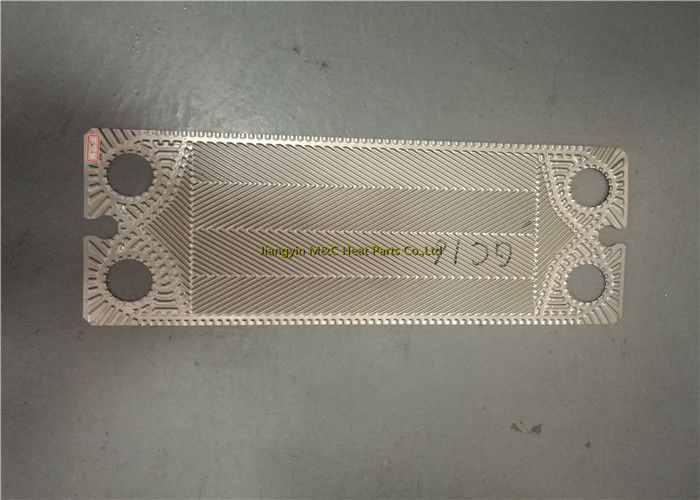

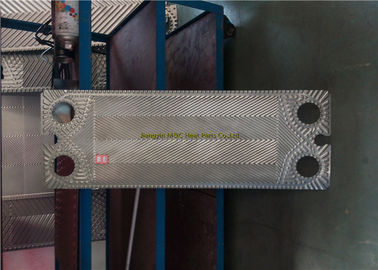

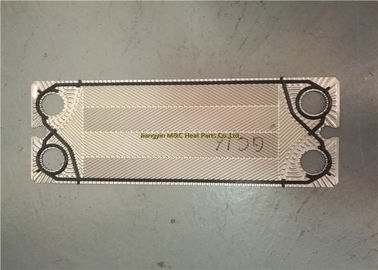

GC16 Basic information of PHE plate
Each plate contains two parts
Metal plate:It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.
GC16 Sealing principle
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of rubber.
Brand Name: M&C
Material: Stainless Steel 316L, Stainless Steel 304, Titanium
Advantage: Produce plastic deformation and have certain strength
Dimension: 1415*496mm
Center of hole distance: 1238*310mm
Corrugation deep: 3mm
Feature
1. Advanced plate design to improve heat transfer efficiency.
2. Uniform distribution of fluid, accurate positioning.
3. Common types of plate heat exchanger plates at home and abroad.
4. Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5. The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6. Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7. Single plate, simplified maintenance.
GC16 Parameters
| Plate Material | Available Medium |
| AISI304, AISI316L | Pure Water, Fresh Water, Mineral Water |
| Titanium | Sea Water, Mineral Oil, Vegetable Water |
| 254SMO | Dulute Sulphuric Acid etc. |
| Ni | Caustic Soda with high temperature and concentraction |
| Hastelloy | Concentration Sulphuric Acid etc. |
Application area
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
