Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Plate Heat Exchanger | Material: | Hastelloy/SS316 |
|---|---|---|---|
| Structure: | Plate Heat Exchanger Plate | Plate Tickness: | 0.5mm/0.6mm/0.9mm |
| Application: | PHE Plate Parts | Dimension: | Centre To Centre: 1075mm*218mm |
| High Light: | heat exchanger replacement,plate type heat exchanger parts |
||
High Pressure Heat Exchanger Plate Sigma 48 SS304 SS316 Heat Exchanger Technology

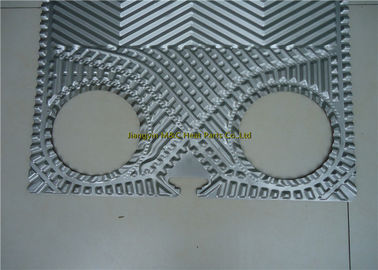

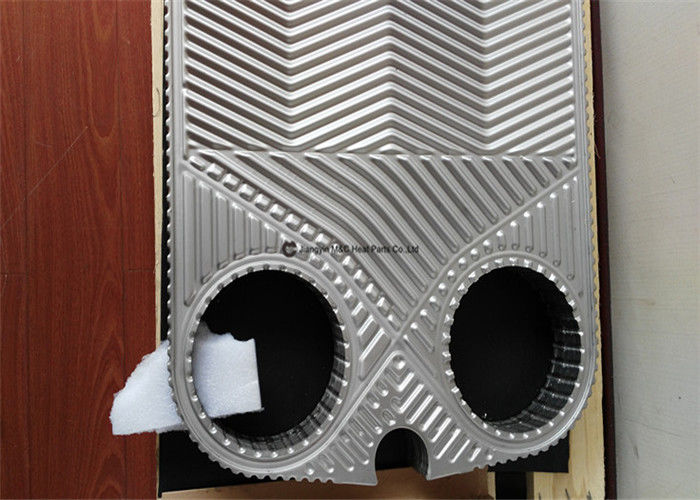

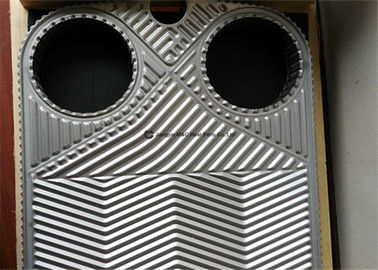

Sigma 48 Plate Description
Flexible and Diversified plate design
The flexible and diversified corrugation design of our plates makes PHE become perfect match for the mordern industry.Our plates’ corrugation can be adjusted to various demands of industrial products.
Improve heat exchanging effiiency
Our high-efficient heat exchanger plate can help effectively improve the PHE and the systematic performance to make it more energy -conservative with lower operation cost.
| Product Name | PHE plate |
| Material | SS304/SS316/Ti/Hastelloy/254SMO |
| Plate thickness | 0.5/0.6/0.8/1mm |
| Fluid media | Water,River water,Edible oil,Mineral oil,Brine,Seawater,Chioride etc |
| Maximum working pressure | 4.5Mpa |
| Weight | 5-500kg |
| Application | HVAC,Marine,Food,Chemical,Powerplant |
| Packing | Ply-wooden or according to your request |
| Warranty | 12 months |
Sigma 48 Channel Arrangement
Professional thermal software ensures the optimal performance according to different requirement.
High theta channel arrangement(H+H):for higher thermal performance and allowable pressure drop requirement applications.
Low theta channel arrangement(L+L):for lower allowable pressure drop requirement application.
Mixed channel arrangement(H+L/H+M/M+L):optional arrangement to gain the optimized performance.
| Material of Plate | Suited liquid Kinds |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc |
| Ni | High-temp and concentration caustic soda |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid |
|
Technical Advancement of plate &Gaset. Very high heat transfer rates due to thermodynamically optimized design. Corrugation fields with “off-set”embossing allow for symmetrical and asymmetrical flow gaps. Specially embossed entry fields for anoptimum distribution of media. Gaskets fastened by”Clip-system”for easy maintenance. Gaskets have a special ribbed surface,enabling more exact centering and stabilization of the entire plate pack. Double gasket with leakage groove between two medias,preventing mixing of the media. Special plate profile at the edges,reinforcing the plate pack and ensuring high pressure resistance of the gasket during operation. |
|
Our Advantage
EXCELLENT QUALITY LONG-TERM TECHNICAL SUPPORT
We supply service from PHE assembling to technical consultation.We have built a long service relationship with customers since the order confirmed.
