Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Heat Exchanger Pads Detachable Oil Resistant Nitrile Butadiene M10M Factory Open Mould | Gasket Material: | Viton |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Plate Material: | Stainless Steel, 316304, Nickel Plate |
| Application: | Liquid To Liquid Heat Exchanging | Weight: | 150g |
| Highlight: | GXP12 Heat Exchanger Gaskets,Milk Industry Heat Exchanger Gasket,Heat nickel plate Exchanger Gasket |
||
PHE Function
Plate heat exchanger is a heat continuous transmission from one medium to another medium energy without increasing process of the device. The basic concept of plate and frame type heat exchanger is in thin corrugated metal plate on both sides of the two kinds of liquid flows, so you can easily transfer heat between the two.
PHE Structure
M&C plate heat exchanger is composed of a certain number of gaskets, they fixed between the top bearing bar and lower guide rod. Plate with fixed frame plates (head) and movable framework (follower) the connection between the rod is compressed. Connect the fluid through the framework into the plate heat exchanger and distribution between the plates. Through board alternate between channel flow control by place the gasket. These can be single line and multiple lines arrangement, depends on the application.
PHE Specifications
| Plate Material | SS304 SS316L Titanium SMO254 C276 |
| Plate Thickness | 0.5/0.6/0.8/1.0mm |
| Gasket Material |
NBR (applicable temperature -15~120℃) HNBR (applicable temperature -15~160℃) EPDM (applicable temperature -25~150℃) HEPDM (applicable temperature -25~170℃) Viton/FKM (applicable temperature -5~220℃) NEOPREKE (applicable temperature -5~130℃) VNQ (applicable temperature -65~250℃) |
PHE Advantage
| Compact design | High thermal efficiency |
| De-mountable for cleaning and maintenance | Can have additional heat transfer plates added if required |
| Suitable for hygienic and industrial applications | Suitable for use with steam |
| Food-safe material | CIP system-adaptable |
| Simple cleaning | A quality product |
| Low maintenance costs | Long service life |
| Profile variations for highly effective flow relationships | Special plates for steam condensation |
| Advantageous price/Performance ratio | Friendly service |
| High operational safety | Compactness |
| High effectiveness | Wide-ranging application possibilities |
Production Introduction
Basic Information

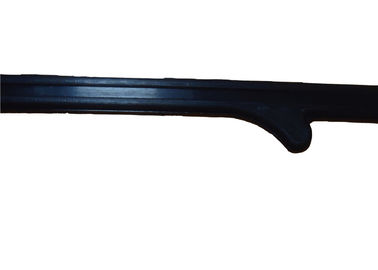

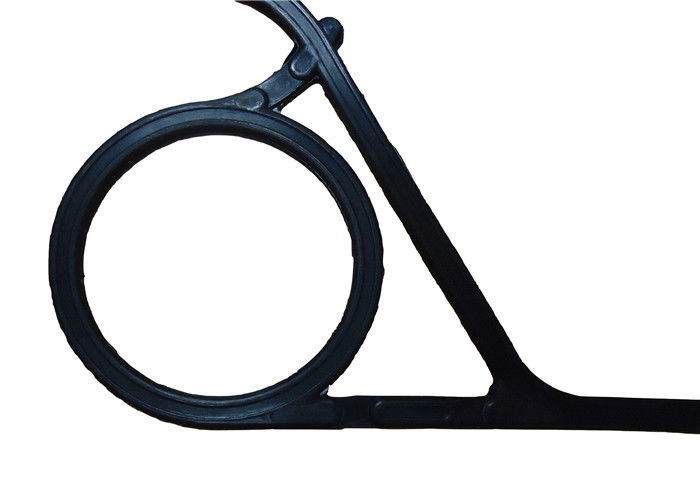

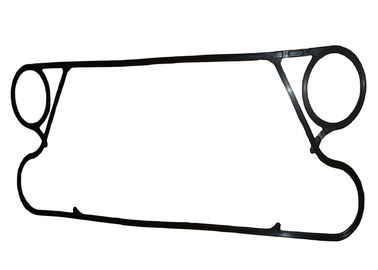

Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.
M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
