Product Details:
Payment & Shipping Terms:
|
| Plate Material: | Stainless Steel 316L/ 304, Titanium, SMO254, Nickel, Hastelloy | Plates Material: | EPDM/VITON/FKM |
|---|---|---|---|
| Install Type: | Glue/Hang-on/Clip-on/Snap-on/Sonderlock | Industry: | Chemical/Marine/Beverage/Food/Power/Heating/HVAC |
| Available Fluid: | Water,Acid,Steam,High-temperature Mineral Water Etc | Temperature Range: | -20 To 220 |
| High Light: | plate heat exchanger gaskets,marine heat exchanger gaskets |
||

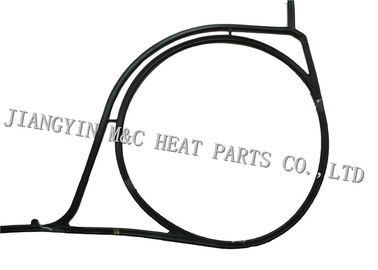

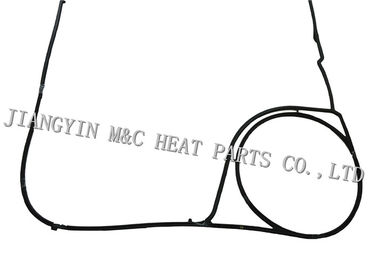

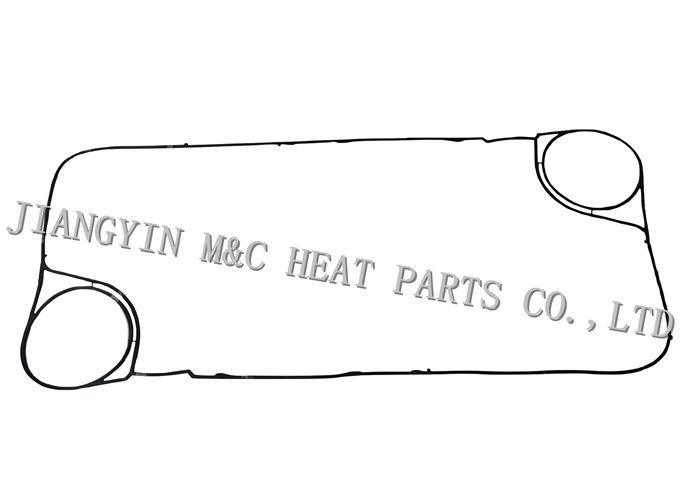

Heat Exchanger Rubber Gasket Material
| Material | Temperature Range | Operating Conditions |
| NBR gasket | ≤135℃ | Nonpolar media such as resistance to mineral, animal and vegetable oil |
| HNBR gasket | -5℃-150℃ | Sour crude oil resistant, containing H2S mixed dielectric, high temperature cooking oil and other nonpolar medium |
| EPDM gasket | ≤160℃ | Hot water, steam, food beverage, milk high-temperature sterilization |
| Solvnt EPDM gasket | -20℃-150℃ | Volume, and other good solvent polarity solvent such as lipids, inorganic acid and alkali, etc |
| General fluoro rubber gasket | ≤180℃ | Nonpolar mineral oil, lubricating oil containing alcohol fuel, etc |
| Special fluoro rubber gasket | -30℃-130℃ | High concentration of sulfuric acid and other inorganic oxyacid |
| Note: the above analysing all have corresponding food-grade gasket. | ||
PHE Product Advantages:
Application
Gasketed plate and frame heat exchangers provide efficient heat transfer in compact equipment with a small footprint. The units have a flexible design and easy to service and maintain. The product range is extremely wide and used in duties for many industires, Such as:
| Heating | Cooking |
| Cooling | Freezing |
| Pasteurising | Central HVAC |
| Water Heaters | Ancillary Cooling |
| Waste Heat Recovery | Cooling Tower Isolation |
| Heat Pump Installations | Boiler Sepatation Plates |
| Lube Oil Coolers( Turbines) | Thermal ( Ice) Storage Systems |
| Seal Water Coolers ( Vacuum Pumps) | Gearbox Oil Cooling (Wind Turbines) |
| Heating, Ventilating & Air Condition | Industrial Process Liquid Heating and Cooling |
| Concentration in the Food and Dairy Industries | Ground Water Isolation Exchangers( Geothermal) |
| Pharmaceutical-Hygienic Water Heating/Cooling | Brewing-Wort Cooling, Beer/Large/ Cider Condition |
| Chemical Heating and Cooling, Either in-line or on a Batch Process | Food & Dairy- Specialist in milk pasteuring, raw milkcooling, non viscous food products and CIP wash water heating |
| Marine-(Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating | |
