Product Details:
Payment & Shipping Terms:
|

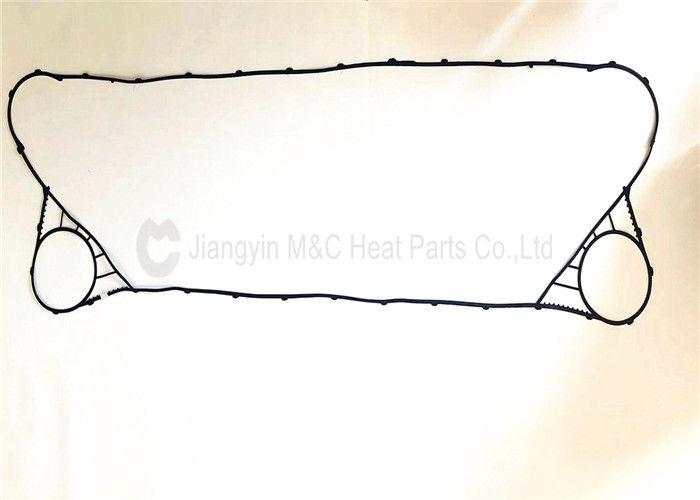

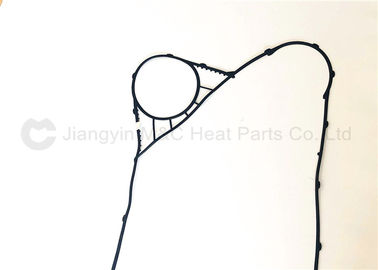

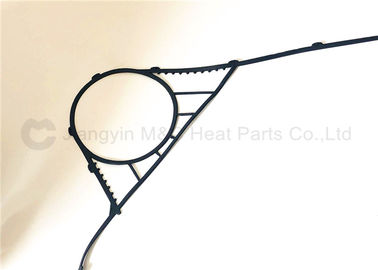

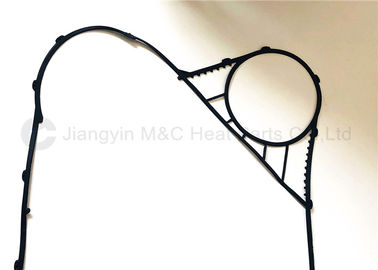

| Product Name: | Plate Insulation Gasket | Material: | EPDM, SBR Etc |
|---|---|---|---|
| Type: | Plate Heat Exchanger Spare Parts, Clip-in,Loc-in, And Glue-on | Shape: | Flat Gasket |
| Application: | HVAC,Power Generation,Food&Beverage Industry Etc | Application Temperature: | -20℃+110℃ |
| Highlight: | funke heat exchanger gaskets,heat transfer plates |
||
Product Details
1. Diverse Plate Models
We have almost 150 models for detachable plate heat exchanger. The plate angle is distinguished between high theta and low theta, chevron is divided into shallow groove. Deep groove and super-deep groove which can be assembled to narrow passage PHE, wide passage PHE and super-wide passage PHE in order to be applied in different fields and fluids.
2.Unique Plate Design
We design efficient heat transfer plate based on super tinny digital precise measuring and test method. The unique chevrons of plates along with reasonable plate mould design improve heat transfer efficiency.
3.Mix Design
M&C plates with H theta and L theta which can achieve the thermal mix design.
High heat transfer performance and pressure drop
Lower heat transfer performance and pressure drop.
Specifications
| Plate Material | SS304 SS316L Titanium SMO254 C276 |
| Plate Thickness | 0.5/0.6/0.8/1.0mm |
| Gasket Material |
NBR (applicable temperature -15~120℃) HNBR (applicable temperature -15~160℃) EPDM (applicable temperature -25~150℃) HEPDM (applicable temperature -25~170℃) Viton/FKM (applicable temperature -5~220℃) NEOPREKE (applicable temperature -5~130℃) VNQ (applicable temperature -65~250℃) |
Our Service
1. Inquiry and consulting support.
2. Sample testing support.
3. Visit our Factory.
After-sales Service
1. Training how to install the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
