Adaptable Viton Gasket Attachable Food Grade With Support Foot FP120

Plate Heat Exchanger Construction

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.

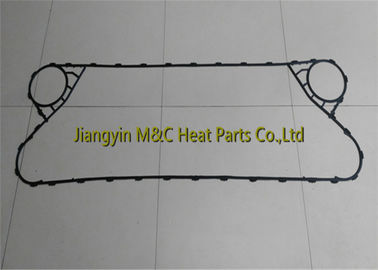

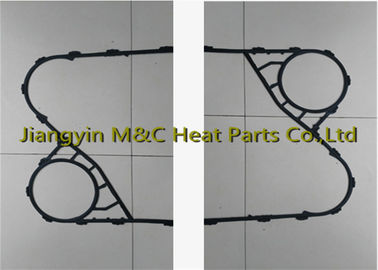

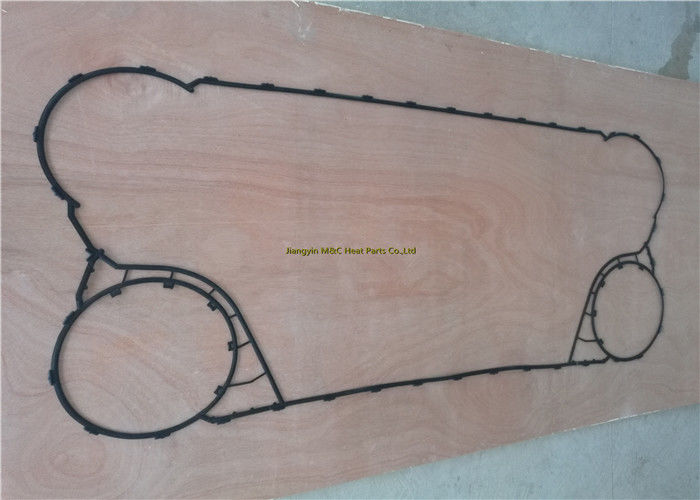

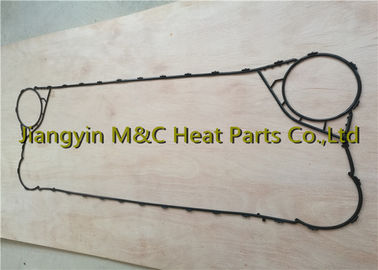

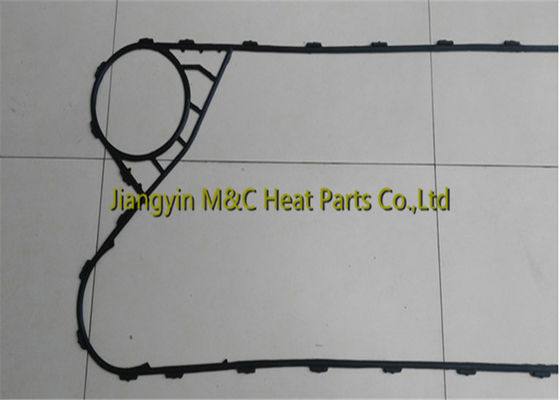

PHE Gasket

The PHE sealing gasket are pasted on the corrugated plates.They are designed into 2-pass seal structure with signal holes.When the media leaks from the 1^st sealing,if it comes out from the signal hole.You will find out problems in time and deal with them.No media mixing up ocures,and it do not let the medias mixed.The seal gaskets are made by different kinds of rubber adapted to different medias and operating temperatures.

Material & Application

Trade Information

Trading Terms:FOB,CIF,EXW
Payment Terms:T/T,L/C
Payment Condition:30% deposit in advance,70% balance after delivery
Delivery Time:Within 15-45 days after deposit and confirm everything
Packing:inner anti-collision broken plastic,outer wooden case
