Product Details:
Payment & Shipping Terms:
|
| Type: | PHE Gasket | Gasket Material: | Viton/FKM/EPDM |
|---|---|---|---|
| Application: | Heater Parts | Available Fluid: | Water,Acid,Steam,High-temperature Mineral Water Etc |
| Temperature Range: | -20 To 220 | After-sales Service: | Field Maintenance And Repair Service,Online Support |
| High Light: | funke heat exchanger gaskets,heat transfer plates |
||
Plate Heat Exchanger Construction
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.

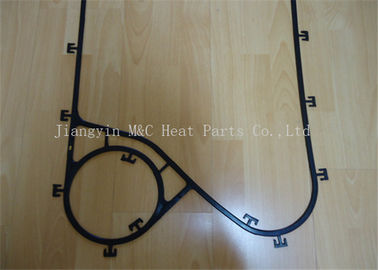

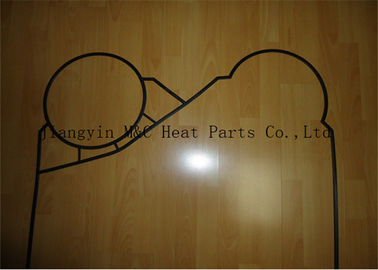

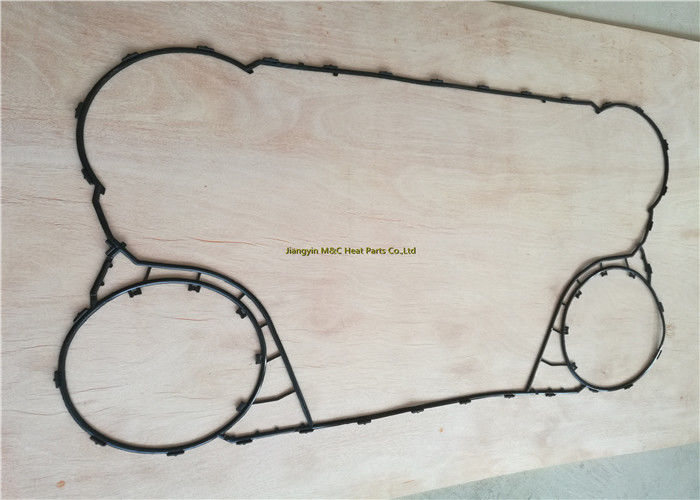

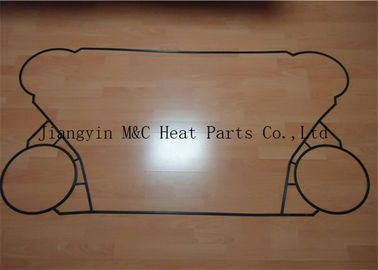

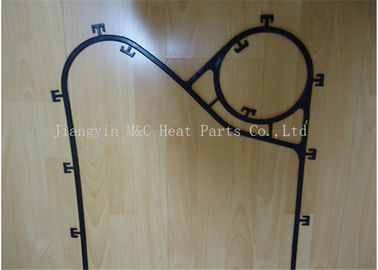

PHE Gasket
The PHE sealing gasket are pasted on the corrugated plates.They are designed into 2-pass seal structure with signal holes.When the media leaks from the 1st sealing,if it comes out from the signal hole.You will find out problems in time and deal with them.No media mixing up ocures,and it do not let the medias mixed.The seal gaskets are made by different kinds of rubber adapted to different medias and operating temperatures.
Material & Application
| Plate Material | Suited Liquid Kinds |
| Stainless Steel(AISI304,AISI314) | Pure water,Normal water,Edible Oil,Mineral Oil |
| Ti/Ti-pd | Sea water,Saline water,Mineral water |
| Hastelloy alloy | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid |
| Nickel | High-temp and concentration caustic Soda |
| SMO254 | Acid,Dilute Sulphuric |
| Gasket material | Operating Temperature | Suited Liquid Kinds |
| NBR | -15--- +120℃ | Water,Sea water,Mineral Oil,Salty Water |
| EPDM | -25--- +140℃ | Hot water,Steam,Acid,Caustic |
| Fuorine Rubber | -5--- +200℃ | Ammonia,Mineral Oil,and Lubricant |
| Silicon Rubber | -65--- +180℃ | Food,Oil,Adipose alcohol |
| Frame Material | Standard | Special purpose |
| Carbon steel | Stainless steel | |
| Interface | Q235/304/316L | Hastelloy alloy/Ti |
Trade Information
Trading Terms:FOB,CIF,EXW
Payment Terms:T/T,L/C
Payment Condition:30% deposit in advance,70% balance after delivery
Delivery Time:Within 15-45 days after deposit and confirm everything
Packing:inner anti-collision broken plastic,outer wooden case
