Product Details:
Payment & Shipping Terms:
|

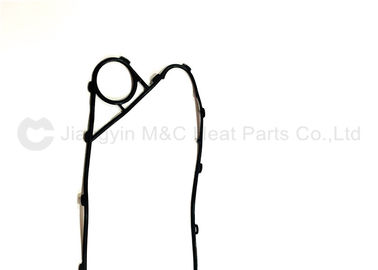

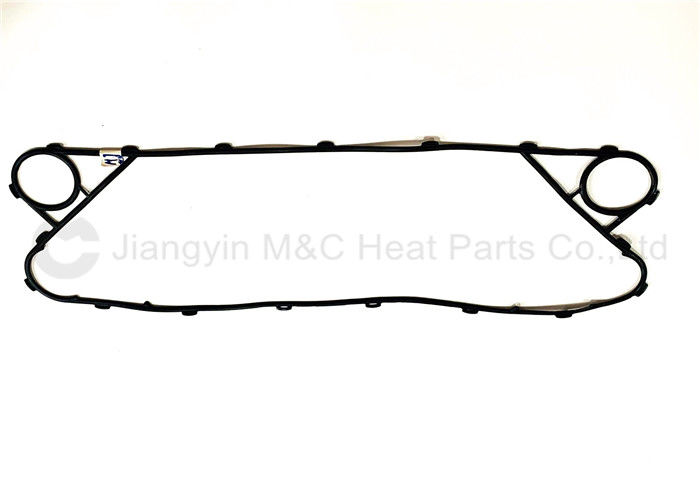

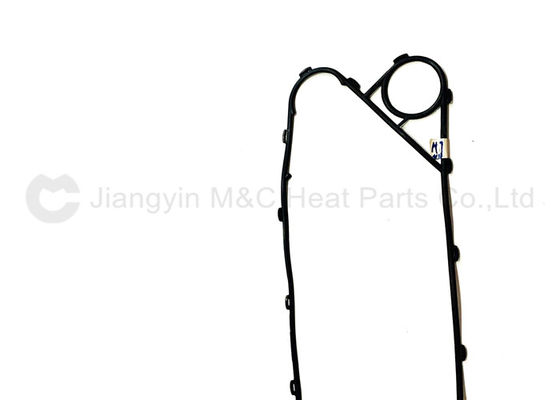

| Product Name: | Plate Insulation Gasket | Material: | NBR, EPDM, SBR Etc |
|---|---|---|---|
| Type: | Plate Heat Exchanger Spare Parts, Clip-in,Loc-in, And Glue-on | Application: | HVAC,Power Generation,Food&Beverage Industry Etc |
| Application Temperature: | -20℃+110℃ | Feature: | High Temperature Resistance |
| High Light: | industrial heat exchanger gaskets,heat transfer plates |
||
Plate Heat Exchanger Construction
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.
Application
Gasketed plate and frame heat exchangers provide efficient heat transfer in compact equipment with a small footprint. The units have a flexible design and easy to service and maintain. The product range is extremely wide and used in duties for many industires, Such as:
| Heating | Cooking |
| Cooling | Freezing |
| Pasteurising | Central HVAC |
| Water Heaters | Ancillary Cooling |
| Waste Heat Recovery | Cooling Tower Isolation |
| Heat Pump Installations | Boiler Sepatation Plates |
| Lube Oil Coolers( Turbines) | Thermal ( Ice) Storage Systems |
| Seal Water Coolers ( Vacuum Pumps) | Gearbox Oil Cooling (Wind Turbines) |
| Heating, Ventilating & Air Condition | Industrial Process Liquid Heating and Cooling |
| Concentration in the Food and Dairy Industries | Ground Water Isolation Exchangers( Geothermal) |
| Pharmaceutical-Hygienic Water Heating/Cooling | Brewing-Wort Cooling, Beer/Large/ Cider Condition |
| Chemical Heating and Cooling, Either in-line or on a Batch Process | Food & Dairy- Specialist in milk pasteuring, raw milkcooling, non viscous food products and CIP wash water heating |
| Marine-(Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating |
Advantage
| Compact design | High thermal efficiency |
| De-mountable for cleaning and maintenance | Can have additional heat transfer plates added if required |
| Suitable for hygienic and industrial applications | Suitable for use with steam |
| Food-safe material | CIP system-adaptable |
| Simple cleaning | A quality product |
| Low maintenance costs | Long service life |
| Profile variations for highly effective flow relationships | Special plates for steam condensation |
| Advantageous price/Performance ratio | Friendly service |
| High operational safety | Compactness |
| High effectiveness | Wide-ranging application possibilities |
PHE Gasket and Plate Material
| Gasket Material | Temperature(℃) | Fluid |
| Viton/FKM | -5 ---------+180 | Acid,Alkali Fluid |
| HNBR | -15--------+160 | High-temperature mineral water/oil, High-temprature water |
| NBR | -15--------+110 | Water,Sea water, Mineral smoke water |
| EPDM | -25-------- +170 | Hot water, steam,Acid, Alkali |
| Plate Material | Fluid |
| Hastelloy (C276,D205,B2G) | Concentrated sulfuric acid, Hydrochloric,Phosphoric acid |
| Titanium | Sea water,Salt water, Salt compounds |
| Nickel | High-emperature, high-concentration caustic soda |
| 20 Cr,18Ni6Mo(254SMO) | Dilute sulfuric,Aqueous salt solution, Inorganic water solution |
| Stainless Steel (AISI304,AISI316) | Water,Steam,Lubricants |
