Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Heat Transfer Spare Parts | Material: | EPDM |
|---|---|---|---|
| Apply Mechanical: | Chemical And Mechanical | Transfer Area: | 0.31㎡ |
| Application: | Liquid To Liquid Heat Exchanging | Dimension: | Centre To Centre: 1050mm*192mm |
| High Light: | Electric Sondex Heat Exchanger Gasket,0.31㎡ Sondex Heat Exchanger Gasket,EPDM Sondex Gasket |
||

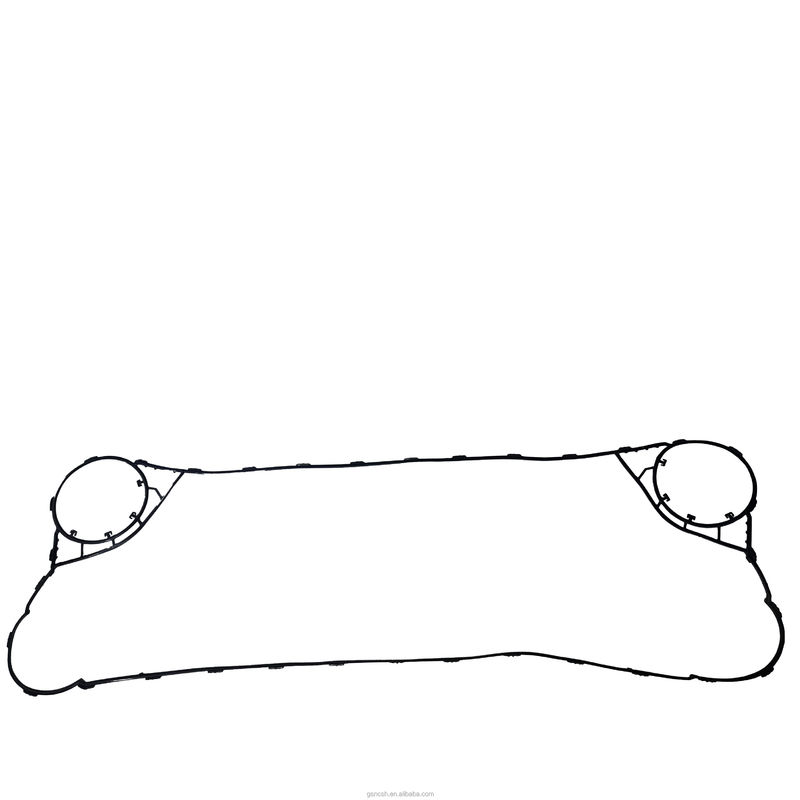

Superior Electric Water Heat Exchanger S31A Sondex Heat Exchanger Gasket
Gasketed Plate Heat Exchanger
The plate heat exchanger realizes the sealing between plates through the sealing gasket, which prevents the leakage of fluid and can bear certain pressure. At the same time, the two kinds of media flow through their own channels through the sealing gasket, without mixing with each other. Therefore, the quality of the gasket plays a very important role in the use quality of the plate heat exchanger. The ability of the plate heat exchanger to bear internal pressure and the degree of temperature resistance are basically determined by the gasket.
|
Brand
|
Model
|
|||
|
Sondex
|
S4A,S8A,S7A,S14A,S20A,S16B,S9A,S19A,S31A,S17,S21,S21A,S22,S37,S41,S41A,S42,S63,S43A,S43,S65,S100,S47,S64,S81,S121,S188,S62,S110,S113G,S201G,SF160,SF123,SFD22,S130stick,S100stick,S65stick,S43stick
|
|||
| Material of Gasket | Operating Temperature(℃) | Suited Liquid kinds |
| NBR | -15 to +135 | Water,sea water etc |
| EPDM | -25 to +180 | Hot water,steam etc |
| F26 | -55 to +230 | Acid,Caustic,Fluid |
| TPF | 0 to +160 | Concentrated acid etc |
Product advantage
1, Reliable quality,lower price
2, Fast delivery
3, Fully fit for plate heat exchanger
PHE Principle
Flat plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids.This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. This high heat transfer efficiency for such a small physical size has increased the domestic hot water(DHW) flow rate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water.Larger commercial versions use gaskets between the plates.
Payment and Shipping
Payment
Standard payment terms: 100% in advance.
Pay 30% deposit in advance, 70% balance before shipment.
More payment terms could be provided (T/T, WESTERN UNION)
Shipping
Delivery time: 5-8 working days after payment receipt confirmed (based on actual quantity)
Packing: standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Why choose us
Strict QC system
Professional team
Competitive price
Fast delivery
Good after-sales service
