Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plate Heat Exchanger Parts | Material: | Rubber,NBR,EPDM |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Heat Exchanging |
| Dimension: | Centre To Centre: 719mm*225mm | Transfer Area: | 0.21㎡ |
| High Light: | Sondex Heat Exchanger Gasket High Pressure,S21A Heat Exchanger Gasket,Steam Heat Exchanger Gasket |
||

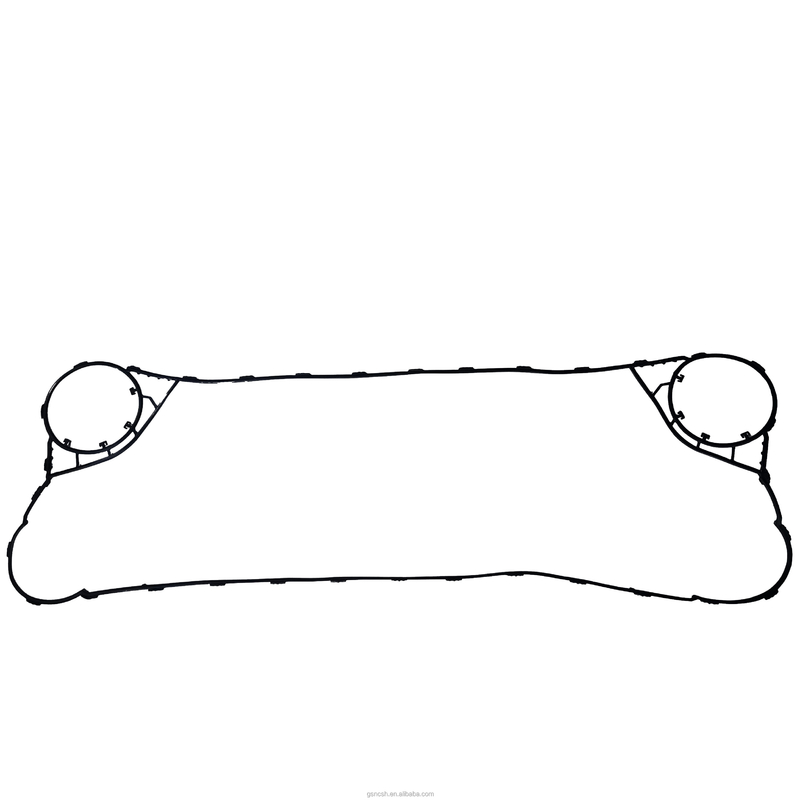

S21A Superior High Pressure Steam Plate Heat Exchanger Gasket
Our gaskets using advanced rubber formulations and renowned vendors, and then by a well-known professional engineer rubber ingredients, produced by the gasket without any pungent odor, consistent product standard. Using oil heating curing, ensuring a smooth temperature vulcanized rubber. After a curing gaskets and leading international technology secondary sulfide, ensuring better performance of the gasket.
|
Material of Gasket
|
Operating Temperature Range
|
Suited Liquid Kinds
|
|
NBR
|
-15~+135° C
|
Water, Sea Water, Mineral Oil, Salty Water
|
|
EPDM
|
-25~+180° C
|
Hot Water, Steam, Acid, Caustic
|
|
FPM
|
-55~+160° C
|
Acid, Caustic, Fluid
|
|
VG
|
0~+180° C
|
Concentrated Acid, Caustic, High-temperature Oil, Steam
|
Feature
A: Simple style and good sealing
B: Widely used and adaptable
C: Resistant to corrosion and high temperature
D: Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range(℃) | Hardness | Available Fluid |
| NBR | -20 to 110 | -75+/-3 | Water,Oil,Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam,Ammonia,Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil,Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High-Temperature Water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Application
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
