| Product Name: | Heat Exchanger Heat Exchanger Pads Detachable Oil Resistant Nitrile Butadiene A10B Factory Open Mould | Apply Mechanical: | Chemical And Mechanical |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Heat Exchanging |
| Dimension: | Centre To Centre: 1080mm*480mm | Transfer Area: | 0.81㎡ |
| High Light: | Heat Exchanger Rubber Gasket Sondex Plate,1080 mm*480 mm Rubber Gasket Sondex Plate,AISI 304 Rubber Gasket Sondex Plate |
||

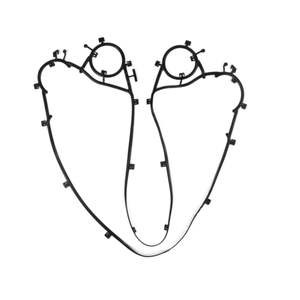

SONDEX Plate Heat Exchanger Rubber Gasket For Chemical Industry
| Material of Plate | Suited Liquid Kinds | ||
| Stainless Steel (SUS304. 316 Etc) | Pure Water, Normal Water, Oil for eating, Mineral Oil | ||
| Ti, Ti-pd | Sea Water, Saline Water, Mineral Water | ||
| 20Cr, 18Ni, 6Mo (254SMO) | Dilute Sulphuric Acid, Organic Water Solution | ||
| Ni | High-temp and concentration caustic soda | ||
| Hastelloy (C276, D205, B2G) | Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid | ||
| Material of Gasket | Operating Temperature ° C | Suited Liquid Kinds | |
| NBR | -15~+135° C | Water, Sea Water, Mineral Oil, Salty Water | |
| EPDM | -25~+180° C | Hot Water, Steam, Acid, Caustic | |
| F26 | -55~+230° C | Acid, Caustic, Fluid | |
| TPF | 0~+160° C | Concentrated Acid, Caustic, High-temperature Oil, Steam | |
After-sales service
1. M&C has experienced emergency repair team which enables us to provide on-time maintenance.
2. Within warranty period,M&C will provide free maintenance for any break up due to importer wrong operation or natural damage.Materials and parts for maintenance are charged only with lowest cost.
3. We will trace the operation of our product and record the feedback from our customers.
