Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger | Apply Mechanical: | Chemical And Mechanical |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Hert Exchanging |
| Dimension: | Centre To Centre: 381mm*70mm | Transfer Area: | 0.04㎡ |

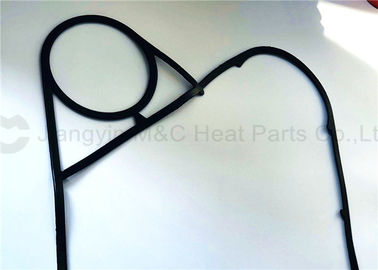

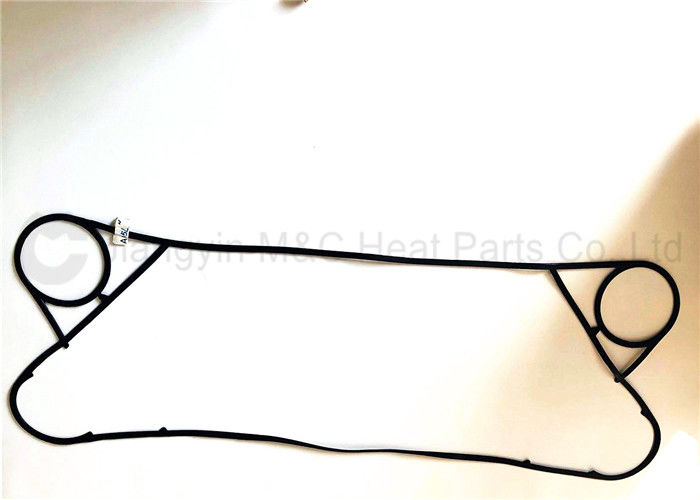

| Highlight: | heat exchanger spares,marine heat exchanger gaskets |
||
| Heating | Cooking |
| Cooling | Freezing |
| Pasteurising | Central HVAC |
| Water Heaters | Ancillary Cooling |
| Waste Heat Recovery | Cooling Tower Isolation |
| Heat Pump Installations | Boiler Sepatation Plates |
| Lube Oil Coolers( Turbines) | Thermal ( Ice) Storage Systems |
| Seal Water Coolers ( Vacuum Pumps) | Gearbox Oil Cooling (Wind Turbines) |
| Heating, Ventilating & Air Condition | Industrial Process Liquid Heating and Cooling |
| Concentration in the Food and Dairy Industries | Ground Water Isolation Exchangers( Geothermal) |
| Pharmaceutical-Hygienic Water Heating/Cooling | Brewing-Wort Cooling, Beer/Large/ Cider Condition |
| Chemical Heating and Cooling, Either in-line or on a Batch Process | Food & Dairy- Specialist in milk pasteuring, raw milkcooling, non viscous food products and CIP wash water heating |
| Marine-(Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating |
Plate Heat Exchanger Construction
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.
Material of PHE gasket and plate
M&C Heat Exchanger include Plate Heat Exchanger, Brazed Heat Exchanger, Heat Exchanger Spare Parts,and the material of gasket and plate are as follows:
| Gasket Material | Temperature(℃) | Fluid |
| Viton/FKM | -5 ---------+180 | Acid,Alkali Fluid |
| HNBR | -15--------+160 | High-temperature mineral water/oil, High-temprature water |
| NBR | -15--------+110 | Water,Sea water, Mineral smoke water |
| EPDM | -25-------- +170 | Hot water, steam,Acid, Alkali |
| Plate Material | Fluid |
| Hastelloy (C276,D205,B2G) | Concentrated sulfuric acid, Hydrochloric,Phosphoric acid |
| Titanium | Sea water,Salt water, Salt compounds |
| Nickel | High-emperature, high-concentration caustic soda |
| 20 Cr,18Ni6Mo(254SMO) | Dilute sulfuric,Aqueous salt solution, Inorganic water solution |
| Stainless Steel (AISI304,AISI316) | Water,Steam,Lubricants |
