Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heat Exchanger Heat Exchanger Pads Detachable Oil Resistant Nitrile Butadiene A10B Factory Open Mould | Apply Mechanical: | Chemical And Mechanical |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Heat Exchanging |
| Dimension: | Centre To Centre: 719mm*225mm | Transfer Area: | 0.21㎡ |
| Highlight: | heat exchanger spares,marine heat exchanger gaskets |
||

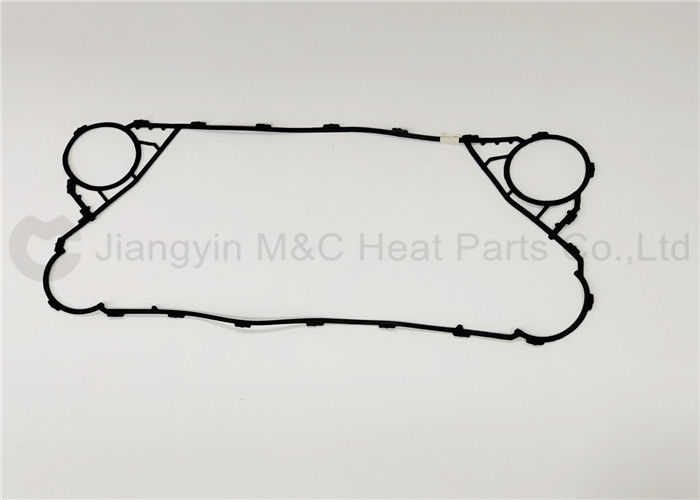

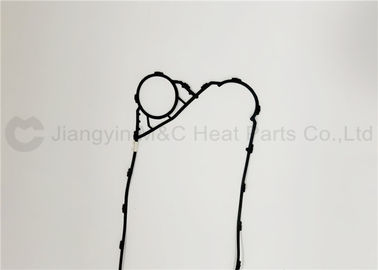

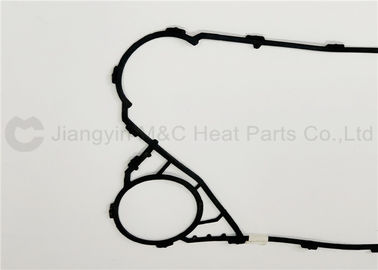

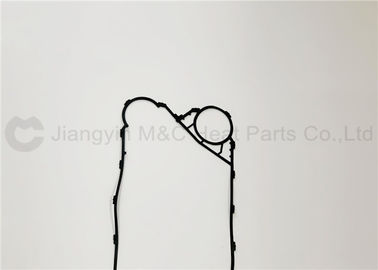

Customized Heat Exchanger Spare Parts Certain Strength Narrow Sealing Surface S21
Basic information of gasket
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
Product information
Brand name :M&C
Material: NBR,EPDM
Advantage: produce plastic deformation and have certain strength.
Feature
A: Simple style and good sealing
B: Widely used and adaptable
C: Resistant to corrosion and high temperature
D: Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range(℃) | Hardness | Available Fluid |
| NBR | -20 to 110 | -75+/-3 | Water,Oil,Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam,Ammonia,Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil,Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High-Temperature Water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Application
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration
