| BProduct Name: | Heat Parts | Apply Mechanical: | Chemical And Mechanical |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Heat Exchanging |
| Dimension: | 992mm*476mm | Transfer Area: | 0.35㎡ |
| Highlight: | heat exchanger spares,marine heat exchanger gaskets |
||
Food Grade Spare Parts Cost Effective Rubber NBR EPDM Material S35
Product Details

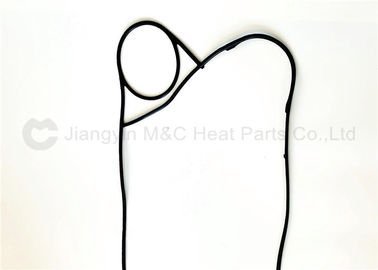

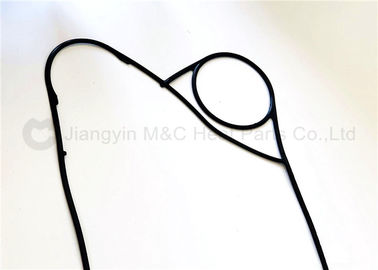

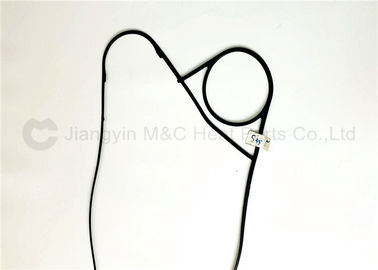

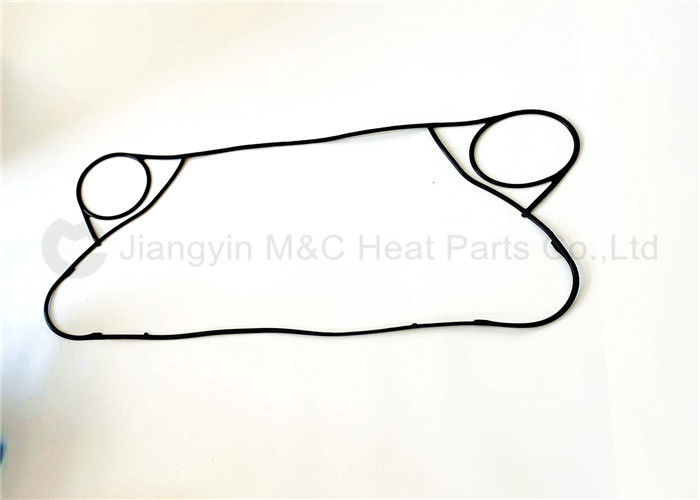

The gasket of the plate heat exchanger mainly serves to seal between the heat exchange plates. The materials are: nitrile rubber, EPDM rubber, fluorine rubber, etc. Different rubbers are used according to different media. The rubber pad is flexible, which is good for sealing and easy to disassemble! Each pad is designed according to the shape of each heat exchanger plate, which has a very good sealing!
We could supply you PHE and Spare Parts with high quality and super-low price!
| Rubber Type | NBR | EPDM | VITON/FKM | HNBR |
| Application Temperature | -20°C- +130°C | -50°C-+150°C | -30°C-+251°C | -15°C- +160°C |
| Fluid Media |
Water Sea water Mineral oil Salt brine |
Hot water Steam Acid Alkali |
High temperature resistance Strong oxidants Oil Acid and alkali |
High temperature mineral oil and water |
| Feature | Easier to replace than the traditional gasket, high pressure, high temperature, longer life, should not be leaked | |||
Packing and shipping
FAQ
1. How to contact with us?
Answer: * 24hours online from TradeManager, quick answer, or email with us, whatsapp, viber is available.
* Select one product and leave message to us.
2. How to purchase the products which you want?
Answer: * Choose one product which you are interested and leave message
* Or Inform us your request for brand and model no
* Or inform us your detailed request including dimension, weight,material,we can recommend to you.
MOQ can be offered for you reference.
3. How to confirm the quality before place the order?
Answer: * sample can be provided for your testing before order.
* If you are in China, warmly welcome you visit our factory, check the quality, meanwhile welcome to visit our office for reference.
4. How about the after-sale services ?
Answer: * If any problems after receiving the bulk goods, please do not hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
Advantage
| Compact design | High thermal efficiency |
| De-mountable for cleaning and maintenance | Can have additional heat transfer plates added if required |
| Suitable for hygienic and industrial applications | Suitable for use with steam |
| Food-safe material | CIP system-adaptable |
| Simple cleaning | A quality product |
| Low maintenance costs | Long service life |
| Profile variations for highly effective flow relationships | Special plates for steam condensation |
| Advantageous price/Performance ratio | Friendly service |
| High operational safety | Compactness |
| High effectiveness | Wide-ranging application possibilities |
