Product Details:
Payment & Shipping Terms:
|
| BProduct Name: | Heat Parts | Apply Mechanical: | Chemical And Mechanical |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Liquid To Liquid Heat Exchanging |
| Dimension: | 992mm*476mm | Transfer Area: | 0.35㎡ |
| High Light: | Sondex Heat Exchanger Gasket,Chemical Sondex Heat Gasket,Sondex Replacement Marine Cooler Plate |
||

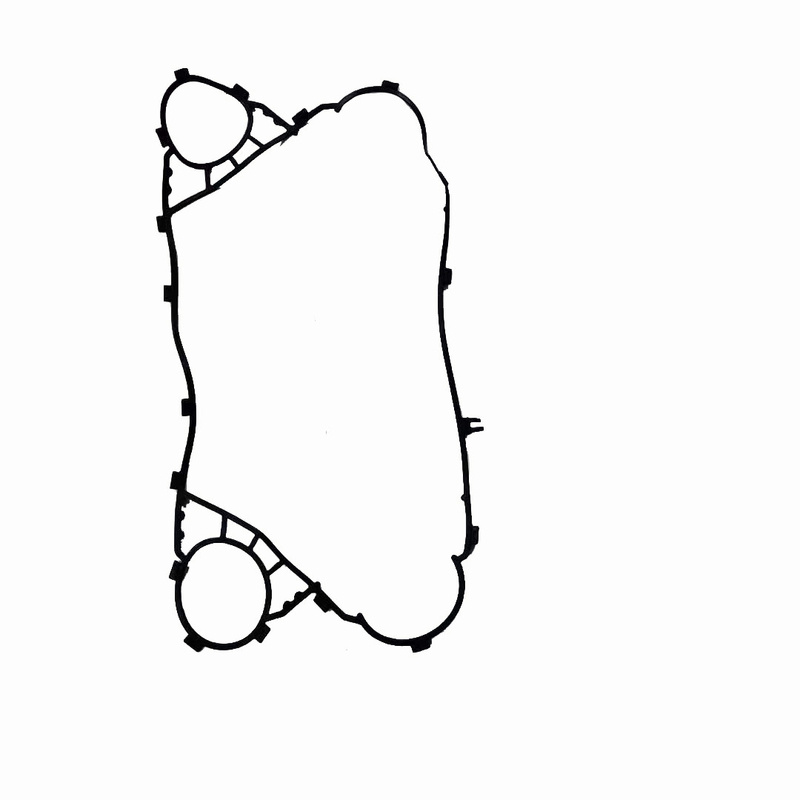

SONDEX S100 Replacement Marine Cooler Plate Heat Exchanger Gasket
Product Details
SONDEX: S4A, S7, S7A, S8A, S9A, S14A, S15, S18, S19A, S20, S20A, S21, S21A, S22, S30, S31A, S35, S37, S38, S39, S41, S42, S43, S47, S50, S60, S62, S64, S65, S81, S83, S100, S110, S113, S120, S121, S130, S187, S188, SR95, SFD13, SFD23
The gasket of the plate heat exchanger mainly serves to seal between the heat exchange plates. The materials are nitrile rubber, EPDM rubber, fluorine rubber, etc. Different rubbers are used according to different media. The rubber pad is flexible, which is good for sealing and easy to disassemble! Each pad is designed according to the shape of each heat exchanger plate, which has very good sealing!
We could supply you with PHE and Spare Parts with high quality and super-low prices!
|
Gasket
material
|
Temperature Range (℃)
|
Corrosion Resistance
|
|
NBR
|
-20~110
|
It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
|
|
HNBR
|
-20~ 165
|
It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
|
|
EPDM
|
-50~ 150
|
Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc..
|
|
H-EPDM
|
-20~ 165
|
Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
|
|
S-EPDM
|
-20~ 130
|
Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
|
|
Viton
|
-40~ 180
|
Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc.
|
|
Chloroprene rubber(CR)
|
-50~ 100
|
It is resistant to dilute non oxidizing acid and alkali.
|
|
Silicon
|
-65~ 230
|
Corrosion resistant to dilute acid, alkali and brine.
|
|
Compressed fiber(AFM34 SIL-4400)
|
260
|
Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons.
|
|
PTFE
|
-200~ 260
|
It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia).
|
| Rubber Type | NBR | EPDM | VITON/FKM | HNBR |
| Application Temperature | -20°C- +130°C | -50°C-+150°C | -30°C-+251°C | -15°C- +160°C |
| Fluid Media |
Water Sea water Mineral oil Salt brine |
Hot water Steam Acid Alkali |
High temperature resistance Strong oxidants Oil Acid and alkali |
High temperature mineral oil and water |
| Feature | Easier to replace than the traditional gasket, high pressure, high temperature, longer life, should not be leaked | |||
Advantage:
Comparing to other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
Packing and shipping
FAQ
1. How to contact with us?
Answer: * 24hours online from TradeManager, quick answer, or email with us, whatsapp, viber is available.
* Select one product and leave message to us.
2. How to purchase the products which you want?
Answer: * Choose one product which you are interested and leave message
* Or Inform us your request for brand and model no
* Or inform us your detailed request including dimension, weight,material,we can recommend to you.
MOQ can be offered for you reference.
3. How to confirm the quality before place the order?
Answer: * sample can be provided for your testing before order.
* If you are in China, warmly welcome you visit our factory, check the quality, meanwhile welcome to visit our office for reference.
4. How about the after-sale services ?
Answer: * If any problems after receiving the bulk goods, please do not hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
Advantage
| Compact design | High thermal efficiency |
| De-mountable for cleaning and maintenance | Can have additional heat transfer plates added if required |
| Suitable for hygienic and industrial applications | Suitable for use with steam |
| Food-safe material | CIP system-adaptable |
| Simple cleaning | A quality product |
| Low maintenance costs | Long service life |
| Profile variations for highly effective flow relationships | Special plates for steam condensation |
| Advantageous price/Performance ratio | Friendly service |
| High operational safety | Compactness |
| High effectiveness | Wide-ranging application possibilities |
